JDSU OLTS-85 Quad Fiber Optic Loss Test System

JDSU OLTS-85 Fiber Loss Test Set

The VIAVI OLTS-85/85P handhelds are the industry’s fastest and easiest solutions for tier 1 fiber certification. These additions to our popular SmartClass Fiber family let technicians:

• Measure length
• Measure optical loss (two fibers, two wavelengths)
• Check polarity
• Inspect fiber end faces
• Generate certification reports

With SmartClass Fiber devices, technicians get ultimate flexibility and performance from a powerful, easy-to-use solution that can instantly turn any user into a fiber-smart technician. Cut testing and certification time in half and give customers confidence in their network quality at the push of a button with the SmartClass Fiber OLTS-85/85P.

Help Your Technicians Work Fiber Smart!

• Integrate fiber inspection and test for an efficient, easy-touse solution that promotes best practices for handling fiber
• Automate fiber inspection and Tier 1 loss measurements with pass/fail results that eliminate subjective guesswork
• Store test results, images, and user information from both local and remote units directly to the local device
• Follow best practices with features that incrementally step you through a proper test workflow

Optimize Workflow Efficiency with TimeSaving Features

Achieving optimized performance requires systematic and proactive methods that many technicians find troublesome, confusing, and time consuming. The OLTS85 overcomes these barriers by integrating essential tools together into a seamless system that is fast, portable, and easy.

• Using the probe microscope and patch-cord microscope helps technicians save valuable time with dedicated inspection capabilities for both the bulkhead and patch cord. Eliminate the need to change tips and cut the time to inspect in half!
• The LC Duplex PCM adapter slides side-to-side so both LC connectors in the duplex pair can be quickly inspected.
• Giving full control of the test set at both the local and remote ends lets users test and save results from either end of the test. This eliminates the need for additional technicians or for constantly walking backand-forth between local and remote test units.
• Sleep mode saves valuable battery life when the device is not being used. In addition, the instantactivation capability eliminates time-consuming startup cycles that are required with other devices

Make It Easier to Do Things Right—the First Time

Whether you are installing and certifying a new structured cabling build for your customer or managing your own company’s existing network; maintaining best practices is essential to ensure that your fiber infrastructure can support the demands of your data center or enterprise. For this reason, the OLTS-85 is designed with several automated capabilities that empower technicians to work smarter and faster!

• Create and store test setups with all relevant settings—fiber type, cable vendor, connectivity, reference method and limit settings—for easy recall. Save time and ensure consistent settings and results.
• The Input Select key guides users through an incremental step-by-step process that is easy, fast, and ensures that the job is done right the first time.

Inspect Fiber End Faces With Pass/Fail Analysis

Contaminated connectors are the #1 cause for troubleshooting in optical networks. This problem has driven the industry and International Electrotechnical Commission (IEC) to release IEC 61300-3-35, a global standard that establishes acceptance criteria for the quality and cleanliness of the fiber connector end face. This standard has been widely adopted and is incorporated into other standards including both TIA-568.3, ISO/IEC 11801.

Without the right tools, comparing fiber connectors to a standard or specification is difficult and time consuming; however, these challenges are eliminated with SmartClass Fiber tools. Whether using an industry standard or customerspecific requirements, the OLTS-85 makes it easy!

• Test and certify to industry standards without confusion
• Eliminate subjectivity from the measurement process with automated pass/fail analysis
• Get fast results from both local and remote devices
•  Instantly store both local and remote results on the local device
• Integrate results into your certification reports

Comprehensive, Easy-to-Use Test Data Management

Easily manage all of your test data with J-Reporter. This PCbased software is included with all Certifier models so that network technicians and managers can keep organized records of test data and generate reports. In addition to managing data from the Certifier, J-Reporter also supports other VIAVI test solutions including the OLTS-85, MPOLx, and OTDR traces from the VIAVI T-BERD® /MTS-2000 instrument.

Additional features include:

• Adding a company’s logo and name
• Reporting in summary or detail
• Creating hierarchies for record keeping

Integrates with CERTiFi cloud-based workflow management

CERTiFi is a cloud-based solution for teams who design, build, test, and certify the structured cabling in enterprise networks. With CERTiFi, team members establish alignment at every stage of their project—from creating design requirements and assigning tasks, to performing tests and analyzing project metrics in real time. Manage your projects with confidence and equip your team to succeed with CERTiFi.

• Manage your projects with confidence at every stage
• Align your team and project specs in one place
• Communicate job requirements clearly and in real-time
• Track project status and analyze results from anywhere
• Assign tasks directly to team members
• Deploy tasks directly to instruments with the CERTiFi mobile app

Specifications:

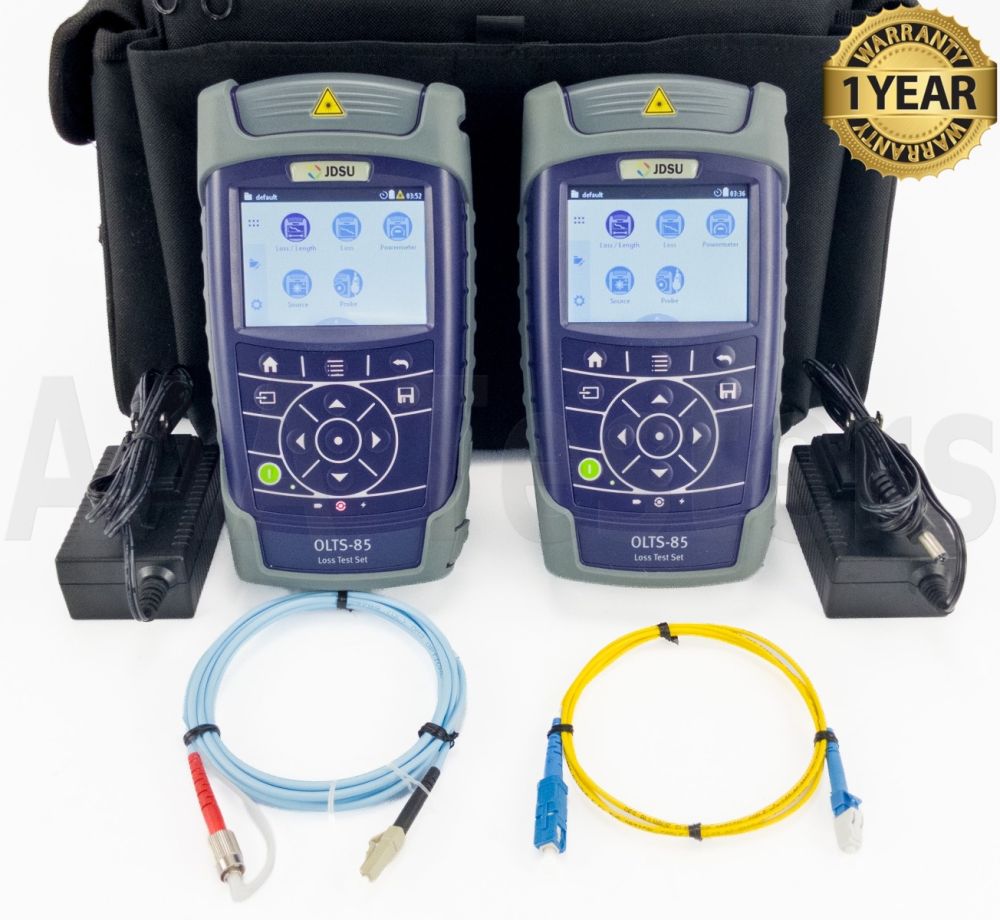

Set of 2 JDSU OLTS-85 SM 1310 / 1550nm MM 850 / 1300nm Quad Fiber Optical Loss Test Sets

The industry’s fastest and easiest solutions for tier 1 fiber certification

Includes Carrying Case & Accessories As Listed

OLTS85 OLTS 85

BC# -L/T*

JDSU OLTS-85 OLTS85 SM Fiber Optic Loss Test System Models On Sale Warranty Calibration Backed by The Best Service and Lowest Prices in the Industry.

• (2) JDSU OLTS-85 Quad Fiber Optical Loss Test Sets (BC# -L/T*)
  • SM Source:
    • 1310nm
    • 1550nm
  • MM Source:
    • 850nm
    • 1300nm
• (2) SM Fiber Cables
• (2) MM Fiber Cables
• USB PC Interface Cable
• AC Adapter/Charger
• Battery Pack
• User Manual On Cd-ROM
• Carrying Case
