JDSU Viavi OLS-35 Smartpocket SM Fiber Optic Laser Light Source
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide

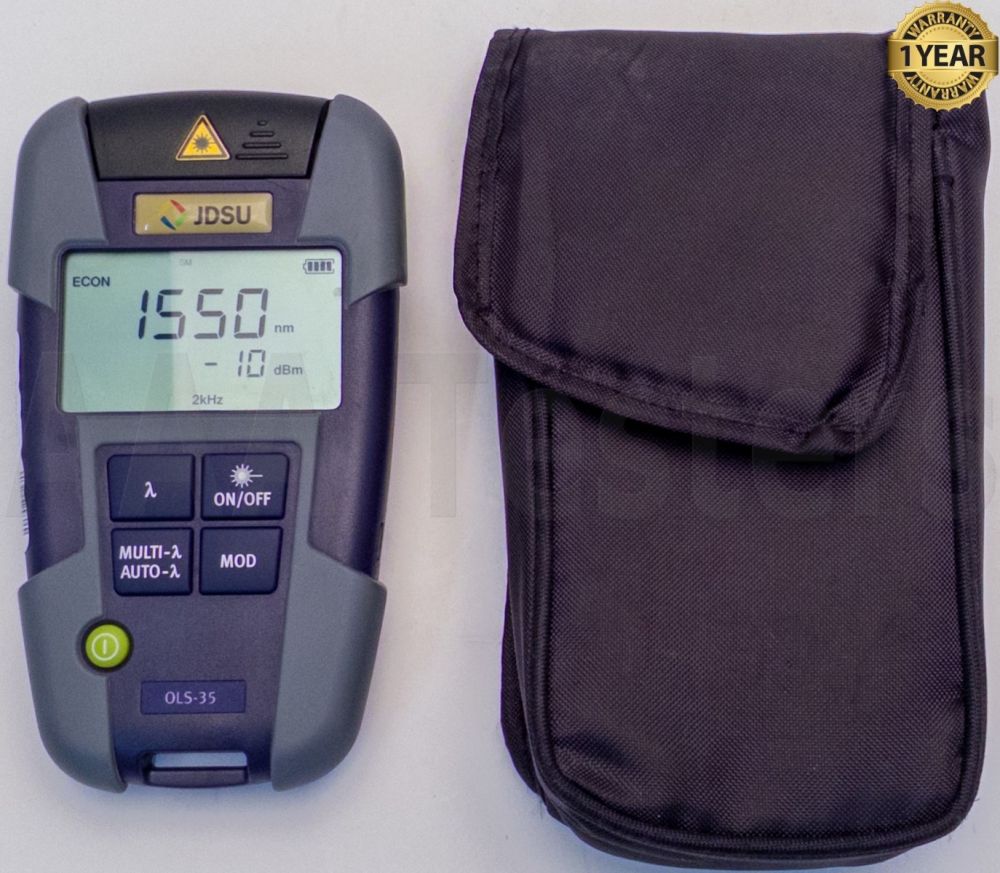

- JDSU Viavi OLS-35 Smartpocket SM Fiber Optic Laser Light Source (BC# 50236)
- SM Fiber Source:
- 1310nm
- 1550nm
- LC Connector For Source
- SM Fiber Source:
- Carrying Case (G)
JDSU Viavi OLS-35 Smartpocket SM Fiber Optic Laser Light Source
The Viavi OLS-3x series is the new generation of small and rugged optical light sources for quick, easy and convenient field insertion loss measurement and continuity check.
All Viavi sources are equipped with Auto and Multi functions compatible with any JDSU power meters. This one button operation provides a quick, simple and error-free testing solution, which makes SmartPocket sources the ideal tool for daily field testing.
The optical light sources (OLS-3x) of the SmartPocket series provide the ideal complement tools to the OLP-3x for insertion loss and continuity testing in both multimode and singlemode optical fiber networks. They offer a dedicated and costoptimized solution for testing and troubleshooting optical fibers in the field.
- The OLS-35 covers all standard singlemode telecommunication network applications with 1310/1550 nm
Features:
- Cost-effective, rugged and compact solution
- Interchangeable connectors for maximum flexibility available
- Auto and TwinTest transmission modes
Applications:
- Link insertion loss measurements and continuity check
- Standard singlemode wavelengths for any telecom, CATV and military applications.
Specifications:
| Source Type | Laser |
| Laser Safety | IEC 60825-1: 2007 |
| Fiber Type | SM (9/125 µm) |
| Optical Interface Type | PC/ 1 single port for all wavelengths |
| Optical Interface Connectors | Fixed: LC, FC, SC Interchangeable LC, FC, SC, ST, DIN |
| Central Wavelength | 1310 nm (± 20 nm) 1550 nm (± 20 nm) |
| Spectral Width | <5 nm |
| Output Power | -7 dBm |
| Stability Short Term (15 Min) | ± 0.02 dB |
| Stability Long Term (8h) | ± 0.05 dB |
| Tone Generation | 270 Hz, 1 kHz, 2 kHz |
| Power supply | |
| Dry batteries | 2x Mignon (AA) 1.5 V |
| Rechargeable batteries | 2x Mignon (AA) NiMH 1.2 V |
| AC operation | via micro USB and SNT-505 |
| Battery life (CW) | 30 h (MM)/80 h (SM) Automatic power off after 20 minutes |
| Environmental conditions | |
| EMI/ESD | CE compliance |
| Electrical safety | EN 61010-1: 2002 |
| Recommended calibration interval | 3 years |
| Operating temperature | -10 to +60°C / +14 to +140°F |
| Storage temperature | -40 to +70°C/ -40 to +158 °F |
