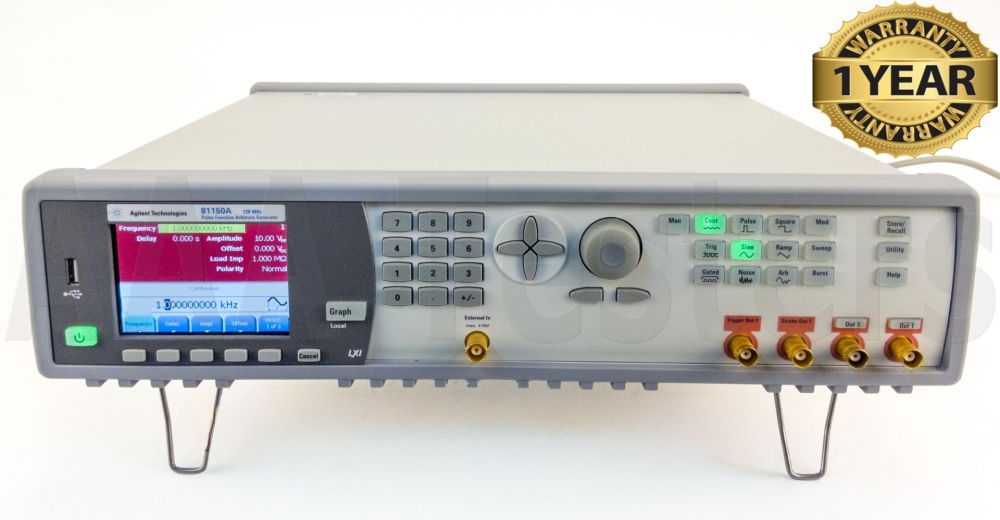

Keysight Agilent 81150A 120MHz Pulse Function Arbitrary Noise Generator
Condition: Refurbished
Warranty: 1 Year Warranty
Keysight Agilent 81150A 120MHz Pulse Function Arbitrary Noise Generator
High precision pulse generators enhanced with versatile signal generation, modulation and distortion capabilities for:
Accurate signals to test your device and not your signal source
Versatile waveform and noise generation to be ready for today‘s and tomor-row‘s stress test challenges
Optional pattern generator to test in addition to analog, digital and mixed signal devices
Integrated into one instrument to minimize cabling, space and test time
The 81150A Pulse Function Arbitrary Noise Generator at a glance
1 μHz – 120 MHz pulse generation with variable rise/fall tim
1 μHz – 240 MHz sine waveform output
14-bit, 2 GSa/s arbitrary waveforms
512k samples deep arbitrary waveform memory per channel
Pulse, sine, square, ramp, noise and arbitrary waveforms
Noise, with selectable crest factor, and signal repetition time of 26 days
FM, AM, PM, PWM, FSK modulation capabilitie
1 or 2 channel, coupled and uncoupled
Differential outputs
Two selectable output amplifiers
High bandwidth amplifier
Amplitude: 50 mVPP to 5 VPP; 50 Ω into 50 Ω
100 mVPP to 10 VPP; 50 Ω into open
Voltage window: ± 5 V; 50 Ω into 50 Ω± 10 V; 50 Ω into open± 9 V; 5 Ω into 50 Ω–High voltage amplifierAmplitude: 100 mVPP to 10 VPP; 50 Ω into 50 Ω, 200 mVPP to 20 VPP;5 Ω into 50 Ω, or 50 Ω into open
Voltage window: ± 10 V; 50 Ω into 50 Ω
± 20 V; 5 Ω into 50 Ω or 50 Ω into ope
Glitch free change of timing parameters (delay, frequency, transition time, width, duty cycle)
Programming language compatible with Keysight 81101A, 81104A, 81105A, 81110A , 81130A a n d 81160A
ISO 17025 and Z540.3 calibration
LXI class C (rev. 1.1) compliant
Optional pattern generator
Optional pattern generator
Ideal and arbitrary bit shaped pattern up to 120 Mbit/s
Two, three or four level signals
PRBS up to 2(31)
16 Mbit pattern memory
Pass through pattern for combined and physical and protocol test up to 10 Mbit/s
Engineered for the best signal generation
High precision pulse generator is enhanced with a versatile signal generator, offering distortion capabilities to stress your device to its limit
Arbitrary bit-shaped pattern generator for ideal and distorted pattern up to 120 Mbit/s.
Function arbitrary generator provides versatile waveforms and modulation capabilities to adapt the signal to devices requirements
Noise generator combines two required extremes: random noise and repeatable noise with very long repetition rates for simple problem identification
Further information arbitrary bit-shaped pattern generator
Keysight 81150A – designed for best signal generation
Application overview for Keysight 81150A with bit-shaped pattern and FlexRay™
The Keysight 81150A is used in many different applications
Noise source for physical layer tests in communications and computer bus standares for example
MIPI
PCI Express 3.0
Stimulus for Flexray testing
Clock generation
System trigger source
Radar test
Mixed signal device testing
Signal integrity test
And many more …
A 4-in-1 device for accelerated and accurate insight into your device
Create pulse, sine, square, ramp, noise and arbitrary waveforms to test your device—not the source
An optional 2 Channel version can be used either as 2 independent generators or as time synchronized coupled or added.
Integrated in one instrument, which increases signal performance, minimizes cabling, space and test time
Glitch free change of timing parameters (delay, frequency, transition time, width, delay cycle).
Programming language compatible with Keysight Technologies, Inc. 81101A, 81104A and 81110A pulse pattern generators
Waveform Creation and Editing
Get advanced signal creation/editing capability without tedious programming with 33503A BenchLink Waveform Builder Pro Software.
| Specifications | |
| Pulse characteristics | |
| Frequency range | |
| High bandwidth amplifier High voltage amplifier |
1 μHz to 120 MHz 1 μHz to 50 MHz |
| Frequency resolution | 1 μHz |
| Pulse width | |
| Range | 4.1 ns to (period - 4.1 ns) typ |
| High bandwidth amplifier High voltage amplifier |
2.5 ns to 1000 s (10% to 90%) 7.5 ns to 1000 s (10% to 90%) |
| Resolution | 100 ps, 6 digits |
| Accuracy | |
| High bandwidth amplifier High voltage amplifier |
± 500 ps ± 50 ppm -1000 ps to +500 ps ± 50 ppm |
| Overshoot | 2% typ.(1) |
| 1. Overshoot disappears for transitions times > 5 ns (high bandwidth amplifier) and > 15 ns (high voltage amplifier). |
|
| Sine characteristics | |
| Frequency range | |
| High bandwidth amplifier High voltage amplifier |
1 μHz to 240 MHz 1 μHz to 50 MHz |
| Harmonic distortion (High bandwidth amplifier 50 Ω into 50 Ω |
1V |
| 1 μHz to 2 MHz 2 MHz to 10 MHz 10 MHz to 35 MHz 35 MHz to 70 MHz 70 MHz to 240 MHz |
< -62 dBc spec. < -57 dBc spec. < -45 dBc spec. < -35 dBc spec. < -22 dBc spec |
| 3V | |
| 1 μHz to 2 MHz 2 MHz to 10 MHz 10 MHz to 35 MHz 35 MHz to 70 MHz 70 MHz to 240 MHz |
< -62 dBc spec. < -52 dBc spec. < -40 dBc spec. < -30 dBc spec. < -17 dBc spec. |
| Harmonic distortion (High voltage amplifier 50 Ω into 50 Ω) |
|
| 10Vpp | |
| 1 μHz to 8 MHz < -40 dBc 8 MHz to 50 MHz < -25 dBc |
|
| Non-harmonic (spurious) distortion | |
| 1 μHz to 20 MHz 20 MHz to 200 MHz 200 MHz to 240 MHz |
-60 dBc typ. -55 dBc typ. -50 dBc typ |
| SSB phase noise (10 kHz offset) | |
| 1 MHz 10 MHz 100 MHz 240 MHz 500 MHz |
-119 dBc/Hz typ. -115 dBc/Hz typ. - -93 dBc/Hz typ. - |
| Frequency range | |
| High bandwidth amplifier High voltage amplifier |
1 μHz to 120 MHz 1 μHz to 50 MHz |
| Duty cycle | |
| High bandwidth amplifier | (Freq/240 MHz) to 1 – (Freq/240 MHz) e.g. 60 MHz; 25% to 75% |
| High voltage amplifier | (Freq/100 MHz) to 1 – (Freq/100 MHz) e.g. 1 MHz 1% to 99% |
| Resolution | 0.1% |
| Transition time (10% to 90%) |
| High bandwidth amplifier High voltage amplifier |
2.5 ns typ. fixed 6 ns typ. fixed |
| Ramp characteristics | |
| Frequency range | 1 μHz to 5 MHz |
| Frequency resolution 1 μHz | 1 μHz |
| Linearity | < 0.1% (f < 10 kHz) |
| Symmetry | 0.0% to 100% |
| Noise characteristics | |
| High bandwidth amplifier High voltage amplifier |
120 MHz typ. 40 MHz typ. |
| Amplitude distribution | Selectable Gaussian, user defined |
| Crest factor (peak/RMS) selectable | 3.1, 4.8, 6.0, 7.0 typ. (Gaussian distribution) |
| Noise type | Deterministic, triggerable |
| Repetition time | ~ 26 days |
| Arbitrary characteristics | |
| DAC sample rate | 2 GSa/s1 , fixed |
| Waveform length | 2 to 512 k points |
| Wavelength vs. memory access rate | 2 to 512 k points at memory access rate 1,000 MSa/s |
| DAC resolution | 14 bits |
| Frequency range | 1 μHz to 120 MHz |
| Frequency resolution | 1 μHz |
| Transition time (10% to 90%) High bandwidth amplifier High voltage amplifier |
1.7 ns typ. 5 ns typ. |
| Filter bandwidth High bandwidth amplifier High voltage amplifier |
240 MHz typ. 80 MHz typ |
| PP jitter | 1 ns typ |
| 1. One step linear interpolation between two memory samples. DAC clock rate is 2,000 MSa/s. 2. Three steps linear interpolation between two memory samples. DAC clock rate is 2,500 MSa/s. 3. One step linear interpolation between two memory samples. DAC clock rate is 2,500 MSa/s |
For full Agilent 81150A Noise Generator product specifications, please click here: 81150A
Keysight Agilent 81150A 120MHz Pulse Function Arbitrary Noise Generator
1µ - 240 MHz Sine Waveform Output
Includes Accessories As Listed!
Keysight 81150A 81150-A Pulse Function Generator Models On Sale Warranty Calibration Backed by The Best Service and Lowest Prices in the Industry.
BC# -L/T*
- Keysight Agilent 81150A 120MHz Pulse Function Arbitrary Noise Generator (BC# -L/T*)
- Power Cord
- User Manual on CD-ROM
