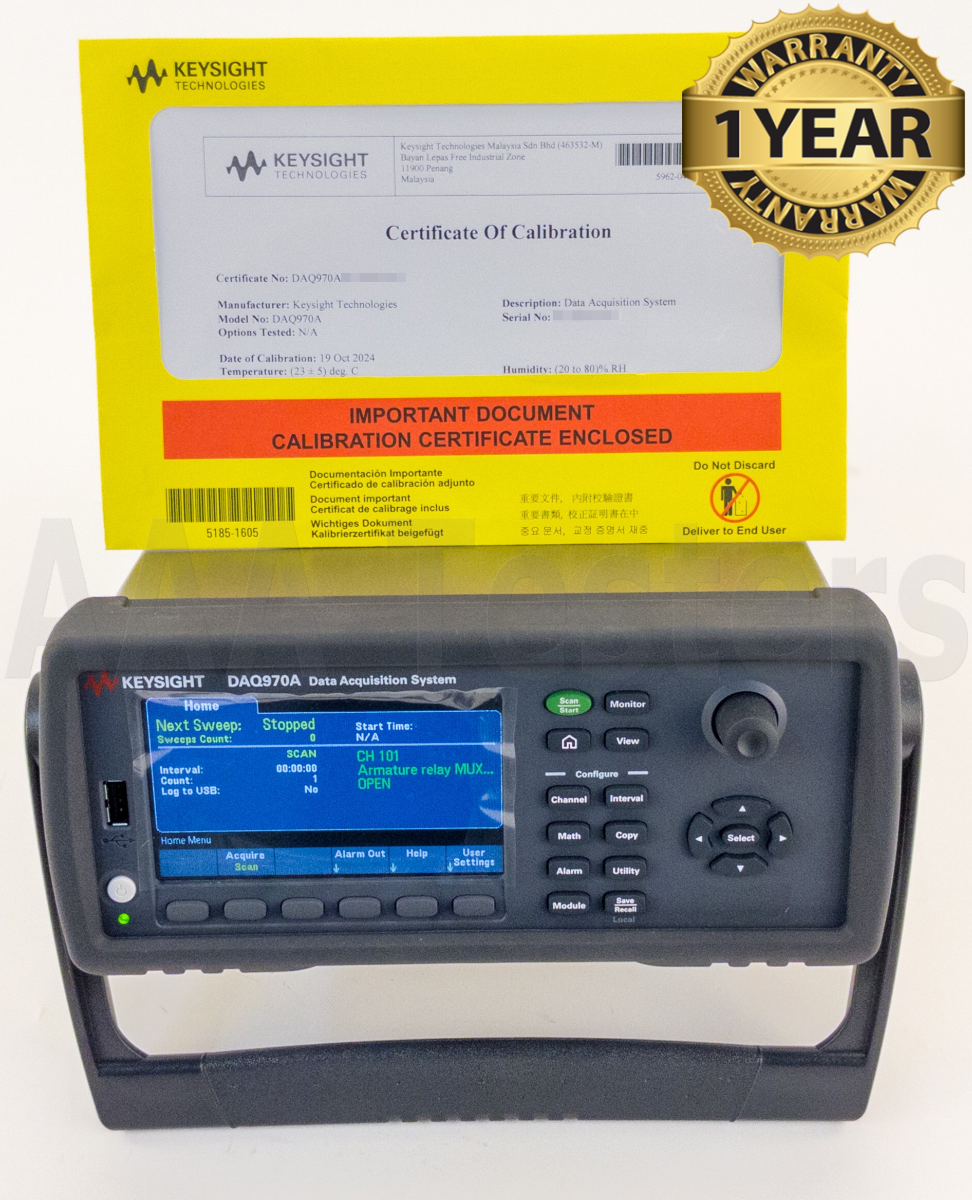

Keysight DAQ970A Data Acquisition System w/ DAQM901A 20 Channel Multiplexer

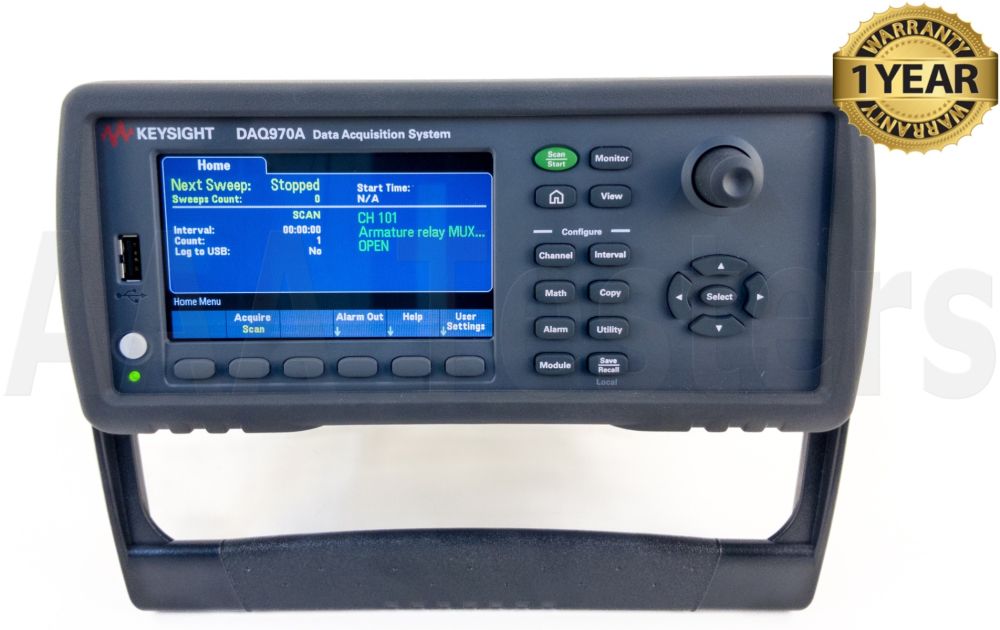

Keysight DAQ970A Data Acquisition System

The DAQ970A / DAQ973A features 6½ digits (22 bits) of resolution, 0.003% basic dcV accuracy, and ultra-low reading noise. Combine that with scan rates of up to 450 channels/sec, and you’ve got the speed and accuracy you need to get the job done right the first time.

Whether you need to measure temperature, AC/DC volts, resistance, frequency, or current, the DAQ970A / DAQ973A can handle it. The internal auto-ranging DMM directly measures 12 different functions, eliminating the need for expensive external signal conditioning. Our unique design allows complete per channel reconfigurability for maximum flexibility and quick, easy set-up. It’s like having an independent, high-performance DMM behind each channel.

The DAQ970A / DAQ973A 4.3” graphical color display and soft keys are designed intuitively for easy configuration and measurement displays in multiple formats. You can view the measurements in numeric digits, bar graphs, trend charts, and histograms, giving you a quick overview of your measurement.

The DAQ970A has built-in Gigabit LAN and USB 2.0. With the standard LAN connection, you also get the added benefit of a graphical Web interface for easy measurement configuration and monitoring of results using a standard Web browser. In addition to LAN and USB, the DAQ973A has a built-in GPIB interface.

The built-in graphical web interface provides easy access and control of the instrument using a web browser like Chrome or Internet Explorer. Using this interface, you can configure measurements, define and execute scan lists, or monitor measurement results anywhere on the network. Enter the instrument hostname or IP address into the browser URL and gain access to the instrument’s front panel capabilities.

• Specify per channel measurement configuration
• Define and execute switch scans
• Monitor measurement readings
• View and save data
• View error queue
• View instrument information like module configuration, relay counts, firmware revisions, and more

Additionally, since the Web interface is built into the instrument, you can access it on any operating system that supports a Web browser without installing special software. Password protection and LAN lock-out are also provided to limit access. The graphical Web interface makes it easy to configure measurements, set up and execute scans, or troubleshoot your designs from anywhere on the network.

Features:

• 3-slot mainframes with built-in 6 ½ digit DMM
• Basic 0.003% DCV accuracy
• 10 switch, RF and control plug-in modules, including a new 4-channel simultaneous sampling digitizer
• Up to 450 channel/s scan rate
• Up to 120 channels per system
• Up to one million points scanning memory
• Large 4.3” color display for ease of setup and viewing data
• LAN and USB for easy connectivity to your PC (DAQ973A comes with additional GPIB) Measurements you can trust
• Measures and converts 14 different input signals: Temperature with thermocouple, RTDs and thermistor; dc/ac volts; 2- and 4-wire resistance; frequency and period; dc/ac current and capacitance; direct strain and bridge strain
• (DAQ973A comes with additional GPIB)
• Code compatible with the 34970A/34972A
• USB flash drive support to copy/log data in standalone applications
• BenchVue DAQ with enhanced time/frequency domain measurement
