Keysight InfiniiVision HD304MSO 4 Channel 200MHz Mixed Signal Oscilloscope

Keysight InfiniiVision HD304MSO 4 Channel 200MHz Mixed Signal Oscilloscope

See What You’ve Been Missing with Custom Technology

The HD3 Series uses custom components optimized specifically for oscilloscope measurements. Keysight’s R&D team designed a brand-new 14-bit ADC, an all-new ASIC, other support components, and an entirely new architecture for the signal to flow through. Because Keysight designs these components rather than using off-the-shelf components, our hardware works much faster and more efficiently since it is designed specifically for oscilloscopes.

Part of this new architecture also includes deep memory with dedicated memory chips for every channel (100 Mpts). This means there is no interleaving between channels. You can have all four channels turned on and still get the maximum memory and sample rate on every channel. Our new custom ASIC (MegaZoom 5) enables the HD3 to have hardware-based functions such as zone trigger, serial decoding, and mask testing.

Custom hardware also makes it possible for us to create new custom software, such as the Fault Hunter software application. Simply run Fault Hunter and detect any glitches or errors on your signal!

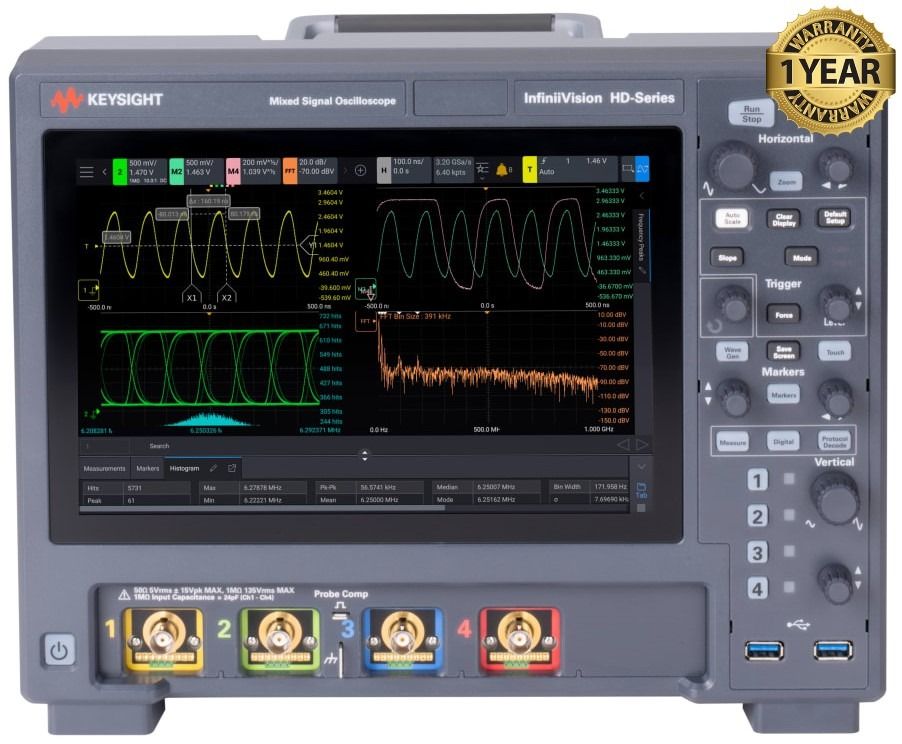

HD304MSO/200 is a 200MHz bandwidth, 4 analog and 16 digital channels mixed signal oscilloscope. Perform digital debugging using a portable oscilloscope with a custom application-specific integrated circuit (ASIC) that delivers four times more vertical resolution and half the injected noise of other general-purpose oscilloscopes. Troubleshoot your design and ensure product quality by debugging with an oscilloscope that can see the small signals beyond the noise to catch the slightest and most infrequent signal glitches.

• 2.0nsec rise time, 3.2GSa/s per channel sampling rate
• Increase vertical resolution by four times with a 14-bit ADC and half the noise floor
• See smaller signals with a 50µVRMS noise floor
• Find signal glitches with an uncompromised 1.3M waveform / second update rate
• Capture longer time spans at full sample rate with 100Mpts of deep memory
• 10.1inch capacitive touch gesture-enabled display
• Isolate signals in seconds with zone triggering — simply draw a box on the screen
• Characterize signals, hunt for errors, and save automatically with Keysight fault hunter
• Perform advanced analysis with fast Fourier transforms, histograms, and Bode plots
