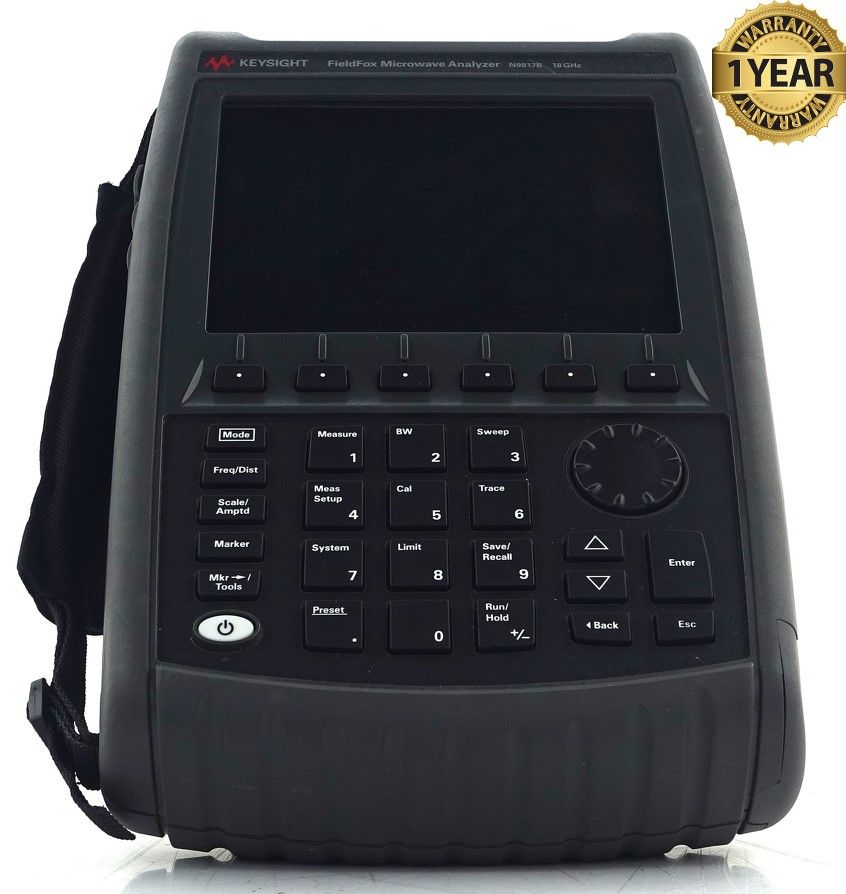

Keysight N9917B 18 GHz FieldFox Handheld Microwave Analyzer
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- Keysight N9917B 18 GHz FieldFox Handheld Microwave Analyzer: (BC# -L/T*)
- Power Cord
- AC Adapter
- Carrying Case
Keysight N9917B 18 GHz FieldFox Handheld Microwave Analyzer
Carry the world's most integrated handheld RF analyzer, standard model includes cable and antenna analyzer. Expand capabilities with optional vector network analyzer or spectrum analyzer. Capture intermittent signals with 100 MHz gap-free real-time bandwidth. Simultaneously measure all four S-parameters with 115 dB system dynamic range. Make accurate spectrum analyzer measurements (+/- 0.3 dB) without warm-up. Supports over-the-air measurements for 5GTF and LTE. Lightest all-in-one analyzer at only 7.35 lb. FieldFox RF analyzers are designed to withstand your toughest working conditions. To accelerate your work, each operating mode has a task-driven user interface that saves time in the field. Step up to FieldFox and boost your readiness. The combination analyzer's base function is a cable and antenna analyzer and it can be configured to include a spectrum and network analyzer. FieldFox can be ordered with additional capabilities: power meter, independent signal generator, vector voltmeter, interference analyzer, variable DC source, and built-in GPS receiver.
- Bright, low-reflection display and backlit keys enable easy viewing in direct sunlight or darkness
- Intuitively designed user interface for your workflow, enabling measurements in fewer key presses
- One-button measurements simplify complex setups and ensure quick, accurate results with confidence
- Calibration Wizard guides user to ensure simple and accurate calibrations
- Standard three-year warranty ensures field confidence, especially in harsh environments
- Designed for your Toughest Working Conditions
- Completely sealed instrument enclosure provides measurement stability in harsh environments, -10 to +55 ºC, (14 to 131 ºF)
- Specially designed to protect instrument from damage due to drops, shock or other external impacts
- Water-resistant chassis, keypad and case withstand wide temperature ranges and salty, humid environments
- Meets MIL-PRF-28800F Class 2 requirements
- Type tested and meets MIL-STD-810G, Method 511.5, Procedure I requirements for operation in explosive environments
- Type tested and meets IEC/EN 60529 requirements for ingress protection
Specifications:
| Power supply | |
| External DC input | 15 to 19 VDC, 4 amps maximum when battery charging |
| External AC power adapter | Efficiency level VI |
| Input | 100 to 240 VAC, 50 to 60 Hz, 1.5 to 0.75 A |
| Output | 15 VDC, 6 A |
| Power consumption | 16 to 30 watts (typical) Battery consumption depends on battery saver selection, measurement mode and temperature. |
| Battery | |
| Lithium ion | 10.8 V, 6.4 A-h, 70 Wh |
| Operating time | 4 hours (typical), mode dependent |
| Charge time | A fully discharged battery takes about 1.5 hours to recharge to 80%. Four hours to 100% |
| Battery Life | 4 hours |
| Storage temperature limits | The battery packs should be stored in an environment with low humidity. Extended exposure to temperatures above 45 °C could degrade battery performance and life. |
| Data Storage | |
| Internal | Internal Minimum: 4 GB Minimum states and traces: 1000 |
| External | Supports USB 2.0 compatible memory devices and SD/SDHC memory cards with FAT and exFAT format |
| Data types | Trace, trace+state, picture (png), data (csv), S1P, S2P |
| Other | |
| Display | 6.5” transflective color LCD-LED backlit |
| Headphone jack connector | 3.5 mm (1/8 inch) miniature audio jack |
| USB-A, 2-ports | Hi-speed USB 2.0 |
| Mini USB, 1 port | Hi-speed USB 2.0; used for SCPI programming; USBTMC (USB IEEE488) |
| Maximum humidity | Maximum relative humidity (non-condensing): 95% relative humidity up to 40 °C, decreases linearly to 45% relative humidity at 55 ºC |
| Languages | English, Spanish, German, Italian, French, Russian, Japanese, Chinese, Turkish, Korean, and Portuguese |
