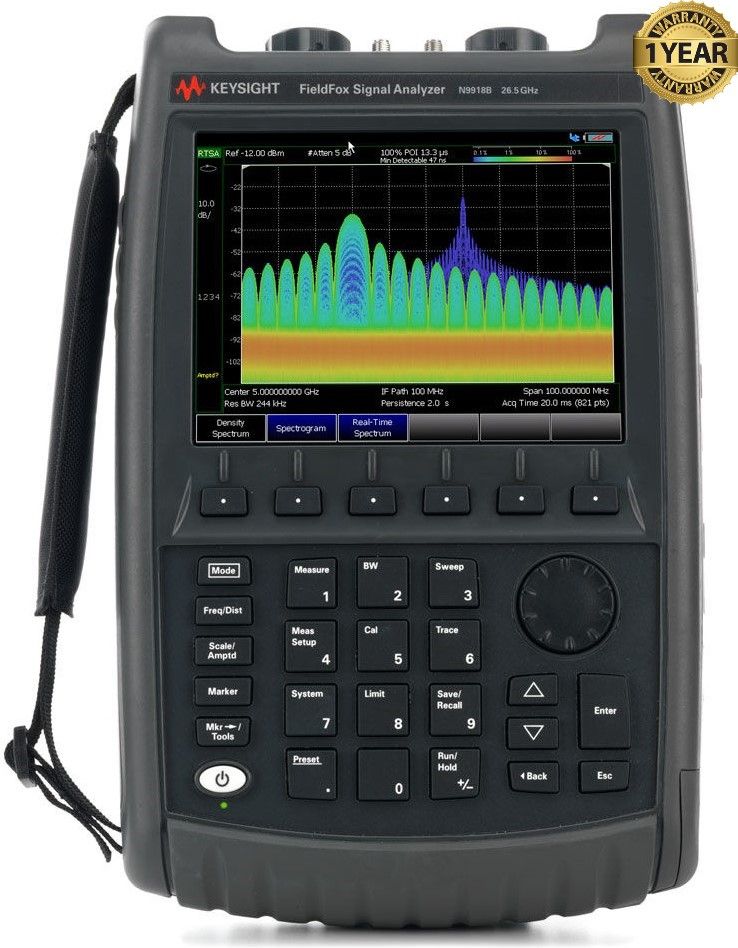

Keysight N9918B 26.5 GHz FieldFox HandHeld Microwave Analyzer
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- Keysight N9918B 26.5 GHz FieldFox HandHeld Microwave Analyzer: (BC# -L/T*)
- Power Cord
- AC Adapter
- Carrying Case
Keysight N9918B 26.5 GHz FieldFox HandHeld Microwave Analyzer
The N9918B FieldFox Handheld Microwave Analyzer is a versatile and portable device that functions as a cable and antenna analyzer, spectrum analyzer, and network analyzer, with a maximum frequency of 26.5 GHz. It features real-time bandwidth, simultaneous S-parameter measurement, and over-the-air capabilities for 5G NR and LTE. The analyzer is lightweight at 3.4 kg and includes various software and accessory options to enhance its functionality.
The Keysight FieldFox handheld analyzers can withstand your toughest working conditions with a ruggedized yet light weight and portable battery powered design for making measurements for RF devices like cables, antennas, filters, amplifiers and signal/spectrum analysis. Create your specialized handheld analyzer solution by selecting FieldFox options and features to address cable and antenna test (CAT) spectrum analysis (SA) or vector network analysis (VNA) real time spectrum analyzer and over the air digital demodulation analysis required for your application. The FieldFox analyzers are always ready to make RF measurements, ensuring every operating mode is flexible enough to meet the needs of novices and experts alike.
- Bright, low-reflection display and backlit keys enable easy viewing in direct sunlight or darkness
- Intuitively designed user interface for your workflow, enabling measurements in fewer key presses
- One-button measurements simplify complex setups and ensure quick, accurate results with confidence
- Calibration Wizard guides user to ensure simple and accurate calibrations
- Standard three-year warranty ensures field confidence, especially in harsh environments
- Designed for your Toughest Working Conditions
- Completely sealed instrument enclosure provides measurement stability in harsh environments, -10 to +55 ºC, (14 to 131 ºF)
- Specially designed to protect instrument from damage due to drops, shock or other external impacts
- Water-resistant chassis, keypad and case withstand wide temperature ranges and salty, humid environments
- Meets MIL-PRF-28800F Class 2 requirements
- Type tested and meets MIL-STD-810G, Method 511.5, Procedure I requirements for operation in explosive environments
- Type tested and meets IEC/EN 60529 requirements for ingress protection
Specifications:
| Power supply | |
| External DC input | 15 to 19 VDC, 4 amps maximum when battery charging |
| External AC power adapter | Efficiency level VI |
| Input | 100 to 240 VAC, 50 to 60 Hz, 1.5 to 0.75 A |
| Output | 15 VDC, 6 A |
| Power consumption | 16 to 30 watts (typical) Battery consumption depends on battery saver selection, measurement mode and temperature. |
| Battery | |
| Lithium ion | 10.8 V, 6.4 A-h, 70 Wh |
| Operating time | 4 hours (typical), mode dependent |
| Charge time | A fully discharged battery takes about 1.5 hours to recharge to 80%. Four hours to 100% |
| Battery Life | 4 hours |
| Storage temperature limits | The battery packs should be stored in an environment with low humidity. Extended exposure to temperatures above 45 °C could degrade battery performance and life. |
| Data Storage | |
| Internal | Internal Minimum: 4 GB Minimum states and traces: 1000 |
| External | Supports USB 2.0 compatible memory devices and SD/SDHC memory cards with FAT and exFAT format |
| Data types | Trace, trace+state, picture (png), data (csv), S1P, S2P |
| Other | |
| Display | 6.5” transflective color LCD-LED backlit |
| Headphone jack connector | 3.5 mm (1/8 inch) miniature audio jack |
| USB-A, 2-ports | Hi-speed USB 2.0 |
| Mini USB, 1 port | Hi-speed USB 2.0; used for SCPI programming; USBTMC (USB IEEE488) |
| Maximum humidity | Maximum relative humidity (non-condensing): 95% relative humidity up to 40 °C, decreases linearly to 45% relative humidity at 55 ºC |
| Languages | English, Spanish, German, Italian, French, Russian, Japanese, Chinese, Turkish, Korean, and Portuguese |
