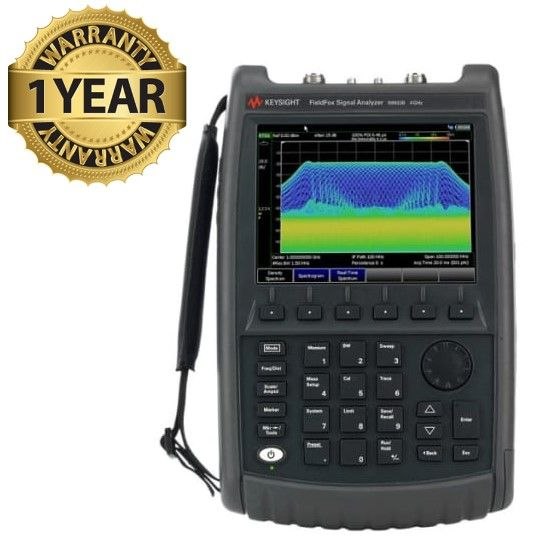

Keysight N9933C 4 GHz FieldFox Handheld Microwave Spectrum Analyzer
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- Keysight N9933C 4 GHz FieldFox Handheld Microwave Spectrum Analyzer: (BC# -L/T*)
- Power Cord
- AC Adapter
- Carrying Case
Keysight N9933C 4 GHz FieldFox Handheld Microwave Spectrum Analyzer
Keysight’s FieldFox handheld analyzers have been in market for well over a decade. To meet the increasingly strigent demands from our customers, the new RF FieldFox C-Series analyzers have been introduced. They inherit all the excellence of the FieldFox with the emphasis of the performance in lower frequency range and software defined functionalities. The starting frequency with enhanced performance is specified at 3 kHz for the vector network analyzer (VNA) for signal analyzer (SA). The C-Series FieldFox is a form-fit-functional replacement to its precedents of A- or B-Series FieldFox RF analyzers, helping to minimize the downtime and to mitigate the risks in your technology refresh.
Key features
- Cable and antenna analyzer (CAT)
- TDR Cable measurements
- Spectrum analyzer
- Full 2-port vector network analyzer
- Built-in power meter
- Independent signal generator
- Vector voltmeter
- Interference analyzer
- Real-time spectrum analyzer (RTSA)
- Up to 120 MHz analysis/real-time bandwidth
- Extended range transmission analysis (ERTA)
- Over-the-air (OTA) LTE FDD/TDD
- Over-the-air (OTA) 5G NR
- Phase array antenna support
- Indoor and outdoor mapping
- Pulse measurement
- Analog demodulation
- Built-in variable DC voltage source
- Frequency counter measurements
- Electromagnetic field (EMF) measurements
- Electromagnetic interference (EMI) measurements
- Noise figure (NF)
- Built-in GPS receiver
- ECal support
Product highlights
- Rugged and weather resistant:
- Meets MIL-PRF-28800F Class 2, no vents, wide operating temperature of -10 to +55°C (14 to 131°F)
- Meets IEC/EN 60529 IP53 requirements.
- Type tested and meet Procedure 1 requirements for operation in explosive environments. MIL-810G, Method 511.5.
- Portable: compact, lightweight 3.34 kg/7.35 lb package
- Combination analyzers:
- Signal analyzer provides best amplitude accuracy of ±0.2 dB, with no warm-up required.
- Real-time spectrum analyzer (RTSA) with up to 120 MHz bandwidth and 5.52 μs minimum signal duration with 100% POI at full amplitude accuracy.
- VNA CalReady allows quick and accurate microwave device measurements in the field.
- Full-band tracking generator up to 10 GHz.
- Analyzer type, frequency coverage and apps are all customer upgradeable with software license keys.
Specifications:
| Frequency Range | 3 kHz to 4 GHz base spectrum analysis coverage |
| Real-Time Analysis | Up to 120 MHz gap-free real-time bandwidth to capture elusive or transient signals |
| Amplitude Accuracy | ±0.15 dB typical/nominal specification with no warm-up required |
| Form Factor | Rugged, portable field unit at 7.4 lb |
| Core Functions | Standard spectrum analysis, four traces, multiple detectors, channel power, occupied bandwidth (OBW), adjacent channel power (ACP), and spectrum emission mask (SEM) |
