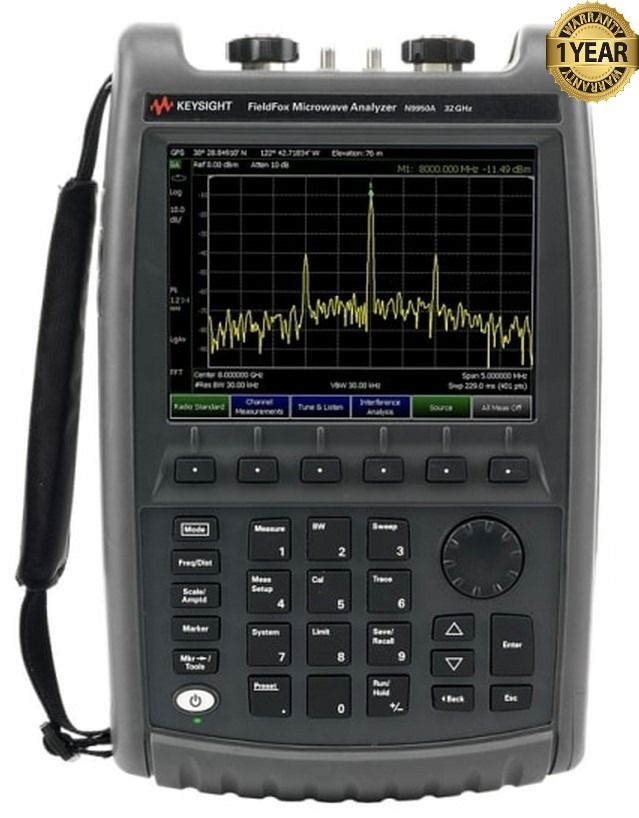

Keysight N9950A 32 GHz FieldFox Handheld Microwave Analyzer
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- Keysight N9950A 32 GHz FieldFox Handheld Microwave Analyzer: (BC# -L/T*)
- Power Cord
- AC Adapter
- Carrying Case
Keysight N9950A 32 GHz FieldFox Handheld Microwave Analyzer
Keysight's FieldFox is a family of handheld RF, microwave, and millimeter-wave analyzers built to bring benchtop-class measurement precision into the field. The series spans frequency coverage from 4 GHz up to 50 GHz and is offered in three configurations: RF and microwave combination analyzers, microwave vector network analyzers and microwave spectrum analyzers. A combination analyzer integrates a cable and antenna tester, a vector network analyzer, and a spectrum analyzer in a single sealed instrument weighing as little as 6.6 lb (3.0 kg).
FieldFox is designed for installation and maintenance work across demanding field environments. Listed applications include installing and maintaining cellular systems with the cable and antenna (CAT) tester, radar installation and maintenance through the Ka and Q bands, and accelerating work at satellite ground stations where uplink and downlink signals, cables, waveguides, and antennas must be validated. It also serves as a companion tool on the R&D bench and brings as many as 20 instrument capabilities into engineering classes and labs, freeing high-performance benchtop instruments for other work.
Key Features:
- 32 GHz max frequency
- Carry world’s most integrated handheld µW analyzer: standard model includes cable and antenna analyzer
- Expand capabilities with optional VNA, spectrum analyzer, built-in power meter, vector voltmeter, and more
- Save time by measuring DTF and TDR in a single sweep
- Simultaneously measure all four S-parameters
- Make accurate SA measurements (± 0.5 dB) without needing warm-up
- Easily measure average and pulse power with a USB sensor
- Lightest all-in-one analyzer at only 7.1 lb. (3.2 kg)
Specifications:
| Power supply | |
| External DC input | 15 to 19 VDC, 4 amps maximum when battery charging |
| External AC power adapter | Efficiency level VI |
| Input | 100 to 240 VAC, 50 to 60 Hz, 1.5 to 0.75 A |
| Output | 15 VDC, 6 A |
| Power consumption | 16 to 30 watts (typical) Battery consumption depends on battery saver selection, measurement mode and temperature. |
| Battery | |
| Lithium ion | 10.8 V, 6.4 A-h, 70 Wh |
| Operating time | 3.5 hours (typical), mode dependent |
| Charge time | A fully discharged battery takes about 1.5 hours to recharge to 80%. Four hours to 100% |
| Battery Life | 4 hours |
| Storage temperature limits | The battery packs should be stored in an environment with low humidity. Extended exposure to temperatures above 45 °C could degrade battery performance and life. |
| Data Storage | |
| Internal | Internal Minimum: 4 GB Minimum states and traces: 1000 |
| External | Supports USB 2.0 compatible memory devices and SD/SDHC memory cards with FAT and exFAT format |
| Data types | Trace, trace+state, picture (png), data (csv), S1P, S2P |
| Other | |
| Bandwidth Range Max | 32 GHz |
| Bandwidth Range Min | 300 kHz |
| Display | 6.5” transflective color LCD-LED backlit |
| Headphone jack connector | 3.5 mm (1/8 inch) miniature audio jack |
| USB-A, 2-ports | Hi-speed USB 2.0 |
| Mini USB, 1 port | Hi-speed USB 2.0; used for SCPI programming; USBTMC (USB IEEE488) |
| Maximum humidity | Maximum relative humidity (non-condensing): 95% relative humidity up to 40 °C, decreases linearly to 45% relative humidity at 55 ºC |
| Languages | English, Spanish, German, Italian, French, Russian, Japanese, Chinese, Turkish, Korean, and Portuguese |
