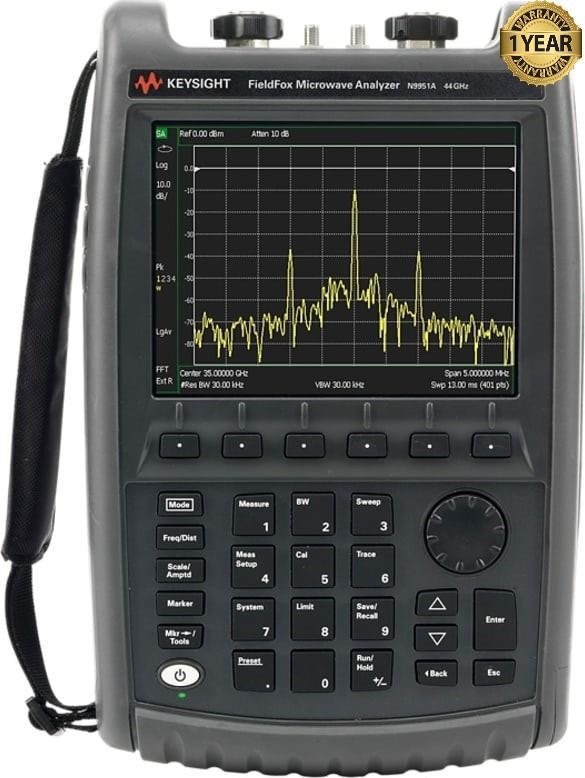

Keysight N9951A 44 GHz FieldFox Handheld Microwave Analyzer
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- Keysight N9951A 44 GHz FieldFox Handheld Microwave Analyzer: (BC# -L/T*)
- Power Cord
- AC Adapter
- Carrying Case
Keysight N9951A 44 GHz FieldFox Handheld Microwave Analyzer
The Keysight N9951A FieldFox is an all-in-one RF analyzer with a 300 kHz – 44 GHz frequency range, 2 ports, and up to 110 dB dynamic range. Complete RF interference hunting, cable & antenna analysis, vector network analysis, and spectrum analysis with a single device.
Standard model includes cable and antenna analyzer. Expand capabilities with optional VNA, spectrum analyzer, built-in power meter, vector voltmeter, and more. Save time by measuring DTF and TDR in the same sweep. Measure all four S-parameters simultaneously. Make accurate spectrum analyzer measurements (± 0.5 dB) without warm-up. Calibrate easily with QuickCal. Use the industry’s lightest all-in-one analyzer at only 3.2 kg (7.1 lb).
Key Features:
- Standard model includes cable and antenna analyzer.
- Save time by measuring DTF and TDR in the same sweep.
- Measure all four S-parameters simultaneously.
- Make accurate spectrum analyzer measurements (± 0.5 dB)
- Calibrate easily with QuickCal.
Specifications:
| Power supply | |
| External DC input | 15 to 19 VDC, 4 amps maximum when battery charging |
| External AC power adapter | Efficiency level VI |
| Input | 100 to 250 VAC, 50 to 60 Hz, 1.25 to 0.56 A |
| Output | –6 dBm max leveled (typical, 32–44 GHz using both ports) |
| Test Port Input Power | +25 dBm max (0.3 W), ±40 VDC |
| Battery | |
| Lithium ion | 10.8 V, 6.4 A-h, 70 Wh |
| Operating time | 3.5 hours (typical), mode dependent |
| Charge time | A fully discharged battery takes about 1.5 hours to recharge to 80%. Four hours to 100% |
| Battery Life | 4 hours |
| Storage temperature limits | The battery packs should be stored in an environment with low humidity. Extended exposure to temperatures above 45 °C could degrade battery performance and life. |
| Data Storage | |
| Internal | Internal Minimum: 4 GB Minimum states and traces: 1000 |
| External | Supports USB 2.0 compatible memory devices and SD/SDHC memory cards |
| Data types | Trace, trace+state, picture (png), data (csv), S1P, S2P |
| Other | |
| Display | 6.5” transflective color LCD-LED backlit |
| Headphone jack connector | 3.5 mm (1/8 inch) miniature audio jack |
| USB-A, 2-ports | Hi-speed USB 2.0 |
| Dynamic Range | Up to 110 dB (10 MHz – 20 GHz) Up to 100 dB (20 – 44 GHz) |
| Trace Noise | 0.004 dB rms up to 20 GHz 0.008 dB rms up to 50 GHz |
| System Impedance | 50 Ω nominal |
| Languages | English, Spanish, German, Italian, French, Russian, Japanese, Chinese, Turkish, Korean, and Portuguese |
