Keysight N9952A 50 GHz FieldFox HandHeld Microwave Analyzer
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- Keysight N9952A 50 GHz FieldFox HandHeld Microwave Analyzer: (BC# -L/T*)
- Power Cord
- AC Adapter
- Carrying Case

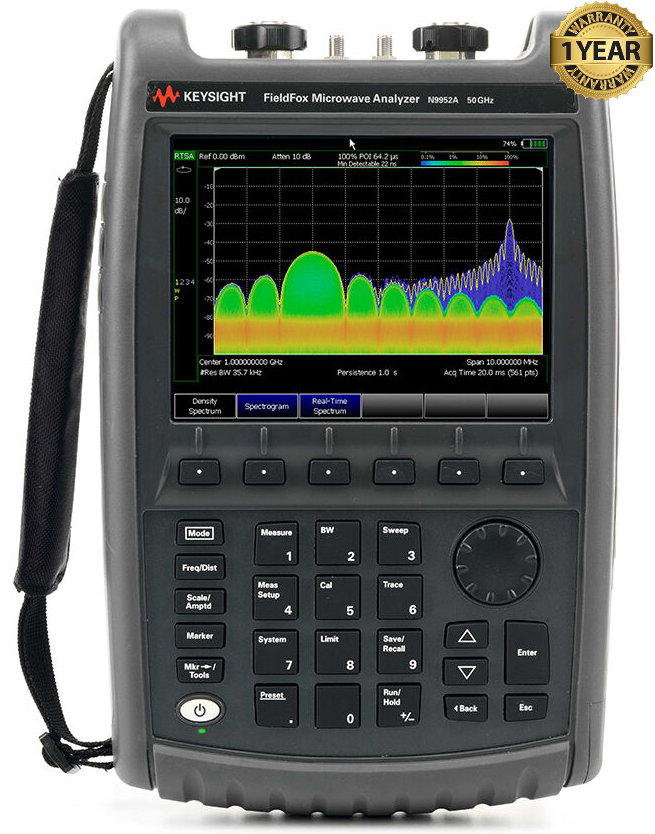

Keysight N9952A 50 GHz FieldFox HandHeld Microwave Analyzer
The Keysight N9952A FieldFox Handheld Microwave Analyzer measures and analyzes data while also withstanding the toughest working environments. The Keysight unit can be activated for vector network analysis (VNA) and spectrum analysis for additional testing, making it best suited for cable and antenna testing. Optional features include a power meter, independent signal generator, vector voltmeter interference analyzer, and changeable DC source. Simultaneously measuring DTF and TDR, the Microwave Analyzer is user-friendly for technicians in the field and performs everything from regular maintenance to extensive troubleshooting. Its integrated GPS receiver provides measurements with geo-location tags in addition to geo data like time, latitude, longitude, and elevation. The GPS not only offers position data but also an external reference to increase Keysight N9952A FieldFox frequency accuracy.
FieldFox is designed for installation and maintenance work across demanding field environments. Listed applications include installing and maintaining cellular systems with the cable and antenna (CAT) tester, radar installation and maintenance through the Ka and Q bands, and accelerating work at satellite ground stations where uplink and downlink signals, cables, waveguides, and antennas must be validated. It also serves as a companion tool on the R&D bench and brings as many as 20 instrument capabilities into engineering classes and labs, freeing high-performance benchtop instruments for other work.
Key Features:
- 32 GHz max frequency
- Carry world’s most integrated handheld µW analyzer: standard model includes cable and antenna analyzer
- Expand capabilities with optional VNA, spectrum analyzer, built-in power meter, vector voltmeter, and more
- Save time by measuring DTF and TDR in a single sweep
- Simultaneously measure all four S-parameters
- Make accurate SA measurements (± 0.5 dB) without needing warm-up
- Easily measure average and pulse power with a USB sensor
- Lightest all-in-one analyzer at only 7.1 lb. (3.2 kg)
Specifications:
| Power supply | |
| External DC input | 15 to 19 VDC, 4 amps maximum when battery charging |
| External AC power adapter | Efficiency level VI |
| Input | 100 to 240 VAC, 50 to 60 Hz, 1.5 to 0.75 A |
| Output | 15 VDC, 6 A |
| Power consumption | 16 to 30 watts (typical) Battery consumption depends on battery saver selection, measurement mode and temperature. |
| Battery | |
| Lithium ion | 10.8 V, 6.4 A-h, 70 Wh |
| Operating time | 3.5 hours (typical), mode dependent |
| Charge time | A fully discharged battery takes about 1.5 hours to recharge to 80%. Four hours to 100% |
| Battery Life | 4 hours |
| Storage temperature limits | The battery packs should be stored in an environment with low humidity. Extended exposure to temperatures above 45 °C could degrade battery performance and life. |
| Data Storage | |
| Internal | Internal Minimum: 4 GB Minimum states and traces: 1000 |
| External | Supports USB 2.0 compatible memory devices and SD/SDHC memory cards with FAT and exFAT format |
| Data types | Trace, trace+state, picture (png), data (csv), S1P, S2P |
| Other | |
| Bandwidth Range Max | 32 GHz |
| Bandwidth Range Min | 300 kHz |
| Display | 6.5” transflective color LCD-LED backlit |
| Headphone jack connector | 3.5 mm (1/8 inch) miniature audio jack |
| USB-A, 2-ports | Hi-speed USB 2.0 |
| Mini USB, 1 port | Hi-speed USB 2.0; used for SCPI programming; USBTMC (USB IEEE488) |
| Maximum humidity | Maximum relative humidity (non-condensing): 95% relative humidity up to 40 °C, decreases linearly to 45% relative humidity at 55 ºC |
| Languages | English, Spanish, German, Italian, French, Russian, Japanese, Chinese, Turkish, Korean, and Portuguese |
