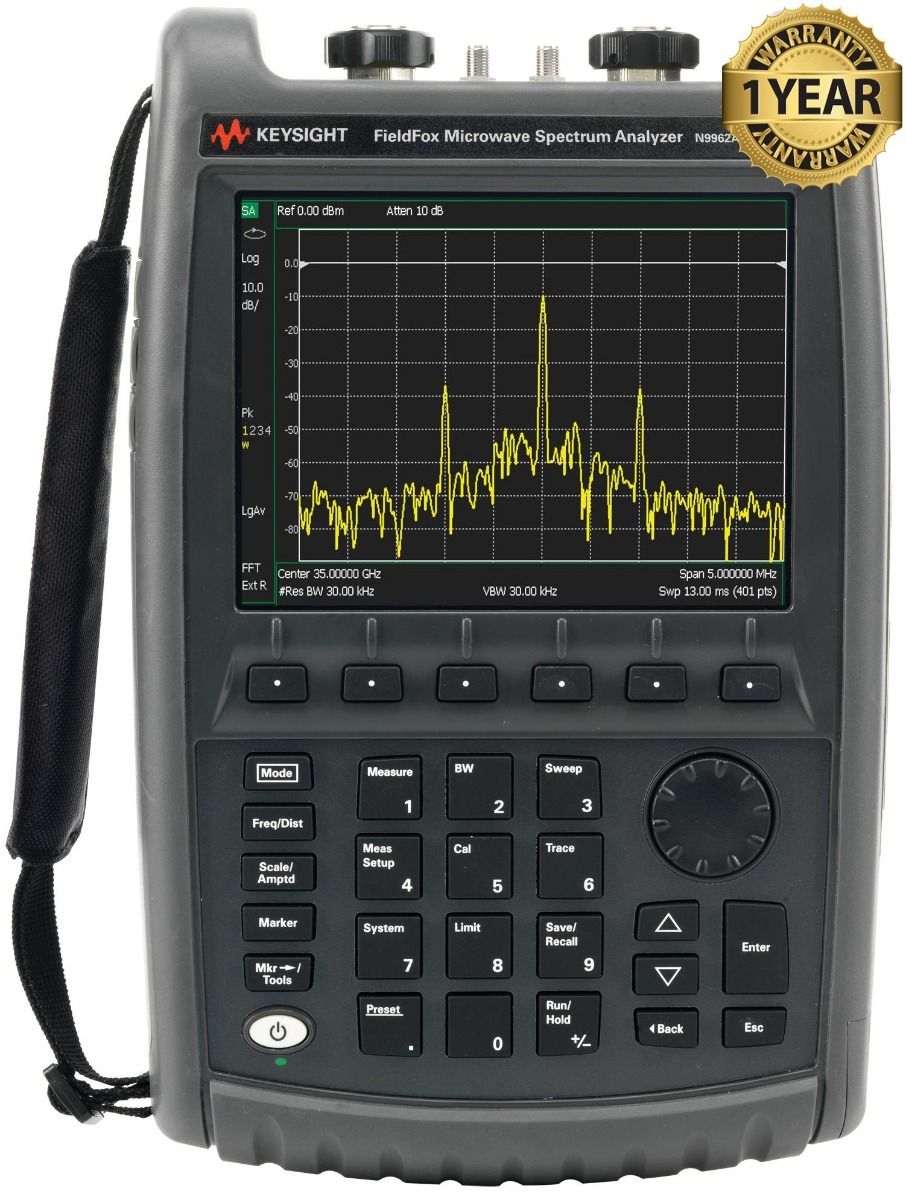

Keysight N9962A 50 GHz FieldFox HandHeld Microwave Spectrum Analyzer

Keysight N9962A 50 GHz FieldFox HandHeld Microwave Spectrum Analyzer

N9962A FieldFox 50 GHz is a portable battery-operated microwave spectrum analyzer. Optional features include full band tracking generator and preamplifier, interference analyzer, time gating, VSWR, reflection, built-in power meter and GPS receiver.

If you maintain or troubleshoot systems that operate at or above Ka-band frequencies, you've experienced the hassle of carrying multiple heavy instruments into the field. The N9962A FieldFox is a rugged, dependable handheld analyzer designed to deliver precise, lab-grade measurements. Offering more built-in capabilities than similar analyzers, you can replace the hassle of carrying three or four instruments with a single FieldFox.

The N9962A FieldFox 50 GHz microwave spectrum analyzer provides industry-leading amplitude accuracy of ±0.5 dB at power-up, with no warm-up required. It can can detect more signals in the band of interest with phase noise of -111 dBc/Hz at 10 kHz offset, and measure low-level signals in the presence of high-power transmitters with spur-free dynamic range of 105 dB.

The spectrum analyzer's base function is spectrum analysis, and can be configured to include; full-band tracking generator and preamplifier, interference analyzer, VSWR and reflection measurements, built-in power meter, USB power sensor support, GPS receiver and DC bias voltage source.

Dust-free design with no fans, no vents extends instrument reliability in harsh environments, water-resistant, MIL-PRF-28800F Class 2 compliant, and MIL-STD-810G, Method 511.5 Procedure I requirements for operation in explosive environments (type tested). Well-suited for: satellite communications, microwave backhaul, Military communications, radar systems, and active and passive device testing.



Specifications:
