Keysight N9963B 54 GHz FieldFox HandHeld Microwave Signal Analyzer
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- Keysight N9963B 54 GHz FieldFox HandHeld Microwave Signal Analyzer: (BC# -L/T*)

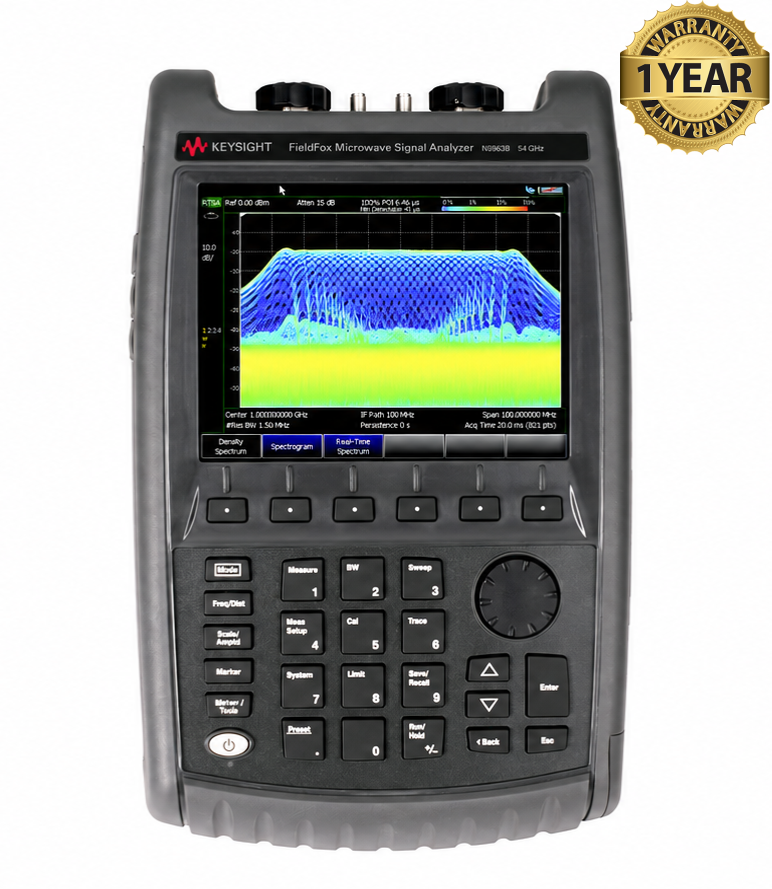

Keysight N9963B 54 GHz FieldFox HandHeld Microwave Signal Analyzer
The Keysight N9963B FieldFox is a handheld microwave signal analyzer designed for RF testing wherever the work takes you. Covering frequencies from 9 kHz to 54 GHz, it lets technicians examine signals, check system performance, and investigate interference at an installation site or in the field.
Built for demanding work environments, the N9963B combines a durable enclosure with a color display and controls designed for on-site measurements. Its spectrum analyzer can make accurate measurements without a warm-up period.
The N9963B can be configured for more specialized work through optional software. Depending on the options installed, it can provide real-time spectrum analysis, radar pulse measurements, I/Q data analysis, and over-the-air testing for 5G NR and LTE. This flexibility makes it useful for both routine maintenance and detailed microwave signal troubleshooting.
Features:
- Signal analysis up to 54 GHz for microwave and RF testing.
- Handheld, durable design for field maintenance and troubleshooting.
- No warm-up required for accurate spectrum analyzer measurements.
- Optional measurement functions include up to 120 MHz real-time analysis bandwidth, radar pulse analysis, 5G NR and LTE over-the-air measurements, and GPS/GNSS location and time stamping
Specifications:
| Frequency Range | 9 kHz to 54 GHz |
| Battery Life | 4 hours |
| Display | 6.5" LCD |
| Maximum analysis bandwidth | Up to 120 MHz, with the required option |
| Maximum I/Q streaming bandwidth | 1 MHz, with the required option |
| RF input impedance | 50 Ω |
| RF connector | NMD 1.85 mm male |
| Ingress protection | IP53 |
