Leica DD130 Precision Utility Locator

Leica DD130 Precision Utility Locator

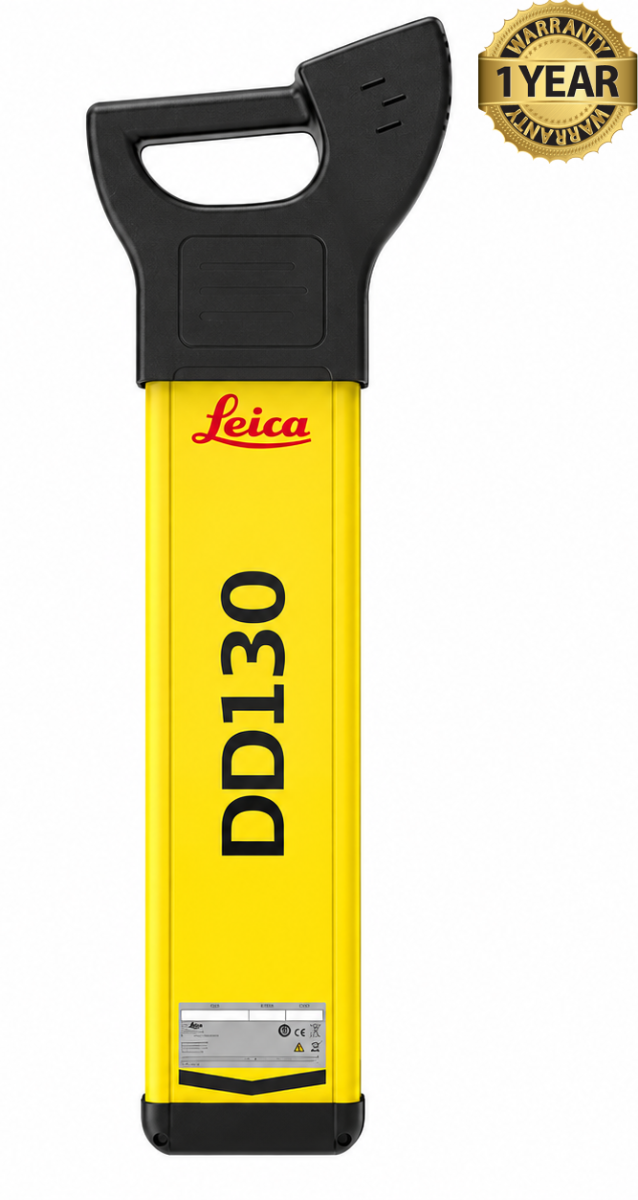

The Leica DD130 Precision Utility Locator is a handheld instrument designed to detect and trace buried cables and conductive pipes. It helps construction crews, utility technicians, and maintenance teams investigate underground services before excavation, supporting safer planning and reducing the risk of damaging utilities. Its automatic controls simplify locating with minimal manual adjustment.

The DD130 detects electromagnetic signals associated with underground services. Power mode detects signals from electrical networks, while Radio mode picks up radio signals carried by buried conductors. Auto mode combines detection modes to simplify initial searches. Used with a compatible signal transmitter, the locator can trace a deliberately applied signal along a specific utility.

The locator supports 8 kHz, 33 kHz, 512 Hz, and 640 Hz active tracing frequencies, giving operators flexibility for different locating tasks. With a compatible transmitter, it estimates utility-line depth from 0.3 to 3 meters. A compatible sonde a small transmitting probe allows depth estimation approaching 10 meters, helping locate probes inside pipes or ducts.

A visual signal-strength display and audible tones guide the operator toward detected services. Signal-current measurements help distinguish the traced utility, while the Hazard Zone function alerts users to shallow services within approximately 30 centimeters. Powered by six AA batteries, the DD130 offers approximately 15 hours of continuous use under specified conditions and has an IP54-rated enclosure for field work.

Features:

• Automatic sensitivity control for locating with minimal adjustment.
• Power, Radio, and Auto modes for detecting signals from buried utilities.
• Active tracing frequencies: 512 Hz, 640 Hz, 8 kHz, and 33 kHz with compatible transmitters.
• Utility-line depth estimation: 0.3–3 m when used with a signal transmitter.
• Sonde depth estimation: up to 9.99 m with a compatible transmitting probe.
• Signal-current measurement to help identify the utility being traced.
• Numeric signal-strength display and audible guidance.
• Hazard Zone alert for shallow services within approximately 30 cm.
• Built-in self-test to check instrument operation.
• IP54 protection against dust and water splashes.
• AA battery operation: approximately 15 hours of continuous use at 20°C.
• Operating temperature: −20°C to +50°C.
• Portable design: weighs approximately 2.7 kg, including batteries.
