Megger Bite5-ADV Advanced Battery Tester
Condition: Refurbished / Calibrated
Warranty: 1 Year Warranty
Shipping: USA & Worldwide
- Megger Bite5-ADV Advanced Battery Tester (BC# -L/T*)
- AC Adapter
- Carrying Case (G)

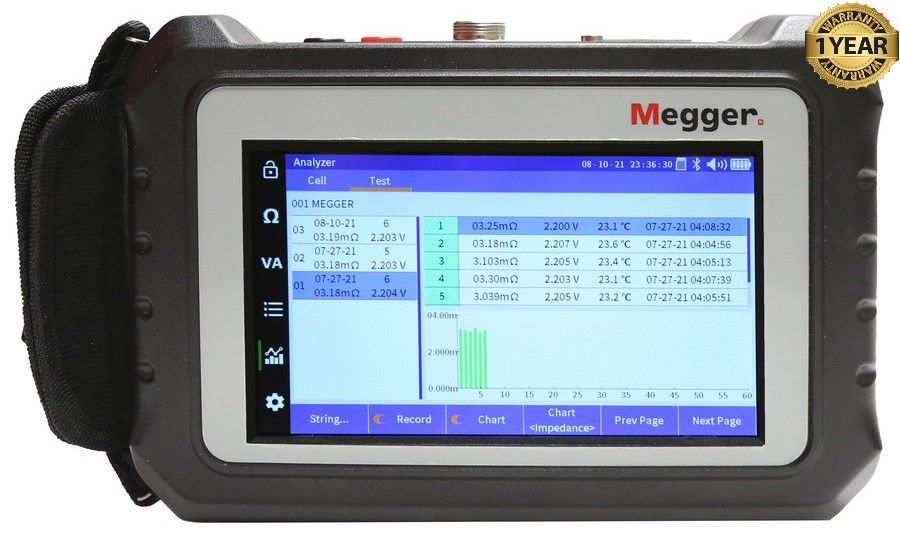

Megger Bite5-ADV Advanced Battery Tester
The Megger BITE5-ADV Advanced Battery Impedance Tester tests lead acid batteries, NiCD batteries, and lithium-ion batteries. The instrument will measure and record battery voltage, impedance, temperature, and inter-cell connections. Discharge testing is supported by the BITE5-ADV in which it will measure the voltage, current, impedance, and temperature throughout the discharge cycle.
The BITE5-ADV will measure cell impedance, cell voltage, temperature, and inter-cell connections or straps. The recorded data can be trended on the unit's screen. Users can view the trended data of each test or trend the data of each cell. Pass, warning, and fail limits can be set for voltage, impedance, and straps. Users can also record the ripple voltage, voltage current, and float current, then transfer the recorded data via USB or SD card to the PowerDB software to create custom reports and automated analysis.
The BITE5-ADV will record voltage, DC current, impedance, and temperature of each cell throughout the entire discharge test. Users can measure the average impedance at the end of the commissioning test and use this as a limit for future impedance tests. Trend the recorded data on the BITE5-ADV's touch screen and view the trended data of each test, or trend the discharge of each cell.
Features:
- Tests/measures impedance on lead acid (VLA/VRLA)/NiCD/lithium-ion batteries up to 500VDC modules
- Measures/records DC voltages up to 1000VDC
- Measures/records AC voltages up to 600VAC
- Measures inter-cell/strap resistance
- Supports battery discharge testing
- Test parallel strings without segmenting
- Ability to set PASS/FAIL/WARNING limits for voltage/impedance/straps
- RFID Tag Reader allows for rapid battery identification without manually entering data
- Wirelessly transfers data to PowerDB software via USB/SD card
- PowerDB software allows for creating custom reports/automated analysis
- Touch screen set-up/trending
- Monitoring battery recharge
Specifications:
| Input Power | |
| AC/Adapter Input | 100 to 240VAC, 50/60 Hz |
| AC/Adapter Output | 12VDC at 2.5A |
| Battery | |
| Li-ion Rechargeable Pack | 5.2 Ah |
| Voltage Rating | 7.2V |
| Charge Time | 4 Hours |
| Battery Life | 8 Hours |
| General | |
| Internal Impedance Range | 3 mΩ, 30 mΩ, 300 mΩ, 3 Ω, 30 Ω, 300 Ω |
| Temperature | 10°C to 100°C |
| Display | 160 x 90 mm touch screen |
| IP | IP54 |
