Megger IMT100 600V Industrial Multi Function Insulation Resistance Tester

Megger IMT100 600V Industrial Multi Function Insulation Resistance Tester

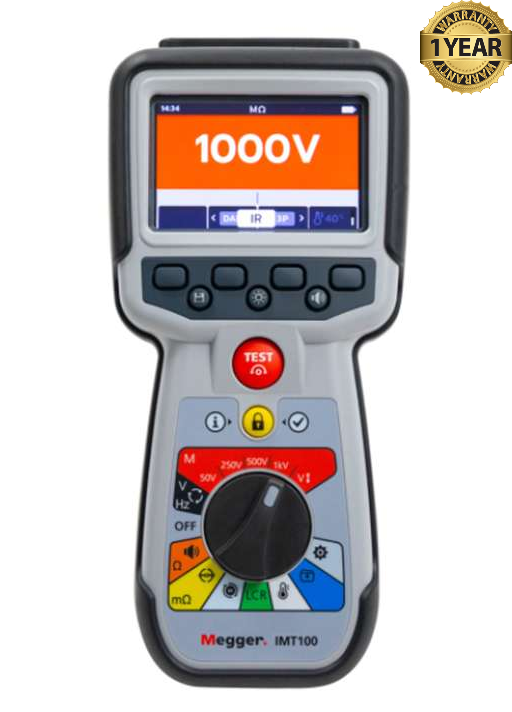

The Megger IMT100 Industrial Multi-Function Tester is a handheld instrument that combines insulation resistance, continuity, and precision low-resistance testing. It helps electricians and maintenance technicians inspect equipment, locate faults, and verify electrical connections during installation, commissioning, and maintenance. Its 600 V designation refers to its CAT III safety rating; it can generate insulation test voltages up to 1,000 V.

One of its main functions is checking the insulation around wiring and electrical components. It applies a controlled DC test voltage, measures leakage current, and calculates insulation resistance up to 200 GΩ. Timed tests, polarization index, and dielectric absorption ratio measurements provide additional information about insulation condition. A guard terminal helps reduce measurement errors caused by surface leakage.

The IMT100 also checks continuity and measures very small resistances in conductors, connections, and protective bonding paths. Its four-wire Kelvin measurement method reduces the influence of test-lead resistance, helping technicians assess connections more accurately. Its low-resistance function measures from 1 mΩ to 10 Ω using a 200 mA test current.

Additional functions include AC and DC voltage, frequency, phase rotation, diode testing, capacitance, inductance, and temperature measurement. These capabilities make it useful for industrial installations, motors, generators, solar photovoltaic systems, and electric vehicle components. Temperature compensation helps technicians compare resistance measurements taken under different temperature conditions.

Designed for field use, the IMT100 has a full-color display, protective rubber housing, and an IP54 rating for dust and splash resistance. It operates on six AA batteries and comes with rechargeable batteries and a charger. It stores up to 256 dated test results for USB export, while live-circuit detection and test-inhibit functions help protect the operator and instrument.

Features:

• Insulation resistance testing up to 200 GΩ.
• Insulation test voltages up to 1,000 V DC, with preset and adjustable settings.
• Diagnostic insulation tests: polarization index (PI), dielectric absorption ratio (DAR), timed tests, and three-phase testing.
• Guard terminal to reduce errors from surface leakage current.
• Four-wire Kelvin low-resistance testing for checking electrical connections and bonding.
• Continuity testing with adjustable audible and visual pass indications.
• True RMS AC and DC voltage measurement up to 1,000 V.
• Frequency, phase sequence, and motor rotation direction testing.
• Capacitance, inductance, resistance, and diode testing.
• Temperature measurement and temperature compensation for resistance tests.
• Full-color display with guided lead-connection diagrams.
• Storage for 256 dated test results and export to a USB drive.
• Rechargeable AA batteries and charger.
• Rugged rubber housing with IP54 dust and splash protection.
• CAT III 600 V safety rating, live-circuit detection, and test-inhibit functions.
