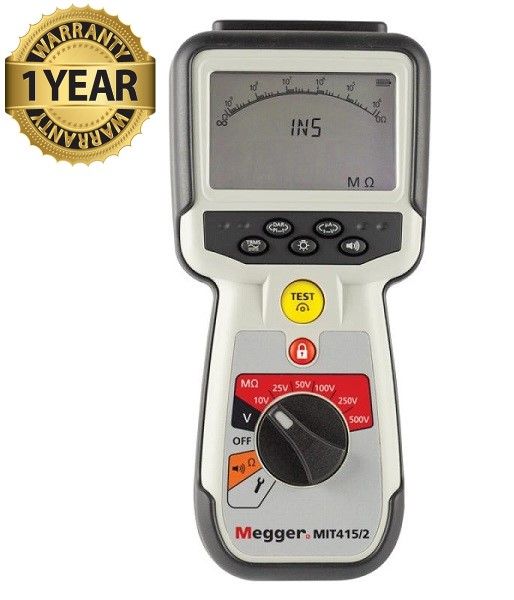

Megger MIT415/2 600V Insulation/Continuity Tester
Condition: Refurbished / Calibrated
Warranty: 1 Year Warranty
Shipping: USA & Worldwide
- Megger MIT415/2 600V Insulation/Continuity Tester (BC# -L/T*)
- Probe Lead Set
- Carrying Case (G)
Megger MIT415/2 600V Insulation/Continuity Tester
The MIT415/2 and MIT417/2 insulation and continuity testers are designed not just for Electrical and Industrial, but with an exceptionally wide range of applications from electrical installations, cable testing, motor testing, automotive, ESD, panel building, avionics, maintenance etc.
Insulation testing has been enhanced with feedback controlled test voltages to limit over-voltage to 2%, rather than the industry standard 10-20%. Continuity testing is now significantly faster, and a single auto-ranging 0.01 Ω to 1.0 MΩ function replaces the “ohms” and “KOhms” ranges. Retained are the 200 mA and 20 mA test options.
Replacing the original MIT400 instruments the new units feature a redesigned case, back-stand, and 6 cell battery compartment with separate fuse access.
All instruments are over-molded for increased protection and achieve an IP54 weatherproof rating.
The MIT415/2 and MIT417/2 include additional low voltage insulation test voltages at 10 V and 25 V for ESD and low- voltage signal-wire testing as found in elevators. The MIT415/2 also includes a display option to show 105, 106, 107 instead of the usual KΩ, MΩ, GΩ etc.
INSULATION RESISTANCE TESTING:
The established insulation test voltage is now accurate to +2% -0%. This compares to the industry standard +20%, providing a more accurate test voltage without the risk of over-voltage damage to circuits or components. The output voltage is maintained between 0 and 2% throughout the test range.
Specifications:
| Test Voltage | Nominal: MIT415/2 10 V, 25 V, 50 V, 100 V, 250 V, 500 V, MIT417/2 10 V, 25 V, 50 V, 100 V, 250 V, 500 V, 1000 V |
| Insulation Accuracy | 10 Volts. 2 GΩ ± 2% ± 2 digits ± 2.0% per 100 MΩ 25 Volts. 5 GΩ ± 2% ± 2 digits ± 0.8% per 100 MΩ 50 Volts. 10 GΩ ± 2% ± 2 digits ± 4.0% per GΩ 100 Volts. 20 GΩ ± 2% ± 2 digits ± 2.0% per GΩ 250 Volts. 50 GΩ ± 2% ± 2 digits ± 0.8% per GΩ 500 Volts. 100 GΩ ± 2% ± 2 digits ± 0.4% per GΩ 1000 Volts. 200 GΩ ± 2% ± 2 digits ± 0.2% per GΩ Service Error: BS EN 61557-2 (2007). 50V, ± 2.0% ± 2d, 100 kΩ - 900 kΩ ± 10.5% 100V, ± 2.0% ± 2d, 100 kΩ - 900 kΩ ± 10.3% 250V, ± 2.0% ± 2d, 100 kΩ - 900 kΩ ± 10.3% 500V, ± 2.0% ± 2d, 100 kΩ - 900 kΩ ± 10.3% 1000V, ± 2.0% ± 2d, 100 kΩ - 900 kΩ ± 11.5% |
| Display Range | Analogue: 1 GΩ full scale |
| Resolution | 0.1 kΩ |
| Short Circuit/Charge Current | 2 mA +0% -50% to EN 61557-2 (2007) |
| Open circuit voltage insulation | -0% +2% ± 2V |
| Test Current | 1 mA at min. pass value of insulation to a maximum of 2 mA max. |
| Leakage | 10% ±3 digits |
| Voltage | 3% ±3 digits ±0.5% of rated voltage |
| Timer Control | 60 second countdown timer |
| Continuity measurement | 0.01 Ω to 999 kΩ (0 to 1000 kΩ on analogue scale) |
