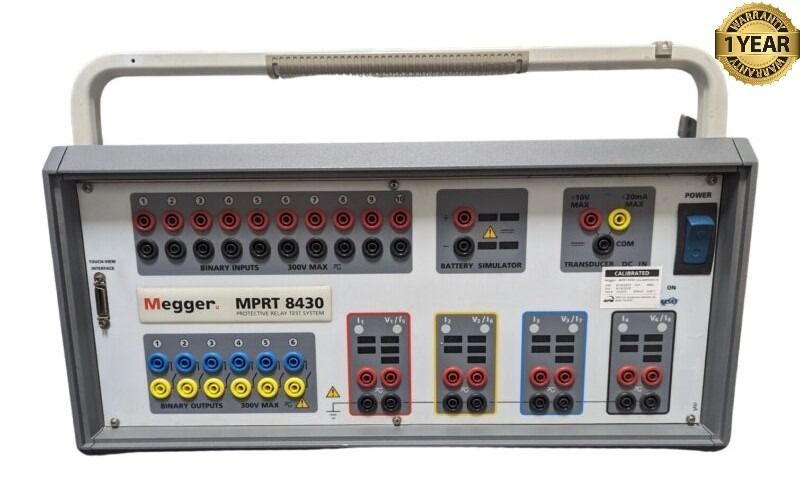

Megger MPRT8430 Protective Relay Test Set

Megger MPRT8430 Protective Relay Test Set

The Megger MPRT8430 is a modular protective relay test system designed for advanced testing of electromechanical, solid-state, and numerical protection relays used in power generation and transmission systems.. Other applications include use in government facilities, harbor and airport installations, large building complexes and by testing service companies who are increasingly interested in a highly flexible, easy-to-use relay test instruments that can help them improve their job efficiency.

The ‘Power Box’ is the heart of the system. It employs a variety of new features including unique Voltage and Current Generator (VI-Gen) components which have been combined into one amplifier package. Using multiple VI-Gens provides the flexibility to deliver four voltages (or two three-phase open delta voltages) and four currents or combinations up to eight current channel capability. The Megger MPRT8430 ‘Power Box’ also incorporates three communication ports, a new Constant Power Output (CPO) capability and everyone is made-to-order based on each customer’s individual testing requirements.

The TouchView Interface (TVI) device and AVTS Basic Software form the brains of the system. The TVI, with its large full color touch screen allows the user to perform manual and semi-automatic testing quickly and easily, using built-in, preset test routines for most popular relays. Fully automatic testing can also be performed using AVTS Basic Software which comes with the MPRT System.


Features:

• A large color touch screen display
• A built-in library of test routines for popular relays
• The ability to save and recall test results
• The ability to export test results to a PC
• Compliance with IEC 61010 safety standards

Specifications:
