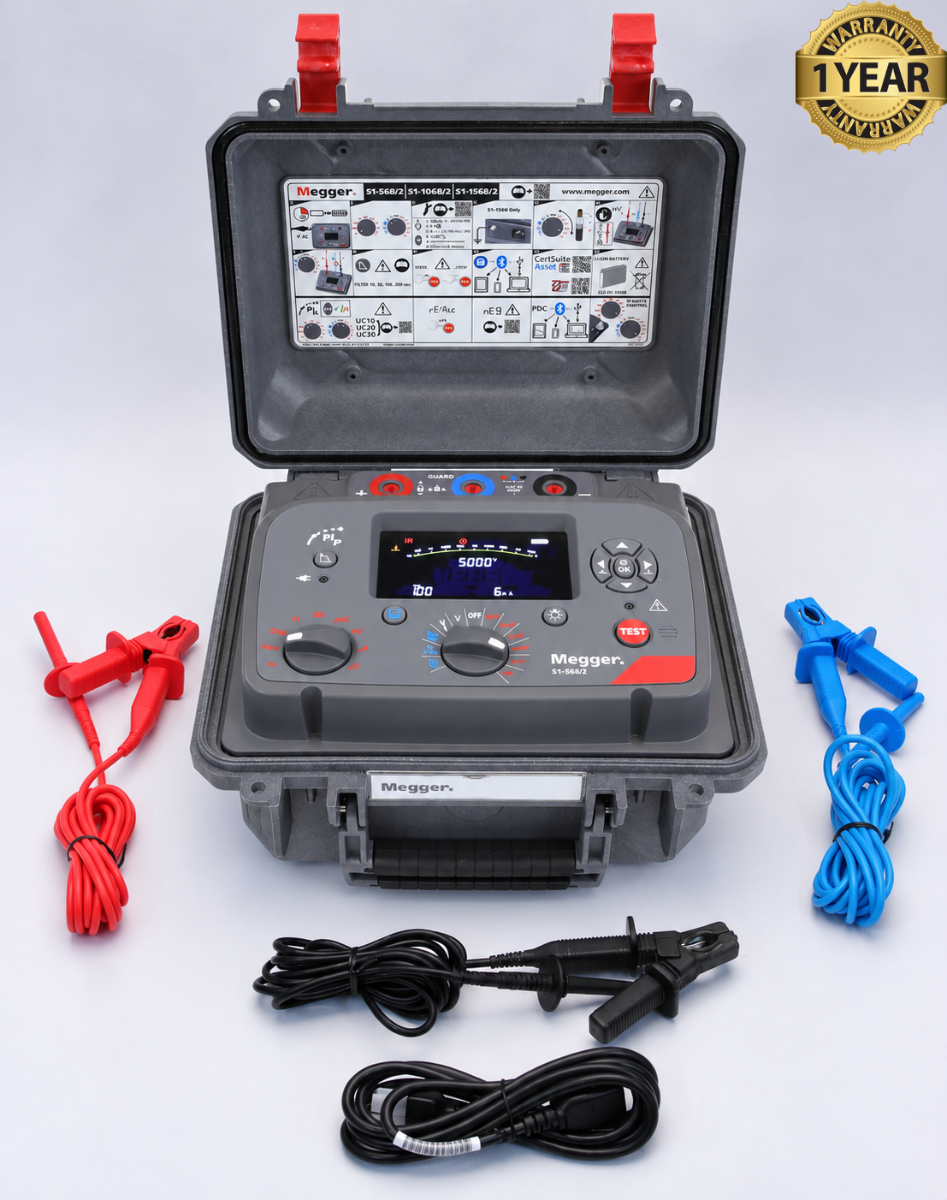

Megger S1-568/2 Expert Digital Insulation Resistance Tester
Condition: Refurbished / Calibrated
Warranty: 1 Year Warranty
Shipping: USA & Worldwide
- Megger S1-568/2 Expert Digital Insulation Resistance Tester (BC# -L/T*)
- Test Lead Set
- Power Cord
Megger S1-568/2 Expert Digital Insulation Resistance Tester
The Megger S1-568/2 Expert Digital Insulation Resistance Tester is a portable 5 kV insulation tester used to assess the condition of insulation in electrical equipment. It supports testing of assets such as cables, motors, transformers, and switchgear, helping technicians identify deterioration and plan maintenance before insulation problems lead to equipment failure.
The tester applies a controlled DC voltage and measures the resulting current to calculate insulation resistance. Its selectable output current reaches 6 mA, helping charge capacitive equipment such as long cables. Battery and AC operation allow it to support both field inspections and extended testing sessions.
Designed for electrically noisy environments, the S1-568/2 provides 8 mA noise immunity and an adaptive filter that suppresses interference. These capabilities help produce stable measurements in substations and other locations where induced electrical noise can make insulation testing difficult.
Its diagnostic functions include timed insulation resistance, polarization index, dielectric absorption ratio, dielectric discharge, ramp testing, and polarization/depolarization current testing. PI Predictor can shorten polarization-index testing, while RE>Act checks residual reabsorption current to help determine when insulation is ready for another measurement.
A backlit color display and rotary controls simplify setup and viewing results. Stored measurements can be transferred through USB or Bluetooth, and wired USB remote control allows operation from a distance. Its protective dual-case construction and CAT IV 600 V rating support use in demanding electrical maintenance environments.
Features:
- DC insulation testing up to 5 kV for cables, motors, transformers, and switchgear.
- Selectable output current from 1–6 mA, supporting faster charging of capacitive equipment.
- 8 mA noise immunity for testing in electrically noisy environments.
- Adaptive filtering to suppress interference and stabilize readings.
- Diagnostic tests: insulation resistance, timed resistance, polarization index (PI), dielectric absorption ratio (DAR), dielectric discharge (DD), ramp, and polarization/depolarization current (PDC).
- PI Predictor to estimate polarization index sooner than a conventional ten-minute test.
- RE>Act mode to assess residual reabsorption current before retesting and monitor discharge afterward.
- Guard terminal to reduce the effect of surface leakage on measurements.
- Backlit color display and rotary controls.
- Internal storage for time-stamped test results.
- USB and Bluetooth connectivity for transferring and streaming results.
- Remote control through USB.
- Rechargeable battery and AC mains operation.
- Protective dual-case construction.
- CAT IV 600 V safety rating, specified up to 3,000 m altitude.
| Specification | Details |
|---|---|
| Manufacturer / Model | Megger S1-568/2 |
| Instrument type | Digital insulation resistance tester |
| Maximum test voltage | 5 kV DC |
| Preset test voltages | 250, 500, 1,000, 2,500, 5,000 V |
| Resistance range at 5 kV | 10 kΩ–15 TΩ |
| Resistance accuracy at 5 kV | ±5% through 1 TΩ; ±20% through 10 TΩ |
| Selectable charging current | 1–6 mA in 1 mA steps |
| Noise immunity | Up to 8 mA, subject to voltage conditions |
| Filtering | Adaptive filter; selectable averaging settings |
| Test modes | IR, timed IR, DAR, PI, step voltage, DD, PDC, ramp |
| Additional functions | PI Predictor; RE>Act |
| Capacitance range | 10 nF–25 µF; test voltage above 500 V |
| Voltmeter range | 30–660 V AC/DC |
| Voltmeter accuracy | ±3% ±3 V |
| Timer | 15 seconds–99 minutes 59 seconds |
| Logging capacity | 11 hours at five-second intervals |
| Connections | USB Type-B; Bluetooth |
| Remote control | USB; remote-control dongle required |
| Display | Backlit color display |
| Battery | 10.8 V, 5.2 Ah lithium-ion |
| Typical battery runtime | Six hours at 5 kV into 100 MΩ |
| Charging time | Approximately 2–2.5 hours |
| AC input | 90–264 V, 50/60 Hz |
| Protection rating | IP65 closed; IP40 open |
| Safety rating | CAT IV 600 V |
| Maximum altitude | 3,000 m |
| Operating temperature | −20 to +50°C |
| Storage temperature | −25 to +65°C |
