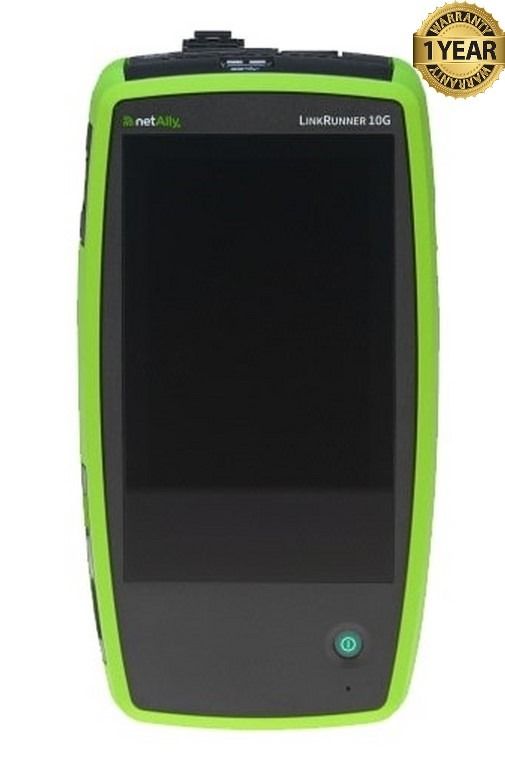

NetAlly Linkrunner 10G Advanced Ethernet Tester
$6,195.00
Availability:
In stock
SKU
6H92
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- NetAlly Linkrunner 10G Advanced Ethernet Tester (BC# -L/T*)
- AC Adapter
- Carrying Case
Request a Quote for
NetAlly Linkrunner 10G Advanced Ethernet Tester
Introducing the new LinkRunner 10G, the most cost-effective solution for 10 Gig network testing. LinkRunner 10G simplifies testing and configuration of copper and fiber Ethernet networks, streamlining workflows by combining essential functions of installation and triage in a single, ruggedized unit.
Introducing the new LinkRunner 10G, the most cost-effective solution for 10 Gig network testing. LinkRunner 10G simplifies testing and configuration of copper and fiber Ethernet networks, streamlining workflows by combining essential functions of installation and triage in a single, ruggedized unit.
This next-generation Android-based tester delivers complete network validation and troubleshooting, from the media (copper/fiber) to the application (layers 1 – 7), accelerating deployments, speeding problem identification, and improving the efficiency and effectiveness of network installers and operations teams.
Features
Features
- Install, test, verify, and troubleshoot technology upgrades, Multi-Gig (NBASE-T) and 10G networks with advanced Android-based troubleshooting apps and purpose-built test hardware
- Physical layer testing includes cable (TDR) testing, toning, wire mapping, and cable SNR (Signal-to-Noise Ratio) for Multi-Gig links
- Compatibility with standards compliant SFPs enables test and validation of any wired media (copper or fiber) for a variety of use models
- Validate up to 90W 802.3bt PSE with TruePower loaded Power over Ethernet (PoE) test
- Serves as a peer to the EtherScope nXG for line-rate performance testing to verify network capacity, performance and QoS, as well as service provider SLAs between sites
- NEW! LANBERT Media Qualification app tests the capability of premise cabling and media components for carrying Multi-Gig and 10Gig Ethernet
Specifications:
| Battery | Rechargeable lithium-ion battery pack (7.2 V, 6.4 A, 46 Wh) |
| Battery life | Typical operating life is 3-4 hours (Battery life from full charge varies depending on the feature being used. Typical charge time is 3 hours |
| Display | 5.0-inch color LCD with capacitive touchscreen (720 x 1280 pixels) |
| Host interfaces | RJ-45 and SFP Analysis ports RJ-45 Cable Test and Management Port USB Type-A Port and USB Type-C On-the-Go Port |
| SD card slot | Supports Micro SD card storage - up to 64GB supported |
| Memory | Approximately 8 GB available for storing test results and user applications |
| Supported IEEE Standards |
Wired: 802.3/ab/ae/an/bz/i/u/z PoE: 802.3af/at/bt, Class 0-8 and UPOE |
| Charging |
USB Type-C 45W adapter: 100-240 Vac, 50-60 Hz; DC Output Power 15 V (3 A) |
| Operating Temperature |
32°F to 113°F (0°C to +45°C) NOTE: The battery will not charge if the internal temperature of the device is above 122°F (50°C). |
| Operating relative humidity (% RH without condensation) |
90% (50°F to 95°F; 10°C to 35°C) 75% (95°F to 113°F; 35°C to 45°C) |
| Storage temperature | -4°F to 140°F (-20°C to +60°C) |
| Safety | IEC 61010-1:2010: Pollution degree 2 |
| Altitude | Operating: 4,000 m; Storage: 12,000 m |
| EMC | IEC 61326-1: Basic Electromagnetic Environment; CISPR 11: Group 1, Class A |
