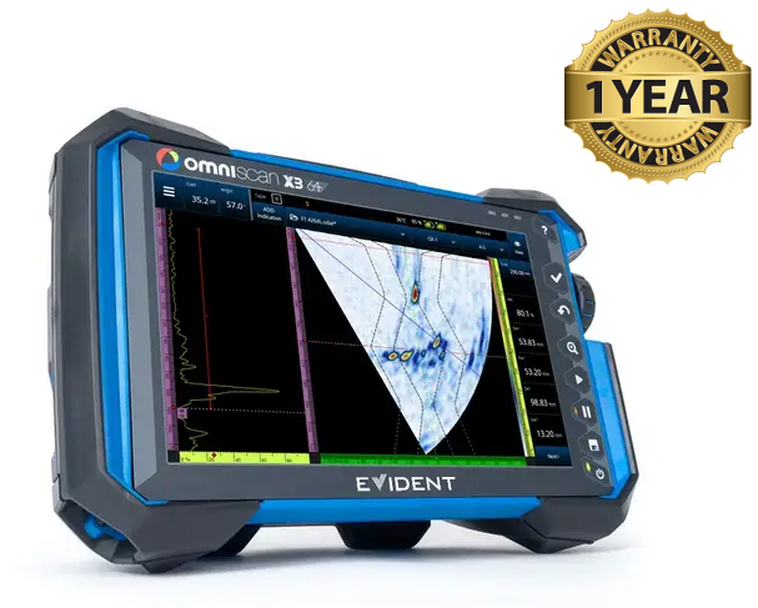

Evident OmniScan X3 PA 64:128 Ultrasonic Flaw Detector Phased Array
Condition: Refurbished / Calibrated
Warranty: 1 Year Warranty
Shipping: USA & Worldwide
- Evident OmniScan X3 64:128 PA Ultrasonic Flaw Detector
- AC Adapter/Charger
- Power Cord
- Carrying Case (G)
Evident OmniScan X3 Ultrasonic Flaw Detector
The Olympus OmniScan X3 Phased Array Ultrasonic Testing / PAUT Flaw Detector is a reliable device capable of performing a variety of functions. The combination of the OmniScan X3 flaw detector’s live total focusing method (TFM) envelope processing, up to 1,024 × 1,024 grid resolution, and vibrant color display make its TFM images stand out with exceptional detail. Defects appear sharp and clear with high resolution. The Olympus OmniScan X3's Acoustic Influence Map (AIM) tool provides an instant visual model of the sensitivity based on mode, settings, and simulated reflector. The tool can visualize the effect of a wave set (in TFM mode), see where sensitivity stops, and adjust the scan plan accordingly.
The improved Phase Array of the Olympus OmniScan X3 Flaw Detector is quick and efficient featuring 800% high amplitude range which reduces the need to rescan. This detector is compatible with existing files, setups, probes, and scanners from MX/MX2/SX models to compare old and new data as well as changes over time. The OmniScan X3's 25 GB maximum file size enables to continuously scan large components without stopping. With IP65 rain and dust proof certification, GPS to record the location of data obtained, and wireless connectivity, the Olympus OmniScan X3's uses are varied and plentiful.
Features:
- 3 Times as fast as the Omniscan MX2 Flaw Detector
- Single time of flight diffraction(TOFD) menu for accelerated workflow
- Improved fast phased array calibration
- 800% high amplitude range reduces the need for rescan
- Compatible with existing probes and scanner
| Size (W × H × D) | 335 mm x 221 mm x 151 mm (13.2 in. x 8.7 in. x 5.9 in.) |
| Weight | 5.7 kg (12.6 lb) (with 1 battery) |
| Hard Drive Capacity | OmniScan X3 : Internal 64 GB SSD OmniScan X3 64 : Internal 1TB SSD extendable using an external USB drive |
| Storage Devices | SDHC and SDXC cards or most standard USB storage devices Compatible only with NTFS and FAT32 formats. |
| Max Onboard File Size | 25 GB |
| GPS | Yes (unless specified otherwise for some regions) |
| Alarms | 3 |
| Wireless Connection | Yes – wireless LAN dongle included in the package (model varies according to region) |
| PA Connectors | 1 connector |
| UT Connectors | 4 (2 channels P/R) |
| Certifications | ISO 18563-1:2015 ISO-22232-1:2020 |
| Display | |
| Type | TFT LCD with resistive touch screen |
| Size | 269 mm (10.6 in.) |
| Resolution | 1280 × 768 pixels |
| Number of Colors | 16 million |
| Viewing Angles | Horizontal: −85° to 85° Vertical: −85° to 85° |
| I/O Ports | |
| USB 2.0 | 2 ports (one hidden behind the battery) |
| USB 3.0 | 1 port |
| Video Output | Video out (HDMI) |
| Memory Card | SDHC port |
| Communication | Ethernet |
| I/O Lines | |
| Encoder | 2-axis encoder line (quadrature quadrature direction) |
| Digital Input | 6 digital inputs, TTL |
| Digital Output | 5 digital outputs, TTL |
| Acquisition On/Off Switch | Through the configuration of a digital input |
| Power Output Line | 5 V nominal, 1 A (short-circuit protected), and 12 V output at 1 A |
| External DC Supply | |
| DC-IN Voltage | 15 VDC to 18 VDC (min. 50 W) |
| Connector | Circular, 2.5 mm pin diameter, center-positive |
| Battery | |
| Type | Lithium-ion battery |
| Capacity | 87 Wh |
| Number of Batteries | 2 |
| Life | 5 hours using 2 batteries (hot-swap capable) |
| PA/UT Configuration | |
| Bit Depth | 16 bits |
| Maximum PRF | 20 kHz |
| Frequency | |
| Effective Digitizing Frequency | Up to 100 MHz |
| Display | |
| Refresh Rate | A-scan: 60 Hz; S-scan: 20 Hz to 30 Hz |
| Envelope (echo-dynamic mode) | Yes: Volume-corrected S-scan (30 Hz) |
| A-Scan Height | Up to 800% |
| Synchronization | |
| On Internal Clock | 1 Hz to 10 kHz |
| External Pace | Yes |
| On Encoder | On 2 axes: from 1 to 65,536 steps |
| Maximum Number of A-Scan Data Points | Up to 16,384 |
| Real-Time Averaging | PA: 2, 4, 8, 16 UT: 2, 4, 8, 16, 32, 64 |
| Rectification | RF, full wave, half wave+, half wave- |
| Filtering | PA channel (OmniScan X3): 8 low-pass, 6 band-pass, and 4 high-pass filters PA channel (OmniScan X3 64): 9 band-pass and 7 high-pass filters UT channel: 8 low-pass, 6 band-pass, and 4 high- pass filters (3 additional filters when configured in TOFD) |
| Video Filtering | Smoothing (adjusted to the probe frequency range) |
| Programmable TCG | |
| Number of Points | 32: One TCG (time-corrected gain) curve per focal law |
| Range | PA (standard): 40 dB per step of 0.1 dB UT: 100 dB per step of 0.1 dB |
| Maximum Slope | PA (standard): 40 dB/10 ns UT: 40 dB/10 ns |
|
Model |
OmniScan X3 |
OmniScan X3 64 |
Both |
|---|---|---|---|
|
Pulser |
PA Channel |
PA Channel |
UT Channels |
|
Voltage |
40 V, 80 V, and 115 V |
10 Vpp, 20 Vpp, 40 Vpp, 80 Vpp, 120 Vpp, and 160 Vpp |
85 V, 155 V, and 295 V |
|
Pulse Width |
Adjustable from 30 ns to 500 ns; resolution of 2.5 ns |
Adjustable from 30 ns to 1000 ns (half period of bipolar pulse or duration of negative of pulse); resolution of 5 ns |
Adjustable from 30 ns to 1,000 ns; resolution of 2.5 ns |
|
Fall Time |
< 10 ns |
< 10 ns |
< 10 ns |
|
Pulse Shape |
Negative square pulse |
Bipolar negative-positive square pulse Negative square pulse |
|
|
Output Impedance |
28 Ω in pulse-echo |
35 Ω |
< 30 Ω |
|
Receiver |
PA Channel |
- |
UT Channels |
|
Gain Range |
0 dB to 80 dB maximum input signal; 550 mVp-p (full-screen height). |
0 dB to 80 dB; maximum input signal 900 mVp-p (full-screen height). |
0 dB to 120 dB maximum input signal; 34.5 Vp-p (full-screen height). |
|
Input Impedance |
57 Ω ± 10% at 9 MHz in pulse-echo |
120 Ω ±10 % at 13 MHz |
50 Ω in pulse-echo mode |
|
System Bandwith |
0.5 MHz to 18 MHz |
0.2 MHz to 26.5 MHz |
0.25 MHz to 28 MHz |
|
Beam Formation |
PA Channel |
- |
UT Channels |
|
Scan Type |
Single, linear, sectorial, compound, and TFM |
- |
- |
|
Maximum Aperture |
OMNIX3-PATFM1664PR = 16 elements |
OMNIX3-PATFM64128PR = 64 elements |
- |
|
Number of Receiving Elements |
OMNIX3-PATFM1664PR = 64 receiving elements |
OMNIX3-PATFM64128PR =128 elements |
- |
|
Number of Focal Laws |
Up to 1024 |
- |
- |
|
Delay Range Transmission |
0 µs to 10 µs in 2.5 ns increments |
0 µs to 10 µs in 5 ns increments |
- |
|
Delay Range Reception |
0 µs to 6.4 µs in 2.5 ns increments |
- |
- |
