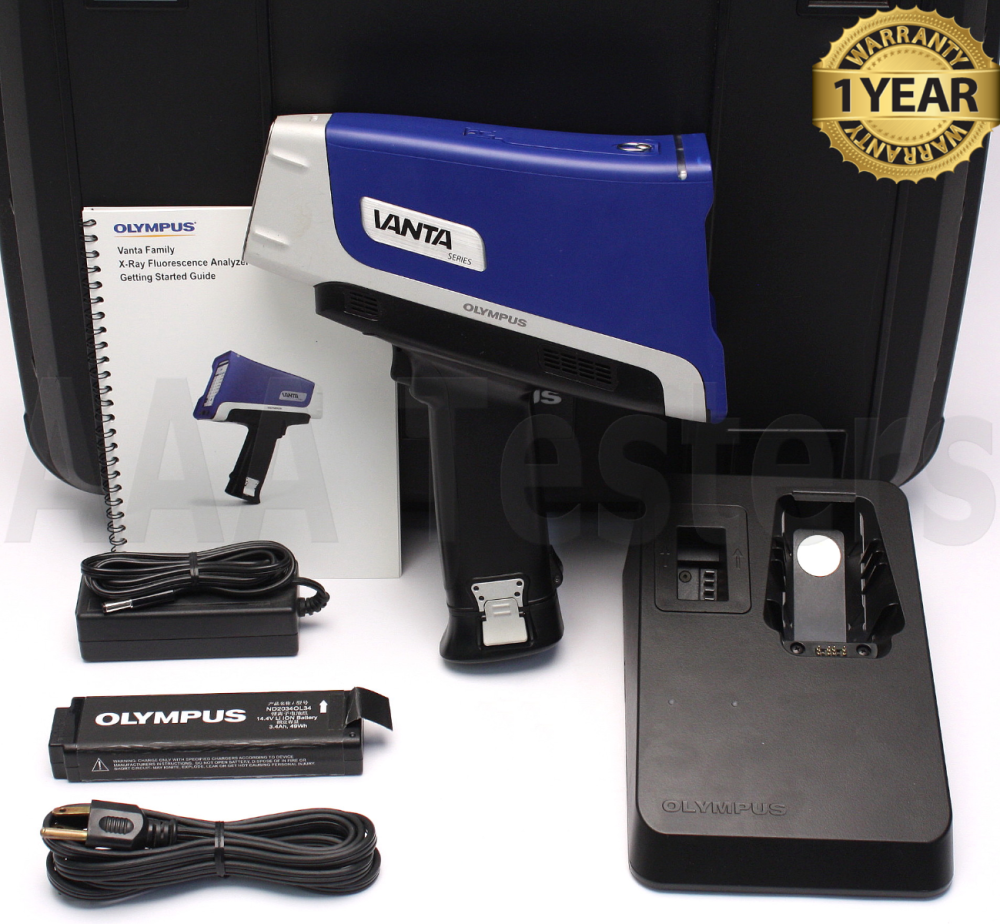

Olympus Vanta C Series VCR Handheld XRF Analyzer w/ Alloy Plus
Condition: Refurbished / Calibrated
Warranty: 1 Year Warranty
Shipping: USA & Worldwide
- Olympus Vanta C Series VCR Handheld XRF Analyzer w/ Alloy Plus: (BC# -L/T*)
- Option Alloy Plus
- Battery Pack
- Power Cord
- Carrying Case (G)
Olympus Vanta C Series VCR Handheld XRF Analyzer w/ Alloy Plus
Use the Olympus Vanta C-Series Handheld XRF Analyzer for fast, on-site industrial lead-paint testing on steel structures, equipment, bridges, and building components. This analyzer provides non-destructive screening for lead (Pb) and other heavy metals in coatings, primers, and painted surface helping safety professionals, environmental contractors, and coating inspectors verify compliance and support remediation projects.
Unlike consumer or HUD-certified lead-paint analyzers, this model is configured specifically for industrial and occupational use where coatings are often thick, multilayered, or applied to metallic substrates.
The Vanta C-Series features a 50 kV Rhodium X-ray tube and high-resolution silicon drift detector (SDD), offering sensitive detection of lead, chromium, cadmium, arsenic, zinc, and other metals commonly found in industrial coatings. Each reading is displayed in seconds with clear on-screen pass/fail or quantitative Pb results (ppm or wt %).
This unit is ideal for screening painted steel, concrete, and composite surfaces in manufacturing plants, refineries, shipyards, and other regulated industrial environments.
Alloy Plus
This portable XRF analyzer is equipped with the Alloy Plus option, enabling advanced capabilities for identifying complex alloys and ensuring compliance with industry standards. Whether you’re working in manufacturing, recycling, or quality control, the Vanta VCR Series is a trusted tool for non-destructive testing (NDT) that saves time and enhances productivity.
Features
- Rapid, non-destructive lead (Pb) detection in industrial coatings
- Measures metals such as Cr, Cd, Zn, Cu, Fe, Ni, Sn, and As
- Configured for industrial surfaces/components/coatings — not HUD residential testing
- High-resolution SDD detector for accurate surface readings
- 50 kV Rhodium X-Ray tube provides deep penetration for heavy coatings
- Field-ready design (IP65/67, MIL-STD-810G drop tested)
- Simple point-and-shoot operation with instant results
- Optional test stand for small or flat components
Specifications
| Excitation source | 4-Watt X-ray tube with application optimized anode material (rhodium (Rh), silver (Ag), or tungsten (W)) M Series (Rh & W) and C Series (Ag): 8-50 kV C Series (Rh & W): 8-40 kV |
| Primary Beam Filtration | 8-position auto selected filter per beam per mode |
| Detector | M Series: Large area Silicon Drift Detector C Series: Silicon Drift Detector |
| Operating Environment | Temperature: -10 °C to 50 °C (continuous duty cycle with optional fan) Humidity: 10% to 90% relative humidity non-condensing |
| Drop Test | Military Standard 810-G 4-foot (1.3 M) drop test |
| IP Rating | IP65*: dust tight and protected against water jets from all directions |
| Pressure Correction | Built-in barometer for automatic altitude and air density correction |
| Power | Removable 14.4 V Li-Ion battery or 18 V power transformer 100-240 VAC, 50-60 Hz, 70 W max |
| Display | 800 x 480 (WVGA) LCD with capacitive touch-screen supporting gesture control |
| Data storage | 4 GB embedded storage, micro SD slot for expandable storage |
| USB | (2) USB 2.0 type A host ports for accessories such as Wireless LAN Bluetooth, and USB flash drives. (1) USB 2.0 type mini-B port for connection to computer |
| Wireless LAN | Supports 802.11 b/g/n (2.4 GHz) via optional USB adapter |
| Aiming Camera | Full VGA CMOS camera |
| Panorama Camera | 5-megapixel CMOS camera with autofocus lens |
