Pruftechnik Rotalign Pro Laser Shaft Alignment System w/ Laser & Receiver
Condition: Refurbished / Calibrated
Warranty: 1 Year Warranty
Shipping: USA & Worldwide

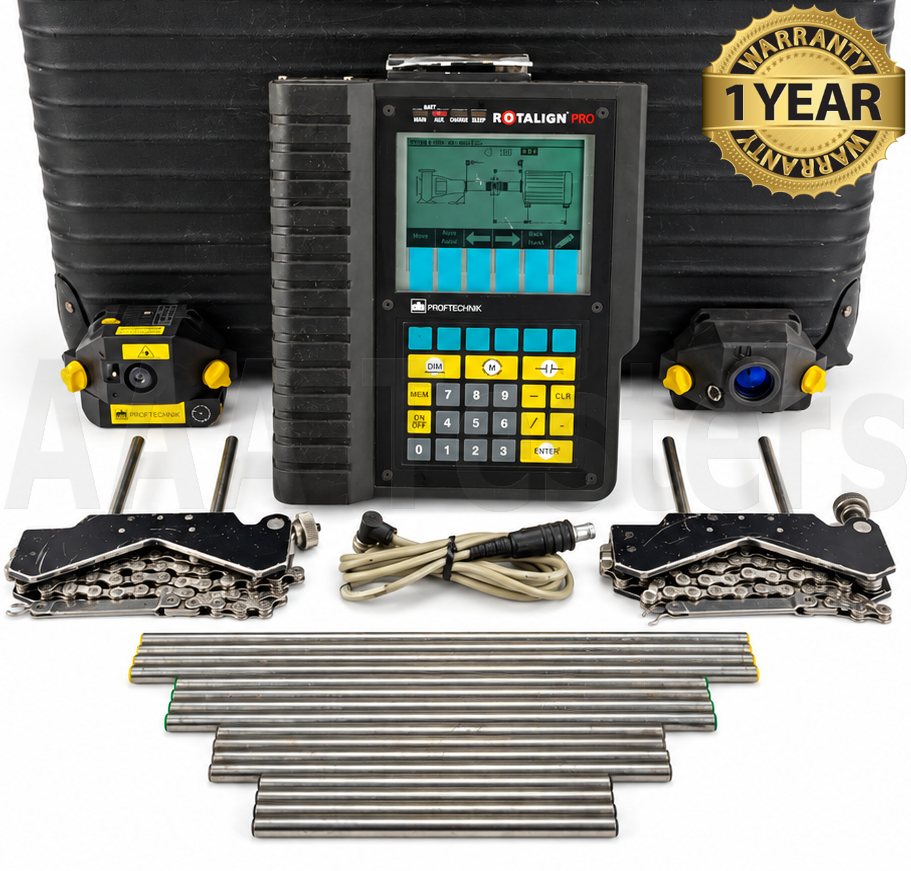

- Pruftechnik Rotalign Pro Laser Shaft Alignment System 3.550 (BC# 39700-L/T*)
- Pruftechnik Rotalign Laser ALI 3.610 (BC# 20910M-L/T*)
- Pruftechnik Rotalign Receiver ALI 3.600 (BC# 20909M-L/T*)
- Pruftechnik Rotalign Receiver Cable ALI 3.584-2
- (2) Brackets w/ Chain
- (3) Chains
- (12) Support Posts w/ Case
- Hard Carrying Case
Pruftechnik Rotalign Pro Laser Shaft Alignment Tool
Taking professional alignment to a higher level
As maintenance technicians’ job responsibilities grow more varied, so does the need for an alignment system to do more. Most systems can deal with horizontal and vertical machinery and measure soft foot. Some can measure misalignment uncoupled – but the new ROTALIGN® PRO does much more. It lets you align machine trains of up to six machines, calculating which machine feet to move in order to reduce work to a minimum.
It not only measures soft foot but also analyzes it and suggests corrective action. It can even compute thermal growth for you. But ROTALIGN® PRO does not stop at the alignment of rotating machines: it also features an optional program for accurate single-pass straightness measurement.
Expertise for everyone
ROTALIGN® PRO makes quick, accurate shaft alignment simple for new users, yet offers experts the functions they need in order to master special challenges such as machine trains and cardan shafts, flange-mounted machines and nonrotatable shafts – all just a few keystrokes away.
Quick and easy setup
The job setup screen gets you up and running quickly with a clear, yet detailed diagram of the machines to be aligned. The same screen also lets you add machines to new or existing trains, specify coupling types and dimensions, RPM, amount of thermal growth and much more!
Measures all by itself!
Simply adjust the laser beam, then rotate the shafts to begin measurement: in less than a quarter-turn, ROTALIGN® PRO automatically registers enough points to determine alignment accurately.
The whole picture at a glance
ROTALIGN® PRO shows you the complete alignment condition in a single clear screen: coupling misalignment, machine foot corrections, even tolerance compliance indicated by 'happy faces' for horizontal and vertical planes.
The right brackets for all your machines
Quite possibly the only bracket you'll ever need: the standard ROTALIGN® PRO compact chaintype bracket ALI 2.891set uses interchangeable parts to fit onto shafts and solid couplings ranging from 15 mm to 500 mm (5/8" to 20") in diameter in a matter of seconds!
Instant mounting on any ferromagnetic surface: just place the timesaving ALI 2.112 compact magnetic brackets onto coupling flanges or shaft faces and you're all set! Powerful magnets hold sensors rigidly in place for measurement, yet allow extremely easy, flexible adjustment.
Shafts can't be rotated? No problem with ROTALIGN® PRO! Simply place the ALI 2.230 magnetic sliding bracket onto the coupling flange or shaft end and slide it around the circumference to take measurements in seconds. Suitable for shaft/coupling diameters from approx. 80 mm (3 1/8") on up.
PRO as in ‘protection’
ROTALIGN® PRO means industrialstrength alignment: its shockproof, IP67 rubberized components remain unaffected by water spray, grime and solvents, while the rugged flat keyboard gives a positive response even through heavy work gloves. The lockable flight case (shown here in optional matte aluminum) keeps all standard system components and frequently-used accessories in perfect order.
Specifications:
| Laser emitter | |
| Laser | GaAlAs semiconductor laser |
| Wavelength | 675 nm (typical) |
| Beam diameter | 5 mm |
| Beam divergence | < 0.3 mrad |
| Beam power | < 1 mW |
| Laser safety class | Class 2; FDA 21CFR 1000 and 1040 |
| Safety precautions | Do not look into laser beam. |
| Power supply | 9V block battery, IEC 6LR61 (alkaline or lithium) |
| Operating time, continuous | 80 hours, depending upon battery type |
| Temperature range | 32°F -140°F (0°C - 60°C) |
| Weight | Approx. 5.8 oz. (165 g) |
| Laser receiver | |
| Directions of 5-axis | 2 planes (4 displacement axes) |
| detector measurement | 1 inclination 360° (angle to plumb) |
| Two detector areas | 0.7" x 0.7" (18 mm x 18 mm) each |
| Separation between measurement planes | Approx. 6 1/4" (160 mm) |
| Resolution | 0.04 mil (1 µm) ; angular 10 µRad |
| Error | < 2% |
| Error rotation angle | < 2% |
| Measurement rate | Approx. 20 Hz |
| Temperature range | 32°F -140°F (0°C - 60°C) |
| Weight | Approx. 6.7 oz. (190 g) |
| Laser emitter/receiver | |
| Max. measurement separation between emitter and receiver | 33 ft. (10 m) |
| Measurement stability | Ensured by temperature-stabilized light metal housing |
| Environmental protection | Shockproof, waterproof, dustproof (IP 67) |
| Protection from ambient light | Yes |
| Dimensions, W x H x D | Approx. 4 1/8" x 2 5/8" x 1 7/8" (105 x 67 x 47 mm) |
| Computer | |
| LCD screen | 2 3/8" x 3 3/4" (60 x 95 mm), 200 x 320 pixels, with contrast control |
| LED indicators | Main battery low, auxiliary battery low, battery charging, 'sleep' mode |
| Power conservation | 'Sleep' mode blanks screen, interrupts measurement after user-defined period of nonuse; automatic shutoff after a further user-defined period |
| Keyboard | 6 variable-function keys (soft keys) 20 fixed-function keys (hard keys) |
| External interface | RS-232C (serial) and parallel printer interface for graphics or text reports and instant screen dumps |
| Memory | Nonvolatile 4MB PCMCIA card, stores over 1000 measurement sets with labels, comments etc |
| Power supply | 6x 1.5V (IEC LR 14) Size "C" (alkaline standard, NiCad rechargeable optional) Optional: Lithium-Ion battery rechargeable by computer Optional: ALI 3.576 mains adapter for 110V/220V (switchable), output 400 mA min. at 12V ± 5% |
| Auxiliary battery | 9V block (IEC 6LR61), provides 20 - 40 min. operation |
| Backup battery | Lithium (laser welded type), maintains data memory for 5 years |
| Operating time, computer/receiver | 50 hours (alkaline batteries) 25 hours (NiCad batteries) 10 hours (Lithium-Ion battery pack) |
| Environmental protection | Waterproof, dustproof, shockproof (IP67) |
| Operating temperature | 32° F - 113° F (0° C - 45° C) |
| Dimensions, W x H x D | Approx. 8 1/4" x 9 1/2" x 2 3/4" (210 x 240 x 70 mm) |
| Weight with battery | Approx. 3.8 lb. (1.75 kg) |
