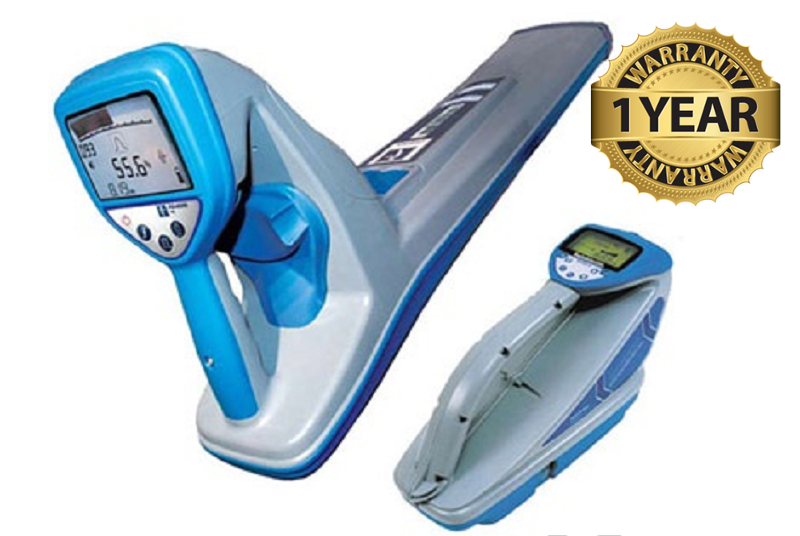

RadioDetection RD4000PDL Cable & Pipe Locator w/ T10 Transmitter
$1,399.00
Availability:
Out of stock
SKU
1CP27
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
Request a Quote for
- RadioDetection RD4000PDL Locator (BC# -L/T*)
- RadioDetection RD4000T10 Transmitter (BC# -L/T*)
RadioDetection RD4000PDL Pipe
& Cable Locator
Best in class high-end pipe and cable location
The Radiodetection RD4000 cable and pipe locator is widely seen as the industry standard, with the highest locate performance, multiple locate modes and simplicity of use. Whether locating utilities and marking for construction, mapping or fault finding. The RD4000 series is the product against which all others are measured.
Properly locating buried utilities can avoid costly outages and avoid major hazards associated with inadvertent contact during excavation. While it is important to utilize the best products available, it is equally as important to adhere to the best and safest practices to assure a safe and productive job site. Radiodetection, the world leader in the design and manufacture of underground locating equipment, provides equipment and practices needed to assure optimum accuracy and safety for every locate scenario.
Highest performance
The RD4000 utilizes a powerful, advanced digital measurement and processing system that is far ahead of any others. The patented signal-processing algorithm provides improved performance and accurate results, even in the most congested of areas. Users will quickly discover that the RD4000 always delivers repeatable accurate locates, even in the most difficult of circumstances.
Multiple modes
RD4000 models are available to address the specific needs of various sectors. Increasingly, companies are outsourcing mark before dig and utility mapping. Recognizing that there is no single location mode or frequency guaranteed to locate a given pipe or cable, RD4000 has options to optimize the location task. Whatever the location requirement there is an RD4000 solution.
Ease of use
Repeatability and ease of use is delivered through the ergonomic design and features of the RD4000. A large, clear, automatically back-lit LCD display and a highly responsive gain paddle give users of all levels an unmatched confidence in their RD4000 locator. It is through attention to detail that Radiodetection have delivered a powerful and sophisticated tool that is simple to use.
Extended capabilities
The RD4000 family of locators is supported by a wide range of plug-and-play accessories, such as fault locating A-Frames for locating cable sheath faults or pipe coating defects, receiver clamps and stethoscopes for cable identification. RD4000 receivers provide seamless integration with most GPS receivers and data recording devices, making the RD4000 perfect for both novice and advanced users.
Features:
Specifications:
T10 Transmitter specifications:
For full RadioDetection RD4000PDL T10 Cable Pipe Locator product specifications, please click here: RadioDetection RD4000PDL T10
Best in class high-end pipe and cable location
The Radiodetection RD4000 cable and pipe locator is widely seen as the industry standard, with the highest locate performance, multiple locate modes and simplicity of use. Whether locating utilities and marking for construction, mapping or fault finding. The RD4000 series is the product against which all others are measured.
Properly locating buried utilities can avoid costly outages and avoid major hazards associated with inadvertent contact during excavation. While it is important to utilize the best products available, it is equally as important to adhere to the best and safest practices to assure a safe and productive job site. Radiodetection, the world leader in the design and manufacture of underground locating equipment, provides equipment and practices needed to assure optimum accuracy and safety for every locate scenario.
Highest performance
The RD4000 utilizes a powerful, advanced digital measurement and processing system that is far ahead of any others. The patented signal-processing algorithm provides improved performance and accurate results, even in the most congested of areas. Users will quickly discover that the RD4000 always delivers repeatable accurate locates, even in the most difficult of circumstances.
Multiple modes
RD4000 models are available to address the specific needs of various sectors. Increasingly, companies are outsourcing mark before dig and utility mapping. Recognizing that there is no single location mode or frequency guaranteed to locate a given pipe or cable, RD4000 has options to optimize the location task. Whatever the location requirement there is an RD4000 solution.
Ease of use
Repeatability and ease of use is delivered through the ergonomic design and features of the RD4000. A large, clear, automatically back-lit LCD display and a highly responsive gain paddle give users of all levels an unmatched confidence in their RD4000 locator. It is through attention to detail that Radiodetection have delivered a powerful and sophisticated tool that is simple to use.
Extended capabilities
The RD4000 family of locators is supported by a wide range of plug-and-play accessories, such as fault locating A-Frames for locating cable sheath faults or pipe coating defects, receiver clamps and stethoscopes for cable identification. RD4000 receivers provide seamless integration with most GPS receivers and data recording devices, making the RD4000 perfect for both novice and advanced users.
Features:
- Highest performance digital Receiver even in the presence of interference
- Fast, clear, positive response even in congested areas
- Multiple active frequencies and modes provides sophisticated location tools
- Peak, null and single antenna modes
- Location and depth measurement
- Current measurement to identify individual networks
- Real Sound; helps distinguish the signal from random background noise
- High output Transmitters to locate deep utilities, long lengths and handle complex locates
- Fault finding and cable and pipe integrity measurement
- Current direction RD patented
- MRx option for simultaneous locate of utility marker balls
- Highest locate performance with multi-frequency incl. CPS
- Advanced fault find
- Enhanced location accessories
- Additional frequencies available
- Current display
- Current direction
| Power |
Yes |
| Radio |
Yes |
| CPS |
Yes |
| LF |
Yes |
| 8kHz |
Yes |
| 33kHz |
Yes |
| 65kHz |
Yes |
| 83kHz |
Yes |
| 130kHz |
Yes |
| 200kHz |
USA |
| CD |
CD |
| 8kFF |
Yes |
| LFFF |
Yes |
| CDFF |
Yes |
| Peak |
Yes |
| Null |
Yes |
| Single |
Yes |
| Current Display |
Yes |
| EMS |
Option |
| Simple acc |
Yes |
| Stereo acc |
Yes |
Specifications:
| SENSITIVITY at spot frequencies Active frequencies at 8Hz b/w |
frequency | sensitivity @ 1m | Good conditions |
| 50Hz or 60hz | 2 ma | 3 m (10ft) | |
| 15 - 30kHz | 25 µA | 3 m (10ft) | |
| 512Hz or 640Hz | 50 µA | 5 m (16ft) | |
| 8kHz | 5 µA | 5 m (16ft) | |
| 33kHz | 5 µA | 5 m (16ft) | |
| 65kHz | 6 µA | 5 m (16ft) | |
| 131kHz | 6 µA | 5 m (16ft) | |
| 200kHz | 8 µA | 5 m (16ft) | |
| CD pairs | 50 µA | 5 m (16ft) | |
| Current reading | ± 5% Active signal bw limited | ||
| Fault finding | Diagnose faults from s/c to 2M ohm | ||
| Locate Quality | Dynamic range:
140dB@10Hz bandwith Selectivity: 120dB/Hz up to 200kHz Sensitivity: 5E-15 Tesla (32,768Hz, 1Hz b/w) |
||
| Locate accuracy | ±5% of depth, good condition Depth acheivable dependent upon signal current on line Note greater depth means broader peak response | ||
| Depth accuracy on undistorted signal | Line: ± 2.5% 0.1 m
to 3 m (4in to 10 ft) Sonde: ± 2.5% 0.1 m to 7 m (4in to 16 ft) |
||
| Batteries | 4 x LR20 (D) 1.5 V alkaline. 40 hours life, nominal @ 20ºC (68ºF), intermittent use Compatible with D type NiMH rechargeable batteries | ||
| EMS transceiver MRx option | Range to standard marker balls to 2m (6ft); 5m (16ft) on deep marker disks Dual mode line locate and marker locate | ||
| External data logging | For report generation and support | ||
| Antenna modes | |||
| Peak | Standard locate mode all purpose locate | ||
| Null | L and R arrows for simple locate | ||
| Single | Highest sensitivity - for location of deep targets | ||
T10 Transmitter specifications:
| active frequencies - direct connect & clamp | 16 |
| induction frequencies | 2 |
| power output |
10 watts |
| current direction output |
Yes |
| Fault find mode |
Yes |
| Batteries |
12 x LR20 (D) 1.5V alkaline |
| rechargeable option |
Yes |
| External 12V supply | Yes |
| Display |
LCD auto backlit |
| Multi-meter function (V, I, Mega
to gnd) |
Yes |
| O/p Voltage max (rms) |
+/- 80v |
| Charger circuit, galvanically
isolated |
Yes |
| Direct connect to 240v; live transformer available as accessory | yes |
| S/c protected | yes |
| Self test - built in error reporting | yes |
For full RadioDetection RD4000PDL T10 Cable Pipe Locator product specifications, please click here: RadioDetection RD4000PDL T10
