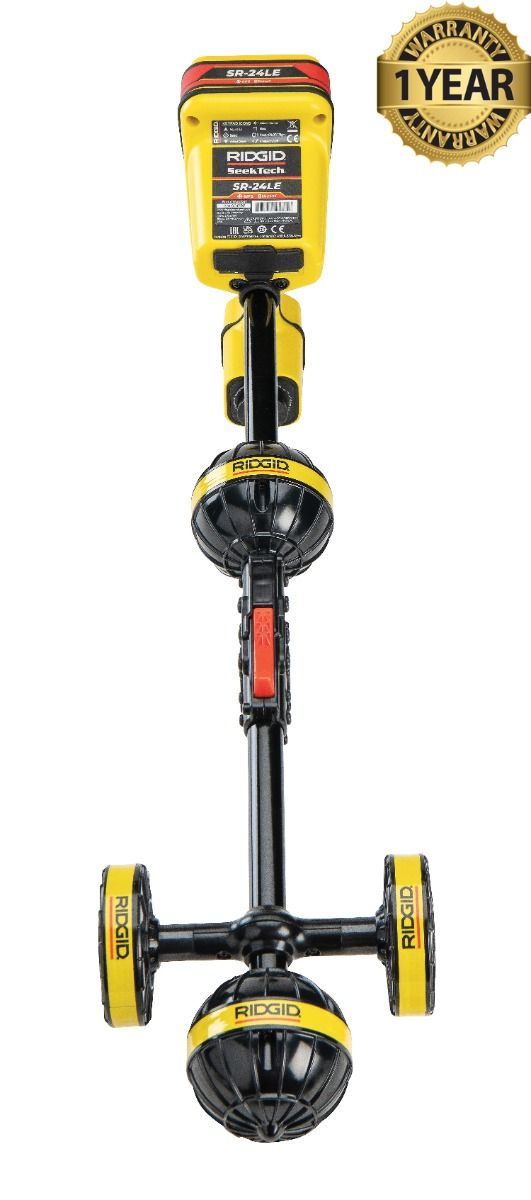

Rigid SR-24LE Cable & Pipe Locator

Rigid SR-24LE Cable & Pipe Locator

The RIDGID SeekTech SR-24LE is a portable underground utility locating receiver designed to help professionals find and trace buried cables and pipes. It combines electromagnetic signal detection with integrated GPS and Bluetooth Low Energy connectivity. Construction crews, utility technicians, and maintenance professionals use it to investigate underground infrastructure and document utility routes.

The locator uses omnidirectional antennas to detect electromagnetic fields associated with underground utilities. Its display provides guidance for following a detected line and assessing its position and estimated depth. This helps operators trace a utility’s route across a work area and mark its suspected location on the surface.

The SR-24LE supports active line tracing when paired with a compatible transmitter that applies a signal to the target utility. It also supports passive locating of existing power and radio-frequency signals. For pipe inspection applications, it can detect compatible sondes, which are small transmitters used to identify a particular point inside a pipe.

Its integrated GPS records geographic position, while Bluetooth enables communication with compatible external devices. Together, these features support collecting locating information for mapping and documentation. GPS identifies the receiver’s position above ground; the electromagnetic locating system detects the buried utility.

The SR-24LE helps crews plan maintenance, investigate utility routes, and prepare for excavation by providing useful locating information. Its combination of tracing guidance, depth estimates, and wireless documentation supports organized fieldwork. It is an underground utility receiver, with separate transmitters or sondes required for the corresponding active locating methods.

Features:

• Omnidirectional antennas: Detect signals from multiple directions to help trace buried utilities.
• Visual and audio guidance: Helps the operator center over the target line.
• Mapping display: Shows estimated utility position, direction, and depth.
• Integrated GPS: Records coordinates for mapping and documentation.
• Bluetooth Low Energy: Streams locating data to compatible phones, tablets, and external GPS receivers.
• Active line tracing: Supports 128 Hz, 1 kHz, 8 kHz, and 33 kHz with a compatible transmitter.
• Passive locating: Detects 50/60 Hz power signals and other supported frequency bands.
• Sonde locating: Supports 16 Hz, 512 Hz, and 33 kHz sondes.
• Programmable frequencies: Supports frequencies from 10 Hz to 35 kHz.
• 18 V battery compatibility: Uses the included SeekTech battery adapter; battery sold separately.
• Foldable mast: Makes transport and storage easier.
