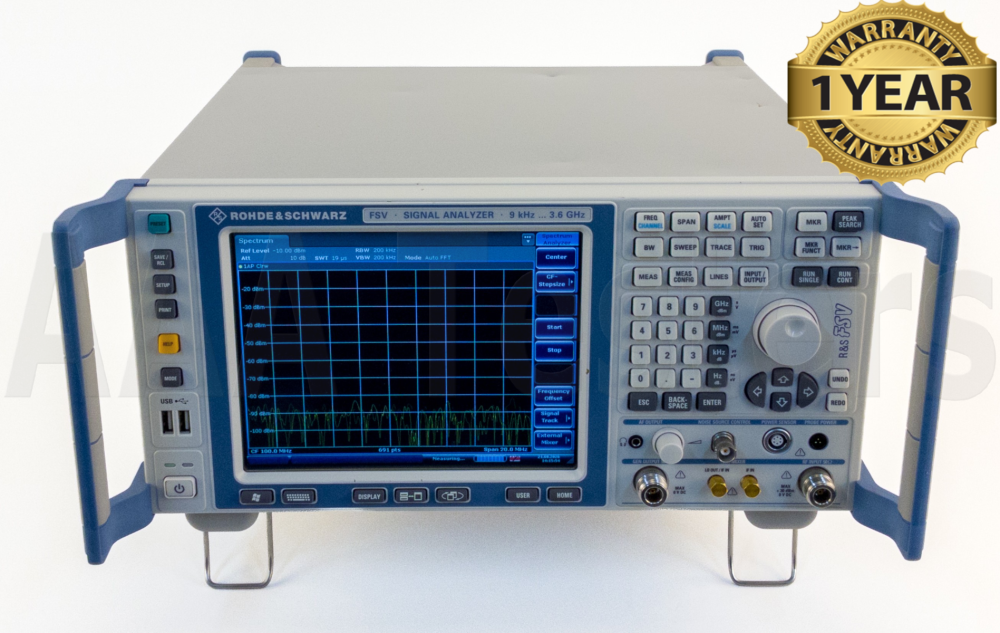

Rohde & Schwarz FSV3 3.6GHz Signal Spectrum Analyzer w/ Opts B3/ B4/ B5/ B9/ B21
Condition: Refurbished / Calibrated
Warranty: 1 Year Warranty
Rohde & Schwarz FSV3 Spectrum Signal Analyzer
R&S FSV Signal and Spectrum Analyzer
The R&S®FSV is the fastest and most versatile signal and spectrum analyzer available for performance-oriented, cost-conscious users working in the development, production, installation and servicing of RF systems.
In development applications, the R&S®FSV excels due to its outstanding RF properties, a 40 MHz signal analysis bandwidth that is unmatched in its class, and a wide range of analysis packages for analog modulation methods as well as wireless and wideband communications standards. The R&S®FSV is five times faster than comparable signal and spectrum analyzers and provides measurement routines that are optimized for speed and high data through-put. This is a crucial advantage in production applications. With its touch screen for easy operation, compact dimensions, low weight and direct support of power sensors, the R&S®FSV is the best possible choice for installation and service work.
Key facts
Frequency range up to 3.6/7/13.6/30/40 GHz
40 MHz analysis bandwidth
0.4 dB level measurement uncertainty up to 7 GHz
Analysis software for GSM/EDGE (including EDGE evo),WCDMA/HSPA+, LTE, WiMAX™, WLAN, analog modulation methods
Easy on-site upgrading with options
–110 dBc (1 Hz) phase noise at 10 kHz frequency offset
+15 dBm third order intercept (TOI)
Displayed average noise level (DANL) in 1 Hz bandwidth: –155 dBm at 1 GHz, –147 dBm at 30 GHz
Removable hard drive for applications where security is a concern
Frequency range up to 110 GHz with R&S®FSV-B21 option built in the R&S®FSV30/40 and the R&S®FS-Z60/-Z75/-Z90/-Z110 harmonics mixers
Ready for today's – and tomorrow's – standards
Fully digital back-end ensures high measurement accuracy and excellent repeatability
40 MHz signal analysis bandwidth largest in its class; suitable for all WiMAX™ profiles and WLAN IEEE 802.11n
Largest I/Q memory depth in its class for recording long signal sequences
Low test costs and high throughput for efficient production
Up to five times faster than other signal and spectrum analyzers
Customized test routines for production applications
Efficient remote-control operation
Wealth of functions and performance for effective use in labs
Outstanding RF performance for a mid-range analyzer
Unsurpassed level measurement accuracy up to 7 GHz
Power measurement functions for analysis of digital communications systems
Versatile marker and trace functions
Scalar network analysis: easy measurement of frequency response, bandwidth, gain
| Specifications in brief | |
| Frequency | |
| Frequency Range | 9 kHz to 3.6 GHz |
| Aging of frequency reference | 1×10–6 |
| with R&S®FSV-B4 option | 1×10–7 |
| Resolution/bandwidths | |
| Standard Sweep | 1 Hz to 10 MHz |
| Standard sweep, zero span | 1 Hz to 10 MHz, 20 MHz, 28 MHz; 40 MHz optional |
| FFT sweep | 1 Hz to 300 kHz |
| Channel Filter | 100 Hz to 5 MHz |
| EMI filter | 200 Hz, 9 kHz, 120 kHz, 1 MHz |
| Video filter | 1 Hz to 10 MHz, 20 MHz, 28 MHz, 40 MHz |
| Signal analysis bandwidth | 28 MHz, with R&S®FSV-B70 option-40 MHz |
| Displayed average noise level (DANL) | |
| DANL (1 Hz bandwidth) | |
| 1 GHZ | –152 dBm, typ. –155 dBm |
| 3 GHz | –150 dBm, typ. –153 dBm |
| 7 GHz | –146 dBm, typ. –149 dBm |
| 13 GHz | –148 dBm, typ. –151 dBm |
| 30 GHz | –144 dBm, typ. –147 dBm |
| 40 GHz | –136 dBm, typ. –139 dBm |
DANL with preamplifier, R&S®FSV-B22 option |
|
| 1 GHZ | –162 dBm, typ. –165 dBm |
| 3 GHz | –160 dBm, typ. –163 dBm |
| 7 GHz | –156 dBm, typ. –159 dBm |
| Intermodulation | |
| Third order intercept (TOI) | |
| f < 3.6 GHz 3.6 GHz to 30 GHz | +13 dBm, typ. +16 dBm +15 dBm, typ. +18 dBm |
| Dynamic range WCDMA ACLR | |
| Without noise compensation | 70 dB |
| With noise compensation | 73 dB |
| Phase noise | |
| 1 GHz carrier frequency | |
| 10 kHz offset from carrier | –106 dBc (1 Hz), typ. –110 dBc (1 Hz |
| 100 kHz offset from carrier | –115 dBc (1 Hz |
| 1 MHz offset from carrier | –134 dBc (1 Hz |
| Total measurement uncertainty | |
| 3.6 GHz | 0.29 dB |
| 7 GHz | 0.39 dB |
| R&S®FSV-B9 tracking generator | |
| Frequency range | 100 kHz to 3.6 GHz |
| Frequency offset | Up to 1 GHz |
| Level range | –60 dBm to 0 dBm |
Rohde & Schwarz FSV3 Signal & Spectrum Analyzer
Installed Options:
- B3: AM/FM Audio Demodulator
- B4: OCXO, Precision Reference Frequency
- B5: Additional Interfaces (IF/video/AM/FM output, AUX port, trigger output, two additional USB ports)
- B9: Tracking Generator 100 kHz to 3.6 GHz/7 GHz
- B21: LO/IF-Ports for external Mixers
Frequency Range: 9 kHz to 3.6 GHz
Includes Accessories As Listed!
- Rohde & Schwarz FSV3 Signal & Spectrum Analyzer w/ Options: (BC# -L/T*)
- Installed Options:
- B3: AM/FM Audio Demodulator
- B4: OCXO, Precision Reference Frequency
- B5: Additional Interfaces (IF/video/AM/FM output, AUX port, trigger output, two additional USB ports)
- B9: Tracking Generator 100 kHz to 3.6 GHz/7 GHz
- B21: LO/IF-Ports for external Mixers
- B3: AM/FM Audio Demodulator
- Installed Options:
- Power Cord
- User Manual on CD
