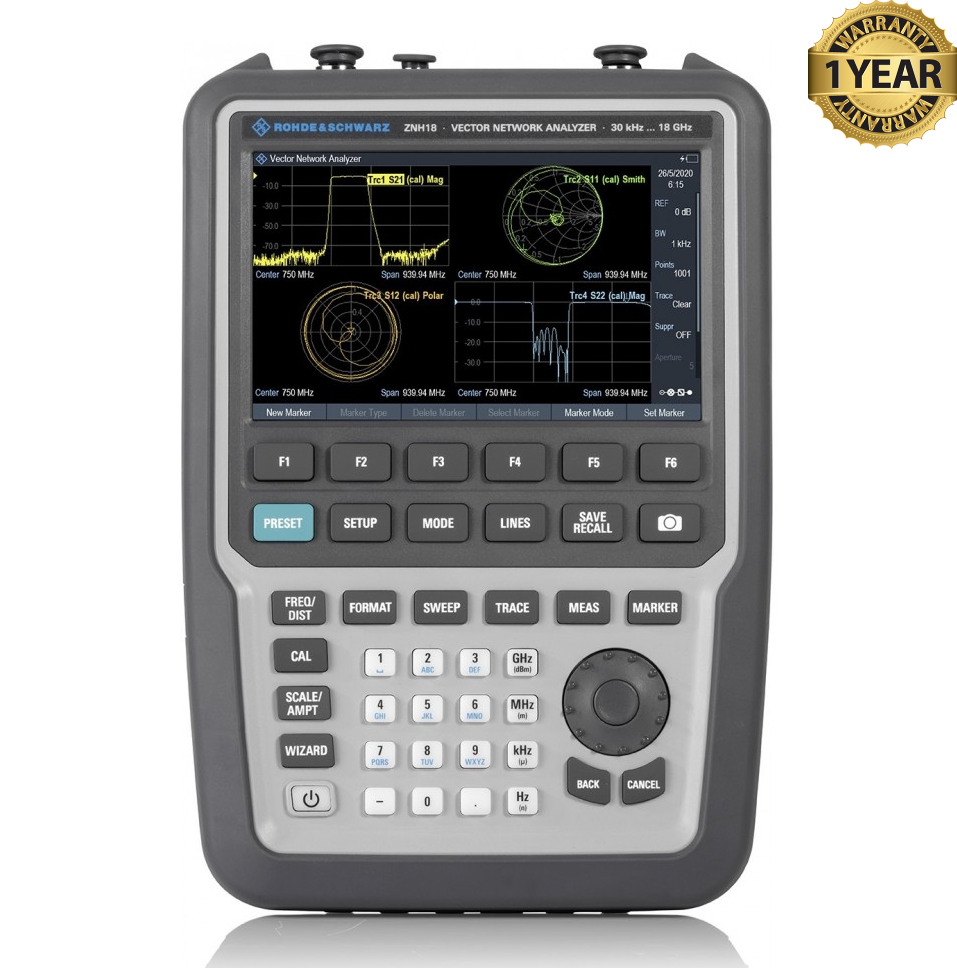

Rohde & Schwarz ZNH18 18GHz 2 Port Handheld Vector Network Analyzer
Condition: Refurbished / Calibrated
Warranty: 1 Year Warranty
Shipping: USA & Worldwide
- Rohde & Schwarz ZNH18 18GHz 2 Port Handheld Vector Network Analyzer (BC# -L/T*)
- AC Adapter/Charger
Rohde & Schwarz ZNH18 18GHz 2 Port Handheld Vector Network Analyzer
The Rohde & Schwarz ZNH18 is a portable, two-port vector network analyzer designed to test radio-frequency and microwave components from 30 kHz to 18 GHz. It combines network analysis with cable and antenna testing in a handheld instrument, making it useful for laboratory work, installation, maintenance, and field troubleshooting.
The ZNH18 measures how signals pass through a device and how much signal reflects back. Its full two-port capability measures all four S-parameters S11, S21, S12, and S22 to evaluate reflection and transmission in both directions. These measurements help characterize filters, amplifiers, cables, and other RF components.
For cable and antenna testing, the analyzer helps technicians assess signal loss and impedance matching, which affect how efficiently a system transfers RF energy. Comparing measurements across frequency reveals where a component performs correctly and where problems occur, helping users verify equipment and diagnose faults.
A touchscreen, battery operation, and rugged IP51-rated housing support portable use. Optional capabilities include time-domain analysis, vector voltmeter measurements, and power measurements with compatible sensors. These options extend the ZNH18’s usefulness for technicians and engineers testing RF systems.
Features:
- 30 kHz–18 GHz frequency range with two Type-N test ports.
- Full two-port measurements: S11, S21, S12, and S22 for reflection and transmission testing.
- Cable and antenna testing, including cable loss and distance-to-fault measurements.
- Up to 100 dB typical dynamic range for filter and antenna isolation measurements.
- Four-receiver architecture supporting advanced calibration methods, including UOSM.
- Adjustable receiver attenuators at both ports, from 0–15 dB in 5 dB steps.
- Non-reflective touchscreen with pinch-to-zoom, plus physical keys and a rotary knob.
- Measurement wizard for automated test sequences.
- Battery-powered handheld design with rugged IP51-rated housing
| Specification | Rohde & Schwarz ZNH18 |
|---|---|
| Instrument type | Handheld vector network analyzer |
| Frequency range | 30 kHz–18 GHz |
| Test ports | 2 |
| Port connectors | Type-N female |
| Impedance | 50 Ω |
| Frequency resolution | 1 Hz |
| Measurement points per trace | 3–16,001 |
| Measurement bandwidth | 10 Hz–100 kHz |
| S-parameters | S11, S21, S12, S22 |
| Cable measurements | One-port cable loss; distance-to-fault |
| Dynamic range, 10 MHz–<8 GHz | >90 dB 100 dB typical |
| Dynamic range, 8 GHz–<18 GHz | >80 dB 88 dB typical |
| Receiver attenuation | 0–15 dB, in 5 dB steps |
| Maximum RF input per port | +23 dBm (0.2 W) |
| Maximum DC input at test ports | 50 V |
| Display resolution | 800 × 480 pixels |
| Interfaces | LAN USB Mini-B two USB-A ports |
| External storage | USB drive or microSD, up to 32 GB |
| Operating temperature | −10°C to +55°C |
| Storage temperature | −20°C to +50°C |
| Protection rating | IP51 |
| Battery type | Rechargeable lithium-ion |
| Battery operating time | 4 hours with new, fully charged battery |
| External DC supply | 15 V |
| AC adapter input | 100–240 V AC ±10%, 50–60 Hz |
| Recommended calibration interval | 1 year |
