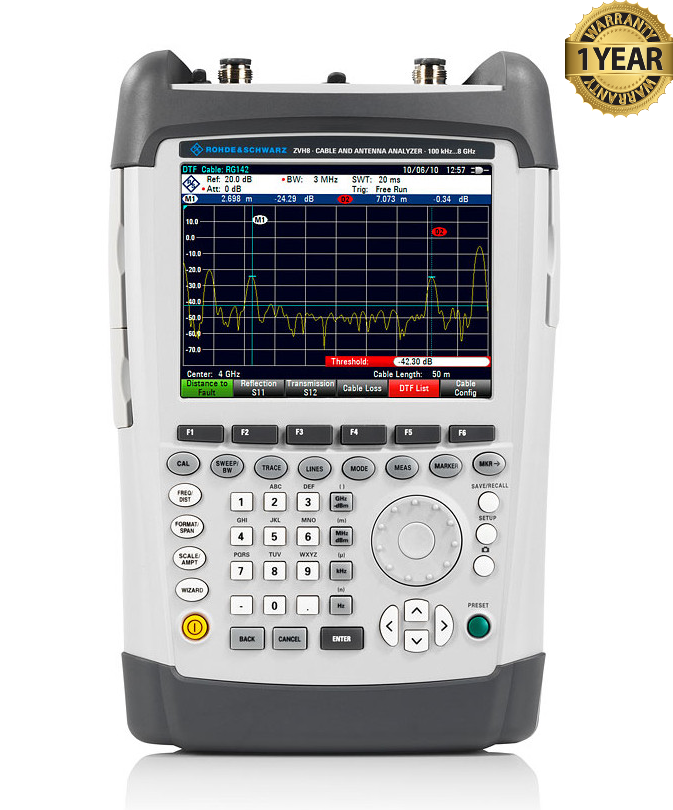

The Rohde & Schwarz ZVH8 is a handheld cable and antenna analyzer covering a frequency range of 100 kHz to 8 GHz. It is designed for technicians who install, inspect, and maintain radio-frequency antenna systems. Its portable design allows users to check antenna performance and cable condition directly at communication sites, helping confirm that equipment is operating correctly before a system is placed into service.

The ZVH8 measures return loss and voltage standing wave ratio, or VSWR, to evaluate how effectively an antenna or cable system accepts an RF signal. Excessive reflected energy can indicate a poor connection, damaged component, or antenna mismatch. These measurements help technicians identify installation problems that can reduce signal transmission efficiency and affect overall communication performance.

Its distance-to-fault function helps locate discontinuities along a cable by displaying their distance from the measurement point. This allows technicians to investigate suspect connectors, damaged cable sections, and other sources of reflections without replacing an entire cable run. The instrument also provides one-port cable loss measurements to assess how much signal is lost through the cable.

The analyzer combines a color display with a rugged, splash-resistant housing for field work. A preconfiguration wizard helps technicians follow consistent measurement procedures, making repeated inspections easier and reducing setup time. Measurement results can be transferred to a computer for review and documentation, supporting maintenance records and installation reports.

Available software options expand the ZVH8 beyond its standard cable and antenna measurements. Depending on the installed licenses, it can support spectrum analysis, transmission measurements, vector network analysis, and additional power measurement functions; some applications also require external accessories. This flexibility allows the instrument to support broader RF troubleshooting tasks while retaining its main role as a portable cable and antenna testing tool.

Features:

• 100 kHz–8 GHz frequency range
• Distance-to-fault (DTF): Helps locate damaged cables and faulty connections.
• Return loss and VSWR measurements: Evaluates antenna and cable matching.
• One-port cable loss testing: Measures signal attenuation through a cable.
• Built-in DC bias supply: Provides adjustable 12–32 V power for active components such as tower-mounted amplifiers.
• 6.5-inch color LCD: Displays measurement traces and results.
• Configurable test wizard: Guides users through repeatable measurement sequences.
• Measurement storage: Saves results to an SD card or USB memory stick.
• InstrumentView software: Supports reviewing results and creating reports.
• Replaceable rechargeable battery: Up to 3 hours with the 4.2 Ah battery, or 4.5 hours with the optional 6.3 Ah battery.
