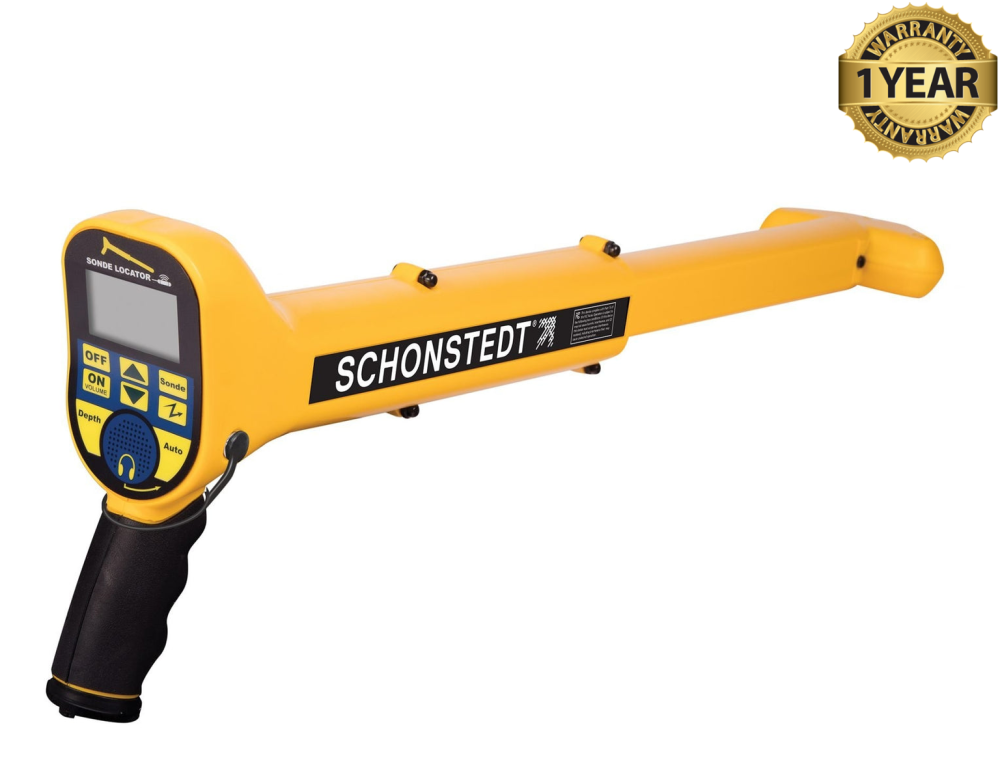

Schonstedt XT-512 Sonde & Sewer Locator

Schonstedt XT-512 Sonde & Sewer Locator

XT512 is one of the world's most portable 512hz pipe camera sonde locators with pinpoint precision and depth measurement. Its unique design combines the capabilities of 512hz sonde detection and passive location mode of 50Hz/60Hz into one portable and compact unit.

The sewer camera sonde locator XT512 permits easy and accurate pinpointing of the 512hz sonde beacon inserted into a non-metallic pipe either as a separate beacon or as a part of a camera head (ex. the Miniflex Plumbing Camera, VIPER, HATHORN, or ANACONDA sewer cameras).

Manufactured in the USA, the XT512 sonde locator is equipped with a technology that allows not only to pinpoint the sonde but also to measure the depth distance, which is very helpful in planning and mapping. To read the depth reading, press "depth" when the sonde locator is directly above the sonde; the typical depth range it can show is anywhere between 5 to 8 feet (1.5 - 2.5 m), depending on the strength of the signal emitted by the sonde in the pipe.

Designed to be ergonomic for ease of carrying and usage, the body of XT512 can be extended or retracted as needed. With all these features combined into one optimized standard unit, the XT512 Sonde Beacon Locator is integral for locating blockages and obstructions in non-metallic pipes. The 512Hz Sonde Locator from Schonstedt is an ideal addition to the sonde-equipped pipe inspection camera systems.

Features:

• Operating Frequency: 512 Hz plus 50/60 Hz passive detection
• Battery: One 9V Battery
• Battery Life: 18 Hours (intermittent use)
• Dimensions: Closed: 17.5” (~44 cm)
• Extended: 27.7” (~70 cm)
• Operating Temperature: -4°F to 140°F (-20°C to 70°C)
• Water and Dust Resistance: Rated IP54
