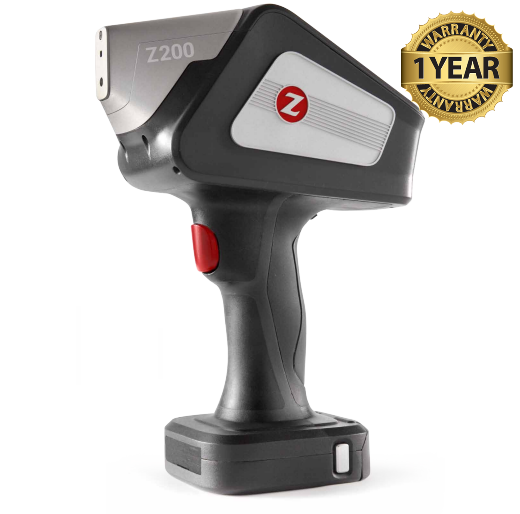

SciAps Z-200 Element Pro & Alloys Handheld LIBS Analyzer
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- SciAps Z-200 Element Pro & Alloys Handheld LIBS Analyzer(BC# -L/T*)
- Installed Modes:
- Element Pro
- Alloys
- Installed Modes:
- AC Adapter
- Battery Charger
- Carrying Case (G)
SciAps Z-200 Element Pro & Alloys Handheld LIBS Analyzer
The Z uses the LIBS technique – laser induced breakdown spectroscopy. Like OES, LIBS delivers very accurate chemistry provided it operates in an argon purge environment, although it is available with a lower cost air-burn option.
The Z-200 Spectral range 190 nm to 625 nm, 5-6 mJ/pulse, 50 Hz laser, argon purge. The Z-200 offers in-field analysis of key elements Li, Be, C, B, Na, Mg, Al, Si, Ca in addition to transition and heavy metals. The Z-200 analyzes may be calibrated to measure every element EXCEPT H, F, Br, Cl, O, N, Rb, Cs, S
High speed laser cleaning shots
Eliminates most surface sample prep.
Argon Purge
Precision and detection limits improve by up to 10x with argon purge.
Eliminates bad burns.
On-board camera and laser targeting eliminates poor quality “burns.”
Android OS and Data SHARE Apps
Share data direct to phone, sync with any computer globally, print to wireless printers. Eliminate inefficient data downloading forever
Specifications:
| Weight | 4 lbs. with battery |
| Dimensions | 8.25” x 11.5” x 4.5” |
| Excitation Source | 5-6 mJ/pulse, 50 Hz repetition rate, 1064 nm laser source. |
| Spectrometer/Range | Multiple CCD based spectrometers: Z-200 range 190 nm – 625 nm, Z-300 range 190 nm – 950 nm. |
| X-ray Filtering | 6 position filter wheel for beam optimization |
| Available Apps | Alloy, Geochem (Mining), Empirical, Environmental Apps. |
| Spectral Data Acquisition |
Spectral data collected in either ungated or gated operation, with user settable gate delays |
| Operation/Argon Purge | On-board, user replaceable argon cartridges for operating in argon purge environment. |
| Analytical Range | One or more lines from all elements except H, F, Cl, Br, N, O, Rb, Cs, S. |
| Laser Raster | On-board XY stage for rastering laser to discrete locations for targeted analysis or averaging. Raster pattern up to 16 x 16 grid, 256 locations. |
| Power | On board rechargeable Li-ion battery, rechargeable inside device or with external charger, AC power |
| Display | 5” color touchscreen Smartphone type display - PowerVR SGX540 3D graphic |
| Data Storage | Results Storage: 8 GB SD |
| Comms/Data Transfer | Wifi, Bluetooth, USB. Connectivity to most devices, including SciAps ProfileBuilder PC software. |
| Sample viewing | On-board camera/video for viewing sample before, during analysis, laser spot finder to show where laser strikes sample. |
