Sewerin A150 Basic Water Leak Detection Kit

$9,199.00
Availability: In stock
SKU
SL06

Condition: Refurbished / Calibrated

Warranty: 1 YEAR WARRANTY

Shipping: USA & Worldwide

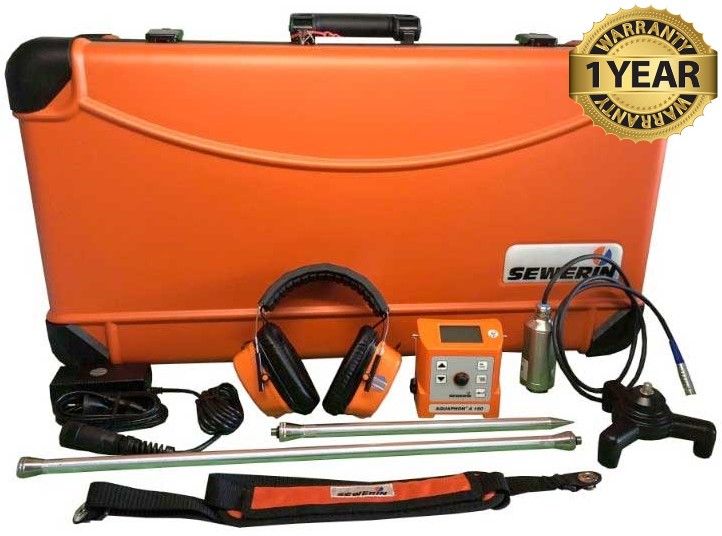

  • Sewerin A150 Basic Water Leak Detection Kit (BC# 17764)
  • AC adapter
  • Headphones
  • Carrying Strap
  • Carrying Case (G)
Request a Quote for

Have questions or doubts? Submit the following request and expect our detailed quote within 24 hours!

We are commited to win your business!

Sewerin A150 Basic Water Leak Detection Kit

Professional pre-location and the precise pinpointing of leaks is ensured by the A 150 receiver together with the well-established microphone technology from the AQUAPHON A 200 system, which has proved its worth countless times. Connected via high-end microphones and wireless headphones, this device impresses with its brilliant reproduction quality. The display offers support by visualizing the noise for reliable and differentiated evaluation. Small, light and handy, – the receiver wins over customers with its clever, compact design and maximum comfort when carrying. Thanks to adjustable filters and automatic frequency scanning, frequency ranges can be individually adapted to the user’s hearing, influences from sound interference minimized and sound quality optimized for reliable evaluation of the leakage situation.


Benefits:

  •  An extremely compact, lightweight, practical housing complete with belt clip – for convenient, effortless carrying and maximum freedom of movement
  • High-quality piezo microphones with frequency responses optimized especially for leak detection to cover every application, simple changeover ensured
  • Automatic frequency scanning and frequency ranges that can be individually adapted to the user’s hearing for reduced sound interference and optimum filter selection
  • Adjustable filters: frequency ranges can be individually adjusted to hearing to reduce interference noise
  • Long availability periods– no need for recharging – thanks to high-performance rechargeable battery technology
  • An illuminated display with an optimized tilt angle and auto-switch display (180° rotation) for easy read-off from the receiver, irrespective of position



Device Data
Dimensions (W x D x H) 115 × 65 × 114 mm
Weight 0.4 kg
Material polycarbonate (housing)
Device Elements
Display 2" FSTN display
240 x 128 pixels, LED backlight
Processor DSP 16 bit
Operation membrane keypad with 5 keys
1 activation key
Operating Conditions
Operating temperature -20 °C – +50 °C
Storage temperature -25 °C – +50 °C
Humidity 15 % – 90 % r.h., non-condensing
Protection rating IP65
Non-permitted operating
environments
in potentially explosive areas
Power Supply
Power supply lithium-ion battery (rechargeable) [1357-0002], built-in
Operating time, typical > 20 h
Battery power 24 Wh
Charging time < 7,5 h
Charging temperature 0 °C – +40 °C
Charging voltage 12 V
Charging current 0.6 A
Charger M4 AC/DC adapter
Measurement
Filter bandpass, adjustable filter limits:
lower filter limit:
0/30/60/120/250/500 Hz
upper filter limit:
300/500/850/1000/1250/1500/2000/3000/4000/8000 Hz
notch filter: 50 Hz, 60 Hz, off
Sampling rate 16 bit, 48 kHz
Indication range 0 – 1999 digits
Data transmission

Transmission frequency 2.408 – 2.476 GHz, 38 channels
Radio range > 2 m
Transmission bandwidth 0 – 12 kHz
Communication SDR (Sewerin Digital Radio)
Power 10 mW
