Sewerin A200 SDR Basic Wireless Electro-Acoustic Water Leak Detector

Sewerin A200 SDR Basic Wireless Electro-Acoustic Water Leak Detector

The Sewerin AQUAPHON A200 SDR Basic is a portable electro-acoustic water leak detection system designed to help professionals locate leaks in pressurized water pipes. It detects and amplifies the sounds produced by escaping water, allowing operators to investigate suspected leaks and narrow down their location. It is used for inspecting water distribution networks, service connections, and building plumbing.

When water escapes through a damaged pipe, it creates vibrations that travel through the pipe and surrounding ground. The A200 uses a microphone to pick up these vibrations and converts them into audible signals and visual measurements. With the appropriate microphone and attachments, technicians can listen at accessible fittings or compare sounds along the ground above a buried pipeline.

The SDR designation stands for Sewerin Digital Radio, which provides wireless communication between compatible system components. Wireless headphones give the operator greater freedom of movement while listening to leak sounds. The system also includes hearing protection that reduces exposure to sudden loud interference, such as passing traffic or a probe slipping off a contact point.

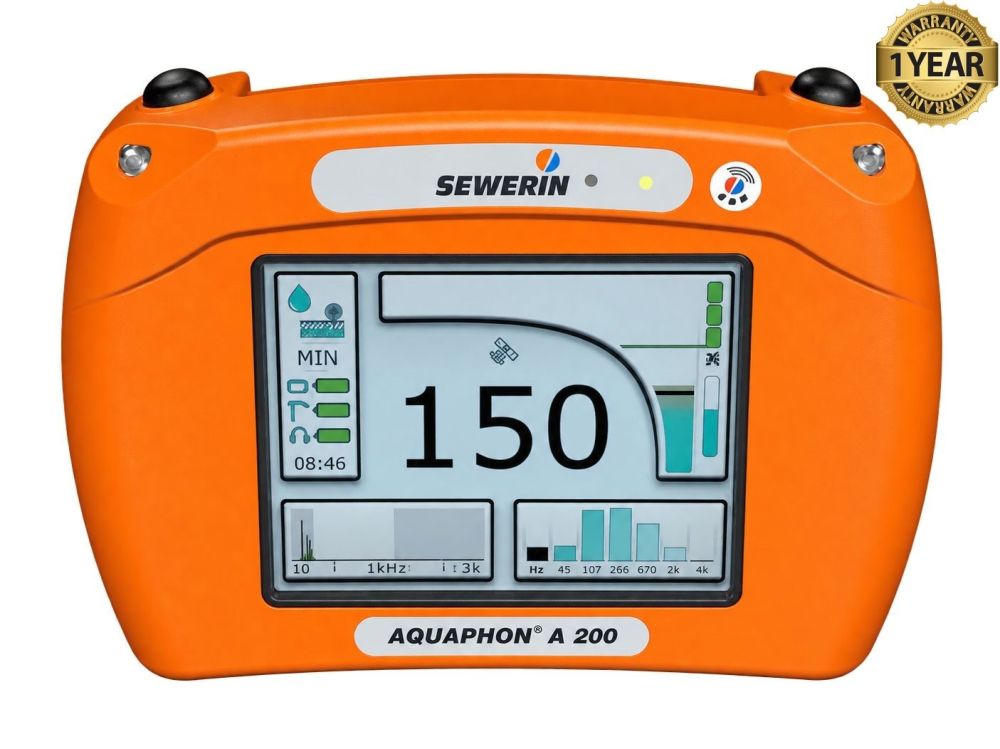

A large color touchscreen displays sound intensity and frequency information, helping the operator compare readings from different measurement points. Adjustable filters help emphasize relevant leak noises and reduce distracting background sounds. The A200 can also analyze noise and suggest suitable filter settings, while its audio playback capability supports comparison of recorded sounds during an investigation.

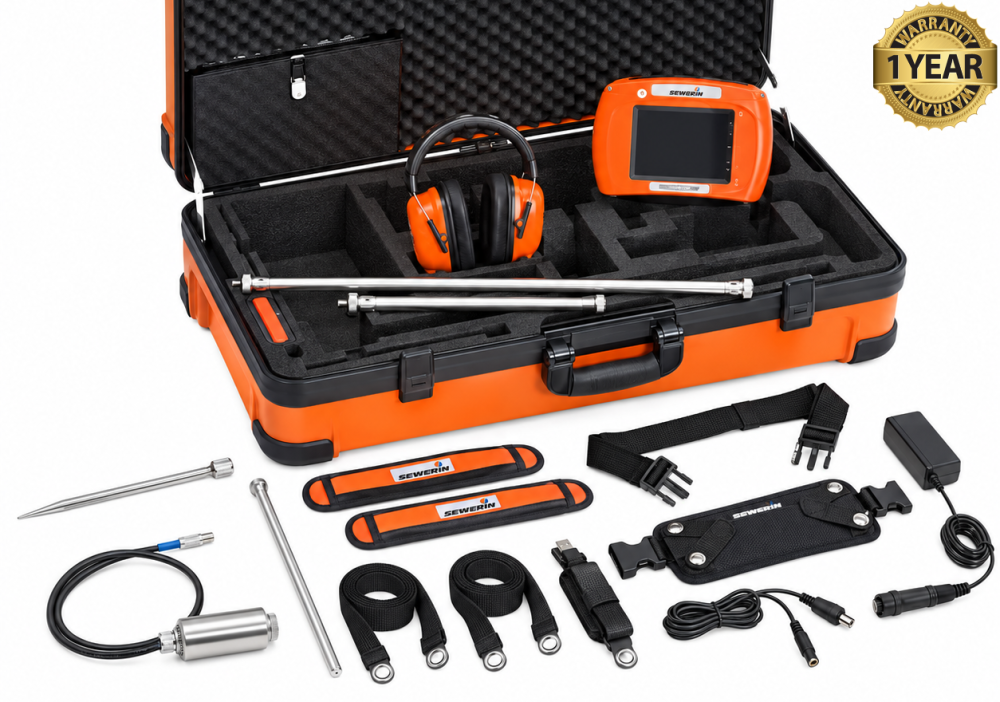

The system helps maintenance teams focus repairs on the suspected leak area, potentially reducing unnecessary excavation, water loss, and property damage. The Basic kit is a particular equipment configuration; its supplied microphones and attachments determine the applications available immediately. Additional compatible accessories can expand its use for different surfaces and listening points, so the exact package contents should be checked when purchasing.

Features:

• Electro-acoustic leak detection: Amplifies sounds from escaping water to help locate pipe leaks.
• SDR wireless headphones: Sewerin Digital Radio allows listening with greater freedom of movement.
• Color touchscreen: Displays sound levels and frequency information.
• Adjustable frequency filters: Helps isolate leak sounds from background noise.
• Automatic filter recommendations: Analyzes sounds and suggests suitable settings.
• Audio recording and playback: Allows comparison of leak sounds at different measurement points.
• Hearing protection: Suppresses sudden loud interference.
• Guided operation: On-screen instructions support the locating process.
• Prelocation and pinpointing: Supports initial investigation and more precise location with suitable microphones.
