SOCTester SOC140 Battery Analyzer
$1,549.00
Availability:
In stock
SKU
ME13
Condition: Refurbished / Calibrated
Warranty: 1 Year Warranty
SOC Tester SOC140 Battery Analyzer
SOC testers are fast and accurate field test instruments used to determine the stateof-charge (battery capacity) of sealed lead-acid batteries housed in equipment or stored as inventory. These patented instruments have been modified with the latest technology to accommodate the newer, more sophisticated batteries entering the market.
While the SOC testers are not the first battery testers on the market, they are the only ones using an exclusive testing method that allows the operator to exercise and explore the battery’s internal profile - in less than 43 seconds - measuring the state-of-charge (SOC) and full rated capacity of the battery. Because of this short, accurate testing period, SOC battery testers will assist an organization in reducing costs, thus increasing profit while providing ultimate reliability and safety for employees, customers and consumers alike. Companies often overlook revenue lost due to a misunderstanding in the importance of battery maintenance. 98% of all ups systems failures are the result of faulty batteries and operator error. Reductions in diagnostic test times, simplified operation, better inventory management and finding field faults with equipment already in service are just some of the ways SOC testers capture these lost revenues, thus ensuring a short pay-back period on the cost of the instrument.
The expanded use of sealed lead-acid batteries in equipment such as fire/security alarms, emergency lighting and integrated security systems has given rise to the need for more accurate and faster testing methods in order to meet the regulations set up by federal, state and local government agencies regarding duration of power, storage, and transportation, such as the NFPA and other regulatory commissions. SOC testers are designed to assist users in meeting these regulations, without the burden of increased maintenance costs or service call times.
A battery’s deterioration may be altered by many factors, but the most common causes of diminished stored energy capacity is self discharge and improper battery charging methods. Typically, self discharge is a phenomenon where the rate increases with temperature. Even a battery on float charge for long periods of time often deteriorates below its ability to work at full capacity. It is essential, therefore, to periodically test batteries to determine their SOC, thus assuring required performance characteristics are intact.
Newer type batteries require more sophisticated re-charging technology, which unless clearly understood during the product development process can result in poor operational performance of the equipment being powered. This is significantly evident in the emergency and security equipment entering the market today. Improper re-charging contributes to battery failure, but misunderstanding of the handling of batteries contributes equally in battery failure rates. Even the best battery made will not work properly if it is not treated correctly.
SOC testers assure the user that the battery has been tested to provide sufficient energy in emergency conditions. These portable battery testers are ideal for all applications including field diagnostic, regulatory compliance testing, maintenance or installation and stored battery inventory management. The SOC testers are perfectly suited for both on-site and laboratory needs and are available in their own ruggedized carrying case with the ability to test in excess of 450 batteries per internal battery charge. The SOC140 will test 6 and 12 volt 3-140 ampere hour batteries using a 43 second test cycle furnishing an evaluation of the battery’s condition, while the SOC 255 will test up to 255 AHRs at 6 and 12 volts.
Features:
Specifications:
SOC testers are fast and accurate field test instruments used to determine the stateof-charge (battery capacity) of sealed lead-acid batteries housed in equipment or stored as inventory. These patented instruments have been modified with the latest technology to accommodate the newer, more sophisticated batteries entering the market.
While the SOC testers are not the first battery testers on the market, they are the only ones using an exclusive testing method that allows the operator to exercise and explore the battery’s internal profile - in less than 43 seconds - measuring the state-of-charge (SOC) and full rated capacity of the battery. Because of this short, accurate testing period, SOC battery testers will assist an organization in reducing costs, thus increasing profit while providing ultimate reliability and safety for employees, customers and consumers alike. Companies often overlook revenue lost due to a misunderstanding in the importance of battery maintenance. 98% of all ups systems failures are the result of faulty batteries and operator error. Reductions in diagnostic test times, simplified operation, better inventory management and finding field faults with equipment already in service are just some of the ways SOC testers capture these lost revenues, thus ensuring a short pay-back period on the cost of the instrument.
The expanded use of sealed lead-acid batteries in equipment such as fire/security alarms, emergency lighting and integrated security systems has given rise to the need for more accurate and faster testing methods in order to meet the regulations set up by federal, state and local government agencies regarding duration of power, storage, and transportation, such as the NFPA and other regulatory commissions. SOC testers are designed to assist users in meeting these regulations, without the burden of increased maintenance costs or service call times.
A battery’s deterioration may be altered by many factors, but the most common causes of diminished stored energy capacity is self discharge and improper battery charging methods. Typically, self discharge is a phenomenon where the rate increases with temperature. Even a battery on float charge for long periods of time often deteriorates below its ability to work at full capacity. It is essential, therefore, to periodically test batteries to determine their SOC, thus assuring required performance characteristics are intact.
Newer type batteries require more sophisticated re-charging technology, which unless clearly understood during the product development process can result in poor operational performance of the equipment being powered. This is significantly evident in the emergency and security equipment entering the market today. Improper re-charging contributes to battery failure, but misunderstanding of the handling of batteries contributes equally in battery failure rates. Even the best battery made will not work properly if it is not treated correctly.
SOC testers assure the user that the battery has been tested to provide sufficient energy in emergency conditions. These portable battery testers are ideal for all applications including field diagnostic, regulatory compliance testing, maintenance or installation and stored battery inventory management. The SOC testers are perfectly suited for both on-site and laboratory needs and are available in their own ruggedized carrying case with the ability to test in excess of 450 batteries per internal battery charge. The SOC140 will test 6 and 12 volt 3-140 ampere hour batteries using a 43 second test cycle furnishing an evaluation of the battery’s condition, while the SOC 255 will test up to 255 AHRs at 6 and 12 volts.
Features:
- Ability to verify a battery’s stored energy capacity
- 43 second automatic test cycle
- Automatic post-test shutoff eliminates extra drain on tested and internal batteries
- Self-contained battery power unit
- Completely portable
- Internal rechargeable battery tests in excess of 450 batteries per charge
- Exclusive patented testing method that allows the operator to exercise and explore the battery’s internal profile
- Reverse Polarity protected
- Self-contained operating instructions
- Fail safe operation
- Measure the battery’s State-of-Charge (SOC) and display, in percentages, overall charge capacity
- State-of-Charge is displayed up to 5% resolution
- Internal battery low warning light
Specifications:
| Voltage Range |
6V, 12V |
| Battery Rating |
->3 - 140 Ampere Hour @ 20 HOUR RATE |
| Battery Type |
Sealed Lead-Acid |
| Test Cycle Time |
43 seconds |
| Cable Set |
6 FT replaceable |
| Resolution |
5% |
| Size |
14.875" x 12.125" x 6.875"
(37.78cm x 30.79cm x 17.46cm) |
| Weight |
22 lbs |
| Integrated Auto-Purge System |
Available Completely watertight and airtight. With integrated Auto-Purge System. Our Pressure Release Purge Valve guarantees a perfect seal by incorporating its own O-Ring under one of the latches. You will never forget to set the valve since it automatically activates when closing the case. Pressure is released as you open the latch. |
| Durability |
CRUSH RESISTANCE manufactured to exceed crush resistance MIL STDs of 400 Lbs stacking |

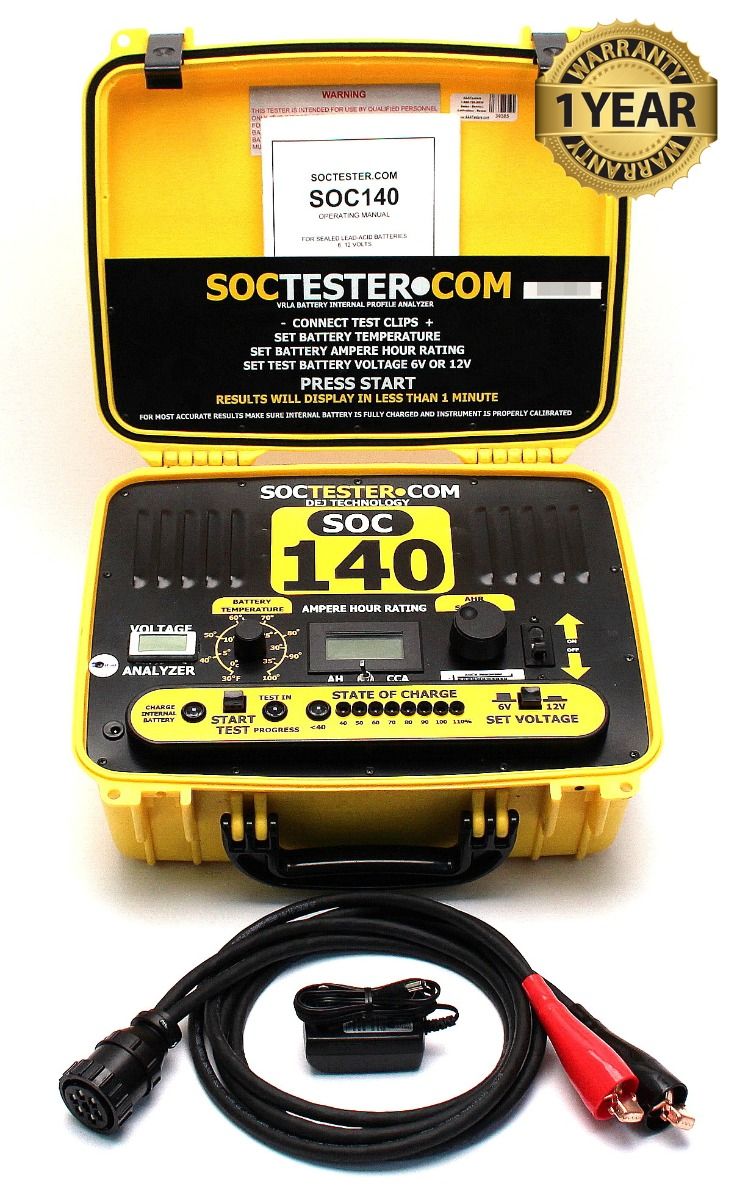

SOCTester SOC140 Battery Analyzer
Used to determine the state-of-charge (battery capacity) of sealed lead-acid batteries housed in equipment or stored as inventory
Includes Carrying Case & Accessories As Listed
SOCTester SOC140 SOC-140 Battery Analyzer Models On Sale Warranty Calibration Backed by The Best Service and Lowest Prices in the Industry.
BC# 39385-L/T*
- SOCTester SOC140 Battery Analyzer (BC# 39385-L/T*)
- SOCTester Dual Clip Test Cable
- AC Adapter/Charger
- SOC140 Operating Manual
