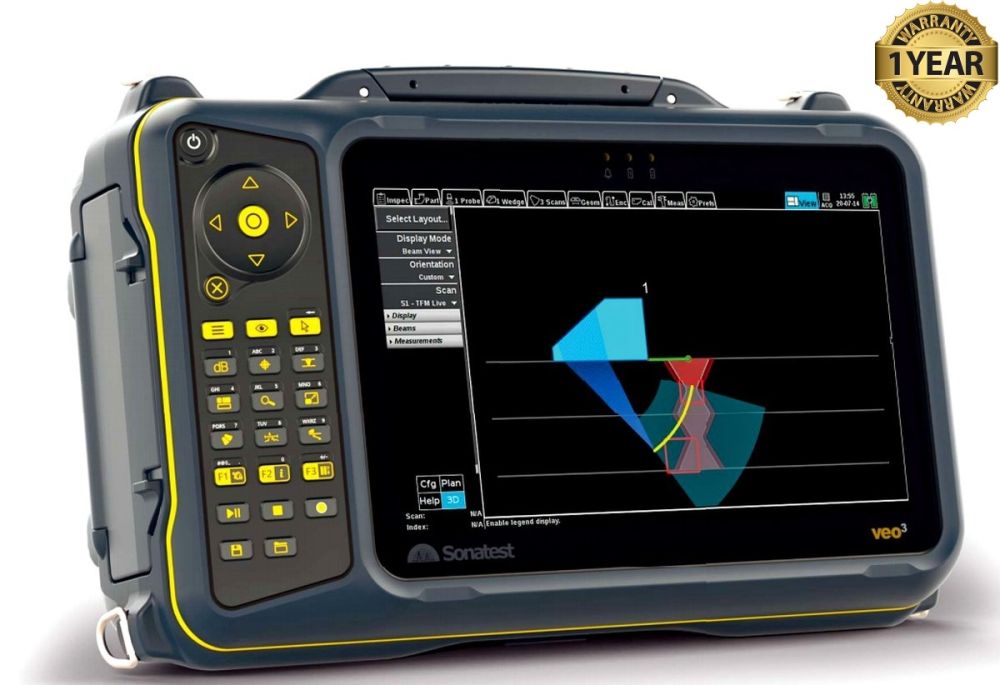

Sonatest VEO3 Phased Array Ultrasonic Flaw Detector

Sonatest VEO3 Phased Array Ultrasonic Flaw Detector

The Sonatest Veo3 can generate TFM images of up to 500K pixels with a maximum resolution of 100 pixel per mm without limiting the number of pixel per axis. Combining Time Corrected Gain on the TFM image, the technician is able to inspect thicker parts with superior flexibility whilst remaining ASME compliant and all with a single scan. The Veo3 has what it needs to answer your daily challenges.

The Sonatest VEO3 is a high-performance, portable phased-array ultrasonic flaw detector designed for advanced non-destructive testing (NDT) applications. It combines Phased Array (PA), UT/TOFD, Full Matrix Capture (FMC), and Total Focusing Method (TFM) technologies in a single inspection platform.

The Veo3 phased array flaw detector takes the advantages of  the earlier Sonatest units that you have come to know and added some significant new features.  Fitted with a state-of-the-art PCAP touch panel, the now legendary user interface is even better. But what makes Veo3 really stand out, is its unique real-time multi-scan/multi-technique capabilities. Simultaneous TFM, PA and TOFD views are now possible.

With its unique architecture the Veo3 can generate up to six live TFM scans, produced from multiple FMC sources on different probes, and also generates TFM images of up to 500k pixels with a maximum resolution of 100 pixel per mm without limiting the number of pixel per axis. All of the data received during Full Matrix Capture (FMC) scanning can be recorded on the Veo3. As a result, further detailed analysis can be performed including comparison with previous inspection data to identify trends and flaw/corrosion growth rates.

You can inspect with confidence with the multi-technique advantage of the Sonatest Veo3 phased array flaw detector.

All of the data received during Full Matrix Capture (FMC) scanning can be recorded on the Veo3. As a result, further detailed analysis can be performed including comparison with previous inspection data to identify trends and flaw/corrosion growth rates.  The Sonatest UTStudio+ software package has extensive capabilities to assist the inspector/expert or alternatively the data can be exported for analysis using other algorithms. Sonatest provides the tools necessary beyond just the basic inspection.

Features

• 32:128PR Phased Array ultrasonic inspection system
• Live TFM & FMC capability with up to 6 TFM scans
• TOFD & UT inspection capability
• Up to 1,024 PA focal laws for advanced beam control
• 10.4" capacitive touchscreen with intuitive interface
• IP66-rated rugged design with hot-swappable batteries and up to 6 hours of operation
