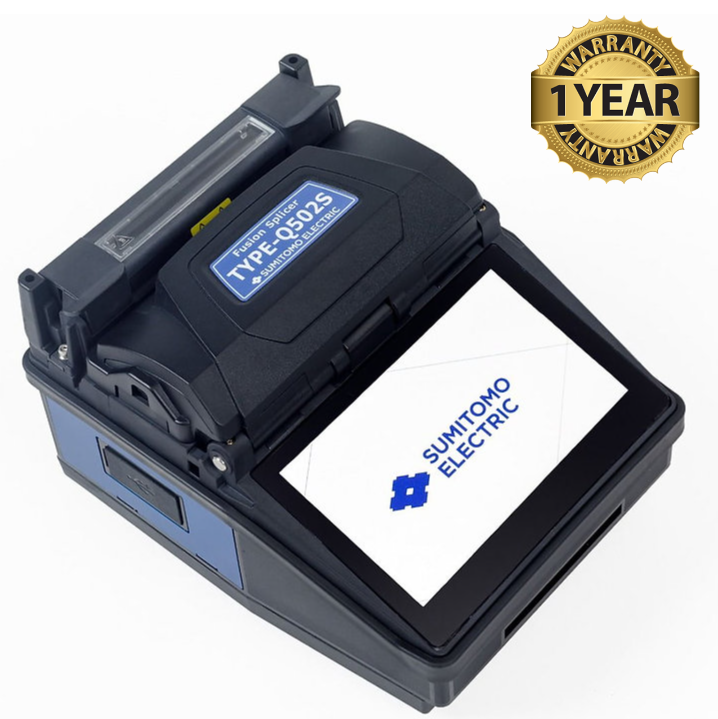

Sumitomo Q502S Clad Alignment Fusion Splicer
Condition: Refurbished / Calibrated
Warranty: 1 Year Warranty
Shipping: USA & Worldwide

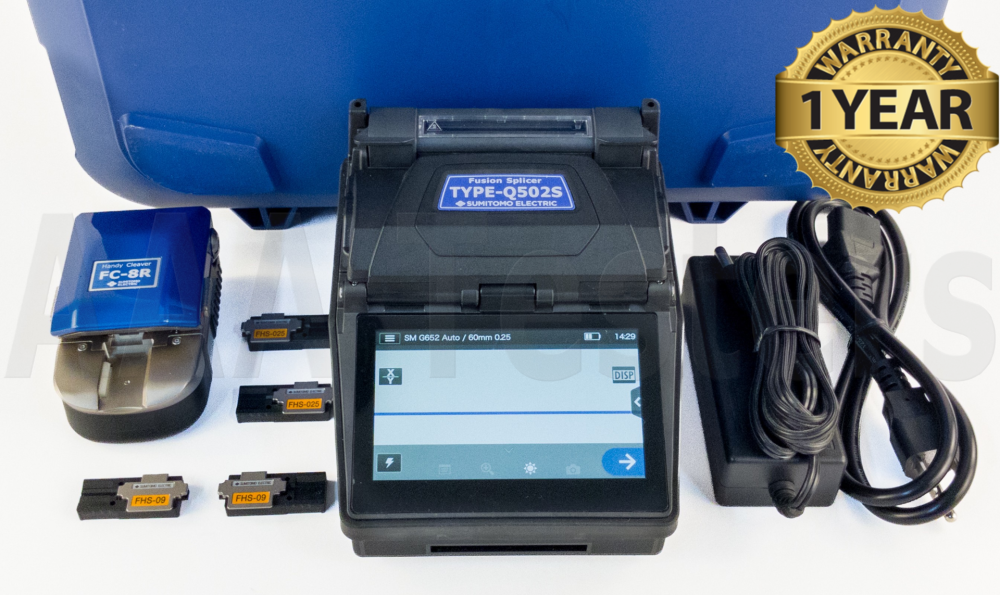

- Sumitomo Q502S Clad Alignment Fusion Splicer
- Sumitomo FC-8R High Precision Fiber Cleaver
- (2) FHS-025 Fiber Holders
- (2) FHS-900 Fiber Holders
- Fiber Stripper
- AC Adapter/Charger
- Power Cord
- Hard Carrying Case w/ Strap
Sumitomo Q502S Clad Alignment Fusion Splicer
With new features and new technologies, the Q502S fusion splicer offers improved performance, reliability, and user experience. The Q502S series maintains SEL’s industry-leading features, including a world class light and compact frame, quick splicing, and environmental durability. The Q502S is powered by NanoTune™ AI technology, which greatly improves splicing efficiency and accuracy regardless of operational condition and user skill. The Q502S provides accurate estimated loss by HCA (Hot Core Analyzing) technology that analyzes the fiber image and identifies the ideal splice condition during splicing.
Features:
- NanoTune greatly improves splicing efficiency and accuracy regardless of operation condition and user skill.
- Hot Core Analyzing provides accurate estimated loss by analyzing the fiber image through high-quality microscopes during splicing.
- The Q502S introduces a fiber type detection function = allowing the q502s to distinguish between MMF and SMF fiber types and ensure use of the correct splice program
- Fast Splicer with 6-Second Splice Time and 12-Second Heaters
- Long-Life Battery for 250 Splice and Heater Cycles Per Charge
- Long-Life Electrodes Up to 6,000 Arcs
- Ruggedized Design for Shock (Drop from 76 cm on 5 Faces), Water and Dust Resistant (IP52)
- 4.3-inch TFT Color LCD Monitor, Fully Navigational Touch Screen Monitor
| Specifications | |
| Optical fiber requirements | |
| Material | Silica glass |
| Profile types | Single / SMF (G.652), MMF (G.651), DSF (G.653), NZDSF(G.655), BIF(G.657) |
| Fiber diameter | 125µm, Coating diameter : 250µm to 3mm (by multi clamp option) |
| Cleave length | 5 to 16mm for single fiber, 8mm for drop cable |
| Standard Performance | |
| Splice loss (typical) | SMF : 0.03dB, MMF 0.01dB, DSF : 0.05dB, NZDSF : 0.05dB |
| Splice time (typical) | 6sec (S< G652 Quick Mode) |
| Heating time (typical) | 12sec |
| Splice & Heat cycles per battery full charge | Approx. 250 |
| Fiber view & Magnification | 2 CMOS cameras observation, 180X (zoom 370X) |
| Proof test | 1.96 ~2.09n |
| Applicable protection sleeve | 60mm, 40mm & Sumitomo Electric Nano sleeves |
| Programs | |
| Splice programs | Max. 300 |
| Heating programs | Max. 100 |
| Functions | |
| Splice image capture / splice data storage | 200 images / 10,000 splice data (internal memory only) 50,200/20,000 (with 16GB SD card) |
| Automatic arc calibration | Automatically compensates for environmental condition changes |
| Display of remaining Splice & Heat cycles | Provided (Battery Mode) |
| Size / Weight | |
| Size | 126(W) x 154(D) x 101(H)mm (without protrusion) |
| Weight | 0.9kg (without battery) / 1.2kg (with battery BU-17) |
| Monitor | 4.3 inch color LCD display with capacitive touch screen |
| Power supply | |
| AC input | AC 100 ~ 240V, 50/60Hz (ADC-15) |
| DC input | DC10 ~15V |
| Battery pack | Li-ion 10.8V, 4,560mAh (BU-17) |
| Electrode life | 6000 arc discharges |
| Software updates | Internet |
| Data management | Can be stored, edited and analyzed by dedicated PC software |
