Trend Networks Navitek IE Profinet Ethernet Tester

Trend Networks Navitek IE Profinet Ethernet Tester

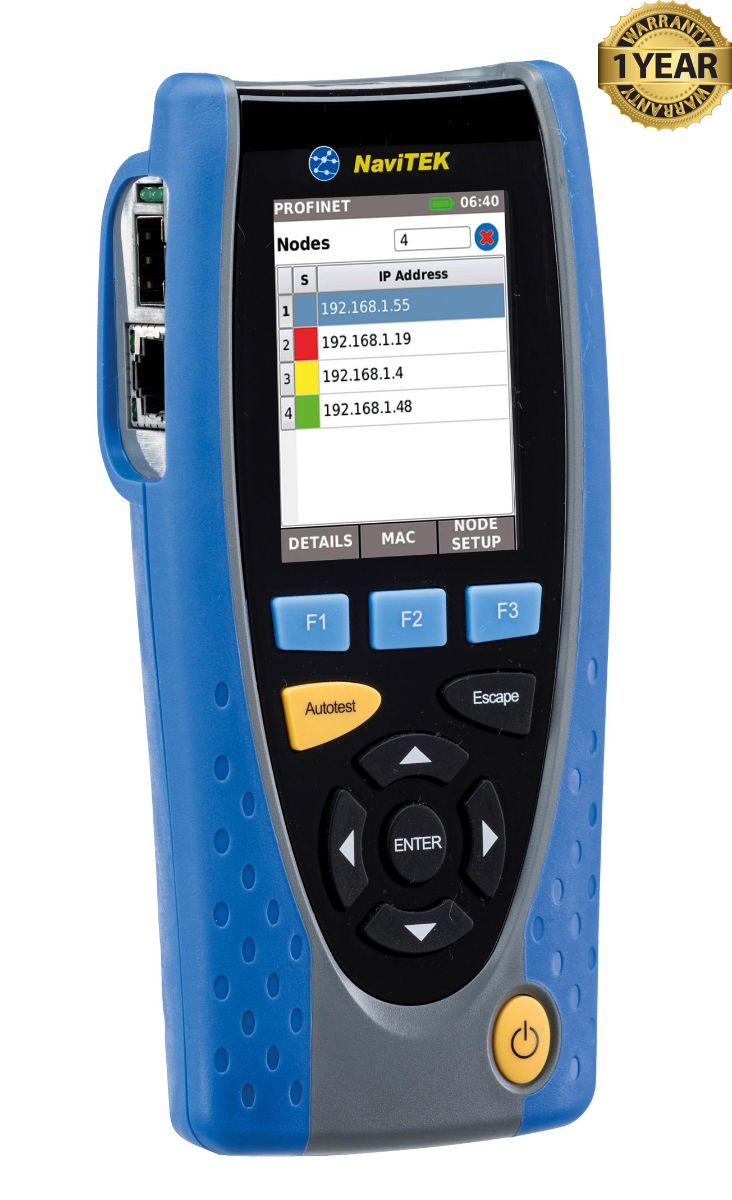

The TREND Networks NaviTEK IE PROFINET Ethernet Tester is a handheld instrument used to commission, maintain, and troubleshoot industrial networks. It combines PROFINET diagnostics with standard Ethernet network tests, helping technicians investigate communication problems between connected equipment.

Its cable-testing functions identify incorrect wiring, split pairs, broken wires, and short circuits. It also measures cable length and distance to certain faults. Suitable adapters support M12 industrial connections, while optional optical modules enable fiber-link checks.

The NaviTEK IE discovers network devices and displays information such as IP addresses, device names, and configuration details. Technicians can identify duplicate addresses or incorrect names and change supported node settings directly from the tester. This simplifies troubleshooting without requiring a laptop and specialized software.

A traffic-light health check highlights devices that may need attention. Its NETMAP comparison tool reveals changes between network scans, while an event log records problems for up to 48 hours. A device-blink function helps technicians physically locate equipment by flashing its LEDs.

The tester also generates PDF and CSV reports to document results, with sharing available through the TREND AnyWARE app. These records help technicians demonstrate completed commissioning work and compare network conditions during later maintenance. Its portable design brings cable checks, device diagnostics, and reporting together in one instrument.

Features:

• PROFINET diagnostics for commissioning, maintenance, and troubleshooting.
• Copper cable wiremapping to detect opens, shorts, miswires, and split pairs.
• Cable-length and distance-to-fault measurements using TDR.
• M12 industrial cable testing with suitable adapters.
• Fiber-link testing and received optical-power measurement with supported optional SFP modules.
• Network device discovery, including IP addresses, device names, vendor details, and software versions.
• Device configuration to correct supported IP-address and naming issues.
• Traffic-light network health checks to highlight potential problems.
• NETMAP comparison to identify added, removed, or reconfigured devices.
• Up to 48 hours of event logging to investigate intermittent faults.
• Device LED flashing to locate equipment.
• Ping and traceroute tests for connectivity troubleshooting.
• PoE/PoE+ detection and load testing.
• 10/100/1000 Mbps Ethernet link-speed detection.
• VLAN detection and traffic-utilization display.
• Touchscreen operation.
• PDF and CSV reports, with sharing through TREND AnyWARE.
