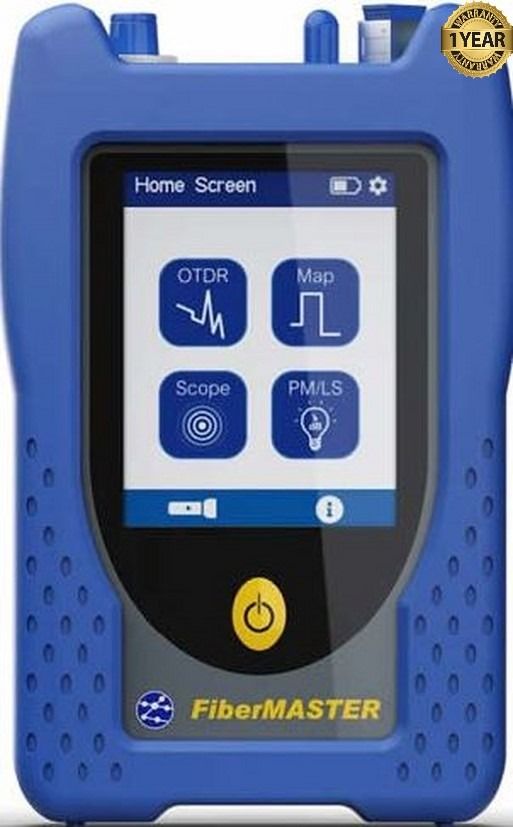

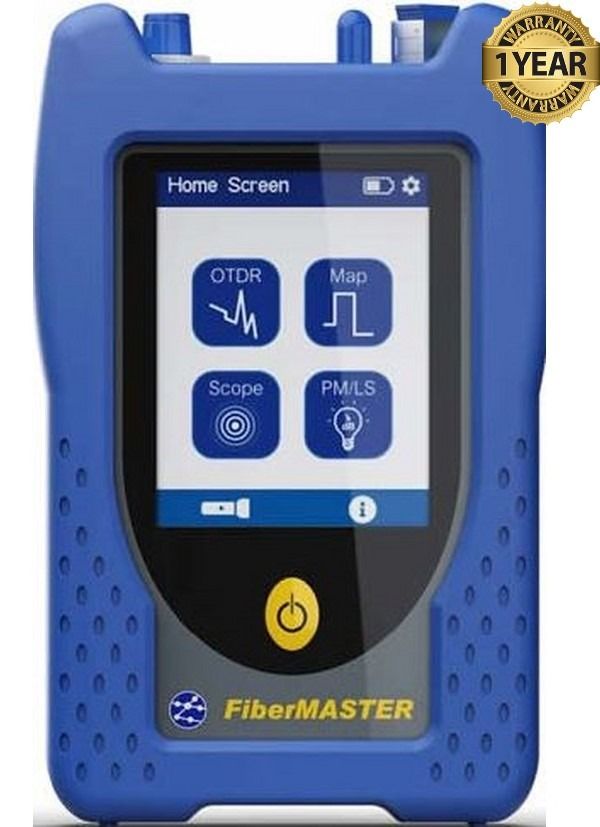

Trend Networks R240-QIP FiberMaster Quad Mini-OTDR
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- Trend Networks R240-QIP FiberMaster Quad Mini-OTDR [BC# - L/T*]
- OTDR Quad Source:
- 1300nm
- 1310nm
- 1550nm
- 1625nm
- Power Meter Source:
- 850nm
- 1300nm
- 1310nm
- 1490 nm
- 1550nm
- 1625nm
- AC Adapter/Charger
- Power Cord
- Ethernet Cable
- USB PC interface Cable
- Carrying Case
Trend Networks R240-QIP FiberMaster Quad Mini-OTDR
As one of the smallest OTDRs in the world you will find them easier to carry and operate while the rubberized housing will protect your investment. The simplified setup options makes them easy to use, saving you time on training and reducing the likelihood of errors.
The Trend Networks R240-QIP FiberMASTER Quad OTDR with SC Connectors, Inspection Port and Power Meter features high dynamic range and small dead zones providing precision required for installation and troubleshooting. The software simplifies certification of cabling to meet TIA/ISO/IEC/IEEE requirements with simple pass/fail results.
The TREND Networks R240-QIP FiberMASTER OTDR makes it easier to verify, troubleshoot, and certify fiber optic cabling. To perform end-to-end testing on multimode or single-mode cabling, the instrument can be paired with a light source.
The FiberMASTER series offers compact and user-friendly fiber optic testers, including OTDRs, power meters, and inspection probes, designed for speed and accuracy in testing and certifying fiber optic cabling. Built in the USA and verified for accuracy by GHMT AG, these devices are ruggedized for durability and come with minimal training requirements. The series aims to provide significant cost savings while ensuring reliable performance for cable installers and technicians.
Specifications:
OTDR:
|
Display Range |
~256 km |
|
Wavelength Range |
850 nm, 1300 nm, 1310 nm, 1550 nm |
|
Dead Zones |
1m Event, 5m Attenuation |
|
Minimum Sampling Resolution |
2.36 in. (6 cm) |
|
Sampling Points |
~128,000 |
|
Storage Results |
~40,000 |
|
Connector Type |
SC |
Power Meter:
|
Detector Type |
InGaAs |
|
Units of Measure |
dBm, dB |
|
Wavelength Range |
850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm |
|
Measurement Range |
5 to -77 dBm |
|
Uncertainty |
± 0.18 dB under reference conditions, ± 0.25 dB from 0 to -65 dBm, ± 0.35 dB from 0 to 5 dBm/-65 to -77 dBm |
|
Resolution |
0.01 dB |
|
Connector Types |
LC, SC, FC, ST, 1.25 mm universal, 2.5 mm universal |
General:
|
Display |
3.5 in. (8.9 cm) color resistive touchscreen |
|
Display Resolution |
240 x 320 px |
|
Communication Interfaces |
Micro-USB, Bluetooth |
|
Measurement Range |
5 to -77 dBm |
|
Safety: |
OTDR Class I (FDA/IEC-825-1) |
