Trend Networks Signaltek QT 10G Copper Qualification Tester

Trend Networks Signaltek QT 10G Copper Qualification Tester

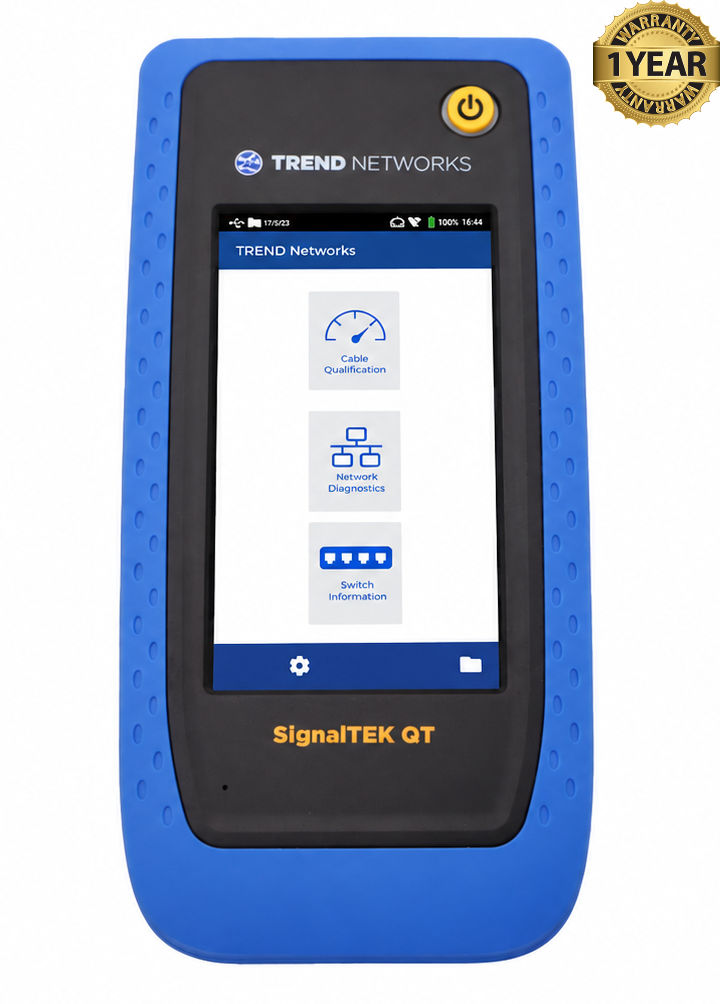

The TREND Networks SignalTEK QT 10G Copper Qualification Tester is a portable instrument used to check Ethernet cabling and troubleshoot network connections. Designed for installers and IT technicians, it determines whether copper network cables can support a selected Ethernet speed, from 10 Mb/s through 10 Gb/s, including 2.5G and 5G connections.

The tester evaluates cable performance by measuring characteristics such as near-end crosstalk, return loss, and insertion loss. These tests help identify whether installed cabling is suitable for the intended network speed. Its live wiremap and fault-location functions also help technicians find wiring problems and determine where faults occur along a cable.

For troubleshooting active networks, the SignalTEK QT includes tools such as ping, traceroute, device discovery, and switch-port information. It also performs Power over Ethernet load testing up to 90 watts, helping confirm that a connection can supply sufficient power for equipment such as wireless access points, IP cameras, and VoIP phones.

The SignalTEK QT also scans Wi-Fi access points to check signal strength and identify channel conflicts. Its connection to TREND AnyWARE Cloud supports project management, test setup, and sharing results, while remote-access tools allow colleagues to assist with diagnostics. Together, these functions help technicians assess cabling, investigate connection problems, and document their work.

Features:

• Copper cable qualification up to 10 Gb/s, including 10/100 Mb/s, 1G, 2.5G, and 5G.
• Cable performance testing for near-end crosstalk, return loss, and insertion loss.
• Live wiremap to identify wiring faults.
• TDR fault location to determine the distance to cable faults.
• Support for up to 12 identification remotes for testing multiple connections.
• PoE load testing up to 90 watts to check power delivery.
• Network diagnostics, including ping, traceroute, device discovery, and switch-port information.
• Wi-Fi access-point scanning to check signal strength and identify conflicts.
• TREND AnyWARE Cloud connectivity for project management, test setup, and sharing results.
• Remote support through TeamViewer and VNC.
• RJ45, wired Ethernet, USB-C, and two USB-A ports.
