UE Systems Ultraprobe 15000 MPH Ultrasonic Leak Detection System UP15000
Condition: Refurbished/Calibrated
Warranty: 1 Year Warranty
Shipping: USA & Worldwide

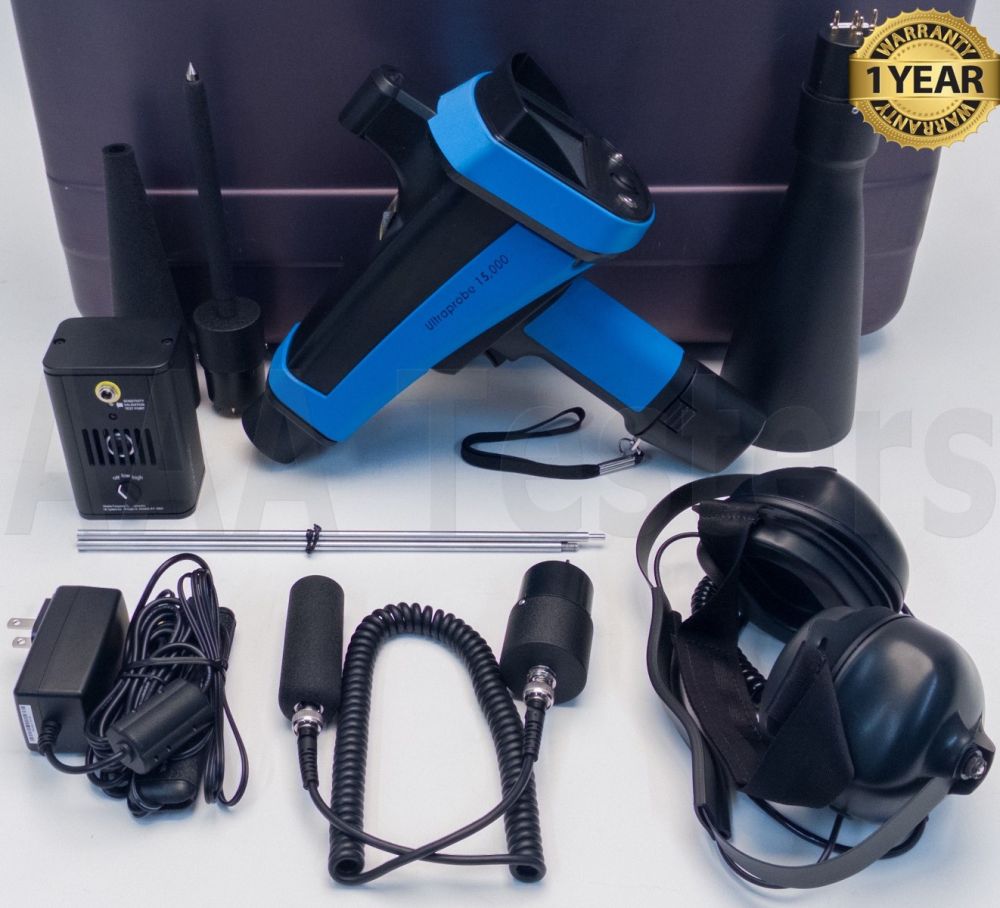

- UE Systems UltraProbe 15,000B MPH Ultrasonic Leak Detection System
- UE WTG-1 Tone Generator
- UE LRM9:L 102514 Long Range Module
- Rubber Focusing Probe
- (3) Extension Rods
- UE Stethoscope Module w/ Screw-In Rod
- UE Magnetic Transducer & Cable
- AC Adapter/Charger
- UE Headphones
- Hard Carrying Case
UE Systems Ultraprobe 15,000B Ultrasonic Leak Detection System
Truly an ultrasonic condition monitoring laboratory that fits in the palm of your hand, the Ultraprobe 15,000. Touch is so sophisticated and so advanced, it’s simple.The centerpiece of the Ultraprobe 15,000 Touch is its touch screen technology. A true “full-service inspection system”, you will be amazed at how many different ways you can use it, as well as how many different applications it can be used for. Touch an icon and the world of ultrasonic inspection opens for you.
View/analyze sound samples on board, save sound, and even the image of the sound. Adjust the sample rate. All records are stored automatically on the SD card (after test is complete, you can conveniently remove the card from the instrument and load it into UE Systems data management software: Ultratrend DMS)
The Ultraprobe 15,000 Touch is the ultimate inspection system. Used for almost any plant application, the system will measure, analyze and collect all data using simple touch screen technology during your route inspection. You have never experienced a system so robust, that it’s simple.
Applications:
On Board Analysis of Mechanical Inspection/Trending
- Bearing/Conditions
- Rubbing Conditions
- Cavitation
- Gears/Gear Boxes
- Pumps/Motors
- Lack of Lubrication/Over Lubrication
On-Board Analysis of Electrical Inspection
For detection and analysis of these failure modes:
- Arcing
- Tracking
- Corona
For use in these applications:
- Switch gear
- Transformers
- Insulators
- Relays
- Bus Bars
On Board Analysis of Leak Detection/ Energy Conservation
- Valves
- Steam Traps
- Compressed Air
- Compressed Gases (O2 , NO, etc.)
Specifications:
| Construction: |
Hand-held pistol type made with coated aluminum and ABS plastic |
| Circuitry: |
Solid State Analog and SMD Digital Circuitry with temperature compensation and true RMS conversion |
| Frequency Range: |
20 kHz to 100 kHz (tunable in 1 kHz increments) |
| Response Time: |
< 10 ms |
| Display: |
QVGA Touch Screen - IR, Laser Pointer, Camera, Spectrum Analyzer |
| Sound Recording |
WAV File Format |
| Memory: |
400 storage locations |
| Battery: |
Lithium ION Rechargeable |
| Operating Temperature: |
0 °C to 50 °C (32 °F to 122 °F) |
| Outputs: |
Calibrated hetrodyned output, decibel (dB) frequency, SD Card |
| Probes: |
Trisonic Scanning Module and Stethoscope Module, Long Range Module (Laser Sighting) and RAS-MT |
| Headset: |
Deluxe noise attenuating headphones - for hard hat use |
| Indicators: |
dB, Frequency, Battery Status and 16 Segment Bar Graph |
| Sensitivity: |
Detects .127 mm (.005”) diameter leak @ .34 bar (5 psi) at a distance of 15.24 m (50 ft.) |
| Dimensions: | Complete kit in Zero Halliburton aluminum carrying case 21.5" x 18.5" x 8" (55 x 47 x 20 cm) |
| Weight: |
Pistol Unit: 2.35 lbs. (1.1 kg) Complete Carrying case: 19 lbs. (8.6 kg) |
| Display Modes: |
dB (main), IR, ABCD, Spectrum and Application Specific, Spectrum Analyzer (modes): Spectrum, Time Series & Dual Specific |
