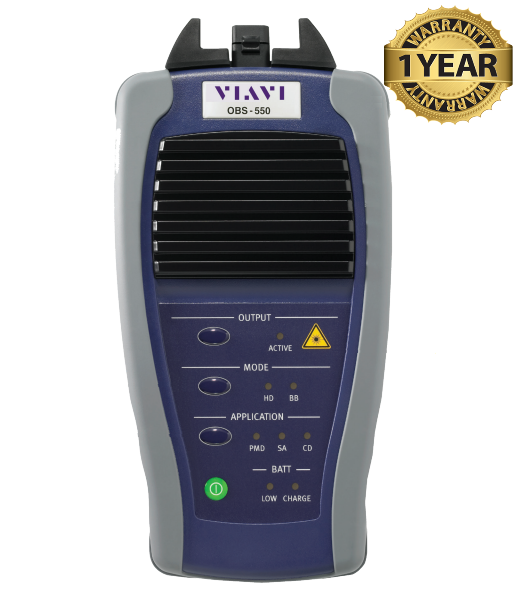

Viavi OBS-550 Optical Broadband Source
$9,499.00
Availability:
In stock
SKU
1B47
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- Viavi OBS-550 Optical Broadband Source (BC# -L/T*)
- USB Cable
- AC Adapter/Charger
- Carrying Case (G)
Request a Quote for
Viavi OBS-550 Optical Broadband Source
The OBS-500/550 combines three applications in one rugged and splash-proofed field solution. Its high output power (OBS-550) and wide wavelength range enable the characterization of any fiber network configuration. In combination with the VIAVI Optical Dispersion Measurement Modules (ODM), it allows high performance CD, PMD and AP measurements to be performed.
- Cost-effective solution, designed for high-performance testing
- SmartClass design for harsh environmental conditions
- Battery-operated, portable field handheld
- High dynamic range for ultra-long haul PMD and CD testing
- Compatible with ODM module (8100 Series) modules for PMD, CD and AP Measurements • Covers the S, C, L bands (1460 – 1640 nm)
- OBS-550 version features a high dynamic mode to test non amplified links of up to 300 km for PMD and 260 km for CD
- Both versions allow testing through in-line amplifiers/EDFAs
Specifications:
| Wavelength Range | 1460 to 1640 nm |
| Output Power Level | >16 dBm >8 dBm |
| Spectral Power Density | >–46 dBm/0.1 nm (1485 to 1640 nm) >–30 dBm/0.1 nm (1530 to 1610 nm) |
| State Of Polarization | Polarized or non-polarized |
| Operating Mode Indication | LED (no display) |
| Optical Interface | PC with interchangeable adapter system |
| Battery Life | 2.5 hours |
| Power Supply | - Four dry batteries Mignon/AA 1.5 V or NiMH rechargeable cells Mignon/AA - AC line operation via separate AC adapter - Nominal range of use 100 to 240 V, 50/60 Hz |
