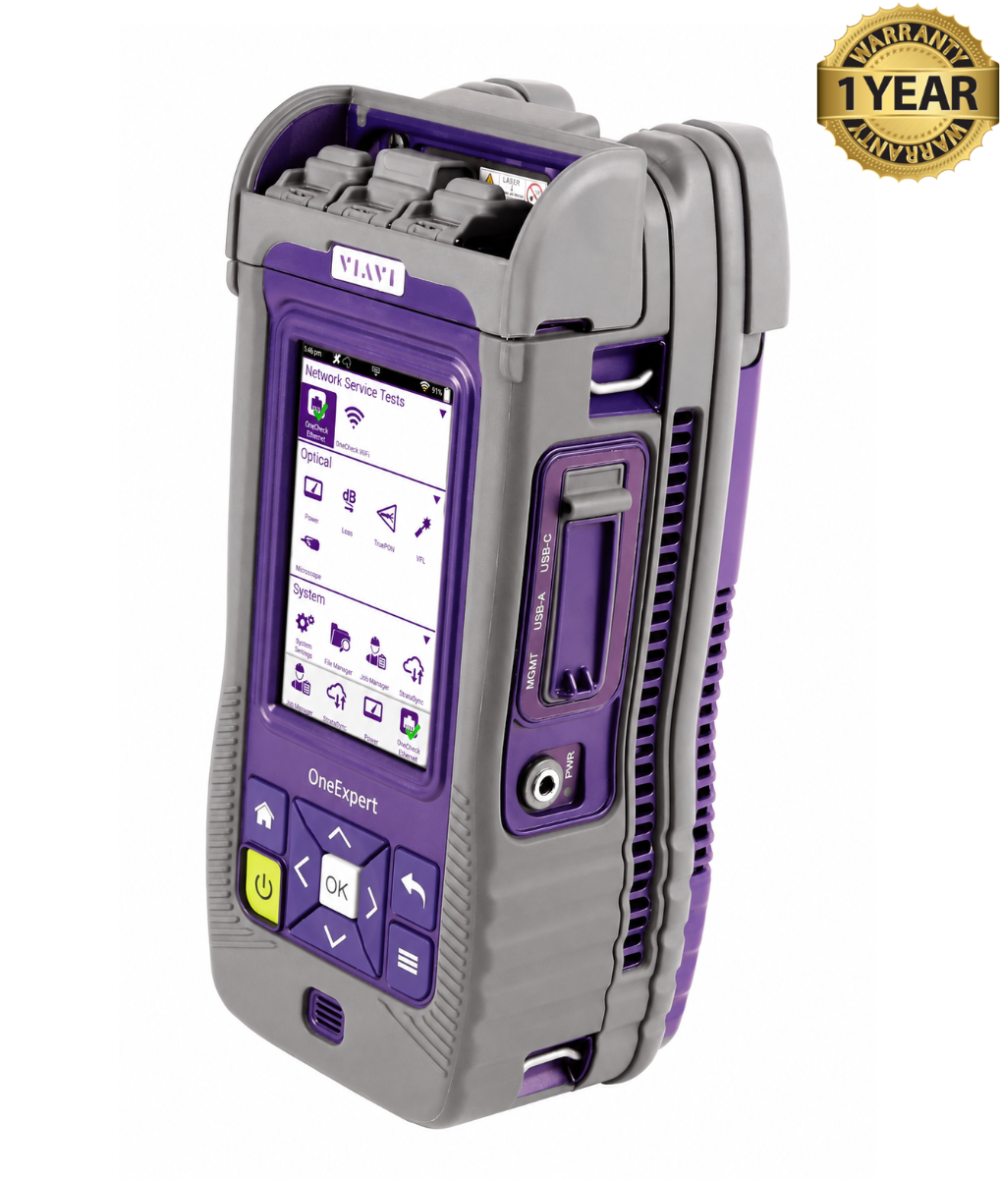

Viavi OneExpert ONX-730 Multi-Gigabit HFC & 10G Ethernet Network Tester
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- Viavi OneExpert ONX-730 Multi-Gigabit HFC & 10G Ethernet Network Tester (BC# -L/T*)
- Carrying Case (G)
Viavi OneExpert ONX-730 Multi-Gigabit HFC & 10G Ethernet Network Tester
The VIAVI OneExpert ONX-730 is a handheld tester for installing, activating, and troubleshooting multi-gigabit broadband services. Designed for hybrid fiber-coaxial (HFC) networks, it brings cable signal analysis and network service testing together in a rugged instrument for field technicians.
For cable network work, the ONX-730 uses a DOCSIS 3.1 RF module to assess downstream and upstream signals, identify interference, and help locate service problems. Its guided OneCheck workflows present clear results, making it easier to verify a connection after installation or repair.
The tester also supports Ethernet connections from 100 Mbps through 10 Gbps using its RJ-45 port. Technicians can check IP connectivity, run ping and traceroute tests, and measure service speed to determine whether a customer is receiving the expected performance. Optical Ethernet testing through SFP+ is available with the appropriate option and transceiver.
Depending on its configuration, the ONX-730 can add PON optical power measurements, fiber fault-location tools, and Wi‑Fi 7 testing. Its modular design lets service providers equip technicians for the networks they maintain, while saved results support documentation and follow-up troubleshooting.
Features:
- DOCSIS and RF testing for HFC cable networks, including signal and ingress troubleshooting.
- Multi-gigabit Ethernet testing through an RJ-45 port at 100 Mbps, 1G, 2.5G, 5G and 10G.
- SpeedCheck testing up to 10 Gbps, plus IP connectivity, ping and traceroute tests.
- OneCheck guided tests with pass/fail results to help technicians verify service.
- Optional fiber and PON tools, including optical power measurement, a visual fault locator and PON verification.
- Optional SFP+ optical Ethernet and Wi‑Fi 7 testing.
- Rugged IP54-rated construction, a modular design and a field-replaceable rechargeable battery.
- Saved, geotagged results with VIAVI StrataSync and mobile app support.
| Specifications | VIAVI OneExpert ONX-730 |
|---|---|
| Product type | Handheld HFC, DOCSIS, Ethernet and optional fiber service tester |
| Ethernet speeds | 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps and 10 Gbps |
| Copper Ethernet interface | 10GBASE-T RJ-45 |
| Optical Ethernet interface | Optional SFP+; 1G or 10G depending on transceiver |
| Ethernet tests | Frame statistics, IP connectivity, ping, traceroute, web connectivity and speed test |
| Maximum speed test rate | Up to 10 Gbps |
| HFC / DOCSIS testing | DOCSIS 3.1 RF module; module version depends on package |
| RF frequency range | 0.5–1,218 MHz |
| Wi‑Fi testing | Wi‑Fi 7 testing available with the applicable option/package |
| Fiber testing | Optional optical power meter, PON testing and visual fault locator |
| USB ports | USB-C and USB-A 3.0 |
| Battery | Field-replaceable 96 Wh rechargeable lithium-ion |
| Operating temperature | −10°C to 50°C when not charging |
| Environmental rating | IP54 |
| Standard package accessories | Fitted protective case and two Cat6A Ethernet jumpers |
| Configuration note | Optical functions, transceivers and some software tests depend on the purchased package |
