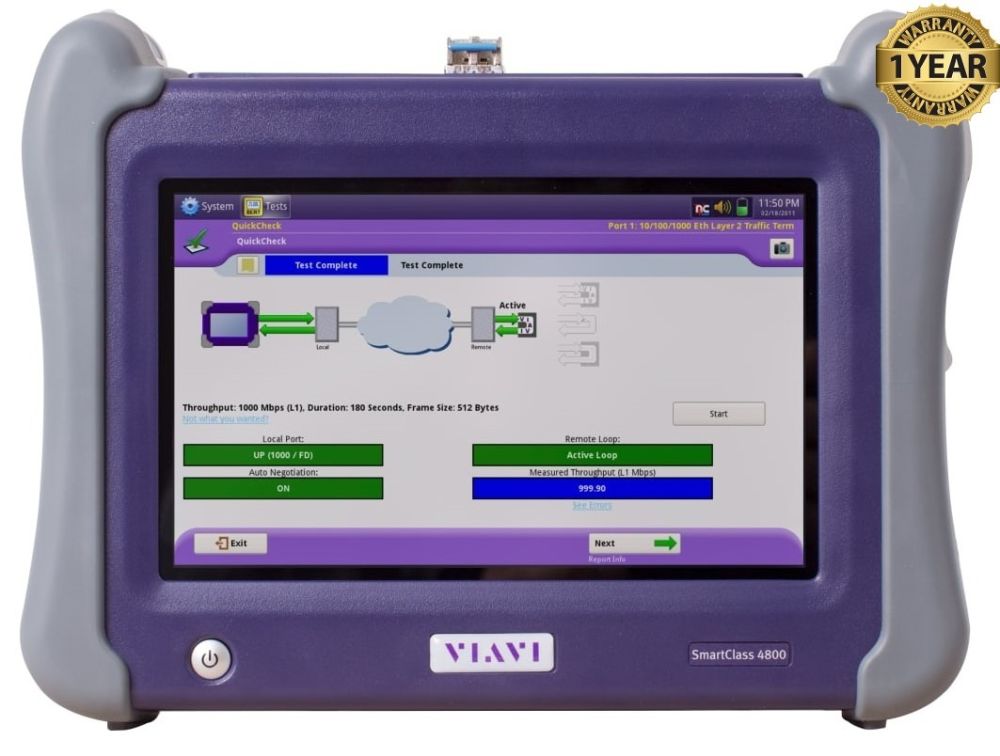

Viavi SmartClass 4800 Gigabit Ethernet Tester
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- Viavi SmartClass 4800 Gigabit Ethernet Tester: (BC# -L/T*)
- AC Adapter/Charger
- Carrying Case (G)
Viavi SmartClass 4800 Gigabit Ethernet Tester
The Viavi SmartClass 4800 Ethernet Tester is a modern tool for ensuring data and voice services achieve expected key performance indicators. It examines electrical (10/100/1000M) and optical (100M, 1GE) Ethernet links.
The SmartClass 4800 tester enables testing on optical and electrical Ethernet links, as well as on T1 and E1 interfaces. Technicians can carry out quality of service testing for voice services regardless of whether they are delivered over VoIP or PRI. Key features: 10/100/1000 electrical Ethernet interfaces and optical interfaces (100M, 1GE, 10GE). Standardized RFC 2544, Y.1564 SAM Complete, RFC6349 TrueSpeed (TCP), and MEF34 testing. Compatible with VIAVI fiber microscopes and optical power meters.
The product offers fast examinations with automated enhanced RFC 2544 and SAMComplete testing per ITU-Y Y.1564. It also features an integrated burst testing approach per MEF 34 and RFC 6430 TrueSpeed TCP throughput testing. It is suitable for applications including performance assessment of Carrier Ethernet services, activation and maintenance of metro Ethernet networks, deployment of active Ethernet (point-to-point) access services, switched networks, traffic generation and QoS verification. The device is optimised for field use with its multitouch screen, scripted workflows and clear results. It supports efficient practices with repeatable procedures and methods.
Features
- Electrical (10/100/1000) and optical (100M, 1GE) Ethernet interfaces
- Automated, enhanced RFC 2544 and SAMComplete testing per ITU-T Y.1564
- Integrated burst testing approach per MEF 34 and RFC 6349 TrueSpeed TCP throughput testing
- Compatible with VIAVI fiber microscopes, and optical power meters
Specifications:
| Interfaces | |
| Electrical Ethernet/IP | |
| 100/100/1000 Mbps | Single RJ45 |
| Optical Ethernet/IP | |
| 1000 Mbps | SFP Interface |
| Modes of Operation | Traffic,Streams, RFC2544, Asymmetric RFC2544,Loopback, Pattern,Ping,Traceroute,CableTest,and OpticalPower Measurement |
| Physical Testing | Link speed, link status,cable status, MDI/MDIX, distance to fault, pin mapping, pair length, polarity,skew Optical power measurement (dBm) |
| Power Supply | 4 AA field-replaceablebatteries (NiMH and Alkaline) Battery operating time approx.4 hrs of typical usage Supports sleep mode (instant-on, auto power off after2 hrs) AC line operation via external adapter/charger AC converter provides country Specific adaptor support (USA,UK, Australia,Europe) Charging time, internal : 4 hrs from empty to full |
| Language Support | The Smart Class Ethernet supports Simplified Chinese ,English, French, German, Italian, Japanese, Korean, Portuguese, Russian, and Spanish |
| General | |
| Permissible Ambient Temperature | Nominal range of use: 0 to +50°C Storage and transport –10 to +60°C |
| Operating humidity | 10 to 90% |
| Display | 320 x 240 pixel color |
