Viavi SmartPocket V2 OMK-35V2 SM Fiber Optic Test Kit
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- Viavi SmartPocket V2 OMK-35V2 SM Fiber Optic Test Kit (BC# -L/T*)
- Viavi OLS-35V2 SM Source (BC# -L/T*)
- 1130nm
- 1550nm
- LC Connector For Source
- Viavi OLP-35V2 SM Fiber Power Meter (BC# -L/T*)
- Power Meter:
- 850nm
- 1300nm
- 1310nm
- 1550nm
- 1625nm
- 2.5mm Connector For Power Meter
- Power Meter:
- Carrying Case (G)

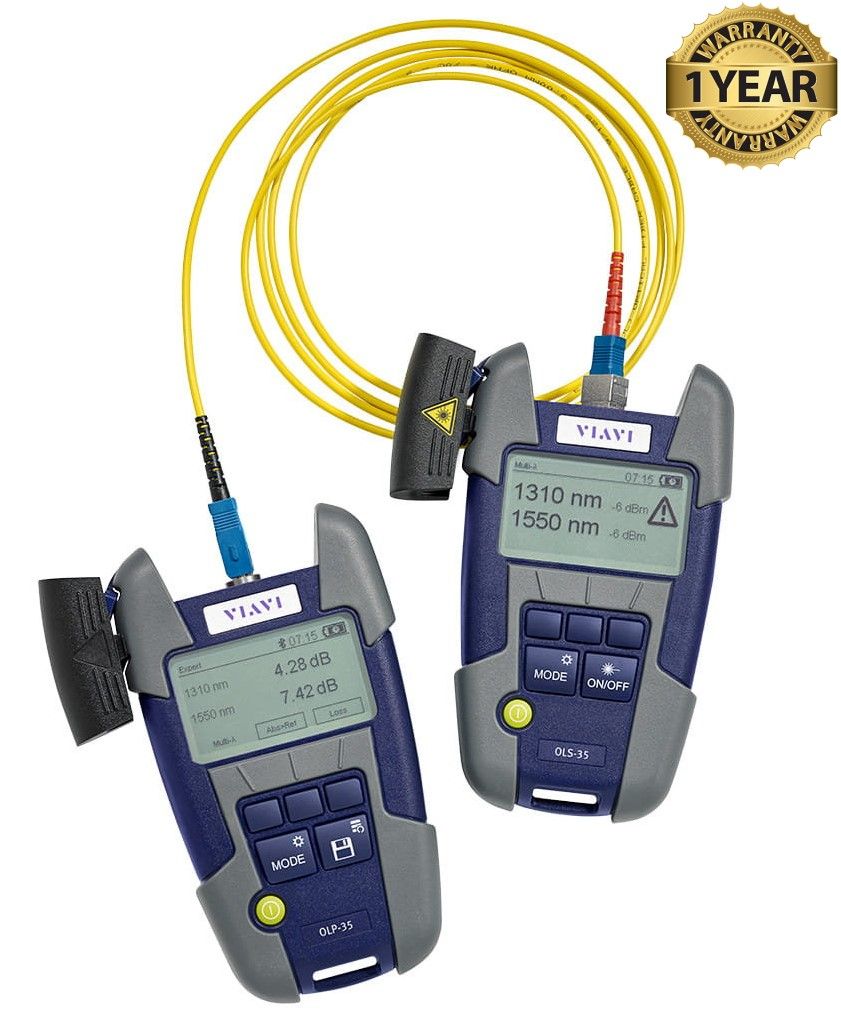

Viavi SmartPocket V2 OMK-35V2 SM Fiber Optic Test Kit
The Viavi OMK-35V2 SmartPocket V2 Service Provider Plus Single-Mode Test Kit is designed for installing and maintaining singlemode (SM) fiber optic networks. The test kit is equipped with the OLP-35V2 optical power meter and the OLS-35V2 dual-wavelength optical light source, which are both dedicated to power level, insertion loss measurements, and continuity checks.
Featuring a lightweight, shock-resistant splash-proof design and an extended operating time, the OMK-35V2 test kit is an ideal solution for field use. A switchable adapter system on the light source with a universal push pull (UPP) adapter on the power meter that handles all 2.5 mm connectors (1.25 mm as optional accessory) make the OMK-35V2 test kit ready for every connector type in the field.
Features:
- Essential optical test kits for Enterprise and Service Provider applications
- Certify standard, high dynamic and high power application
- Auto-wavelength and TWINTest features for test time efficiency and error-free testing
- Permanent reference level storage
JDSU OLS-35V2 Specifications:
| Wavelengths | 1310, 1550 nm |
| Wavelength Accuracy | ± 20 nm |
| FWHM Spectral Width | < 5 nm |
| Output Level | Typ. -3 dBm |
| Short Term Stability | ± 0.02 dB within 15 min |
| Long Term Stability | ± 0.05 dB within 8 hrs |
JDSU OLP-35V2 Specifications:
| Spectral Range | Broadband (800...1650 nm) |
| Resolution | 0.01 dB, 0.001 µW |
| Measurement Range for Power Level | -65…+10 dBm |
| Max. Power Level | +16 dBm |
| Measurement Uncertainty | ± 0.2 dB (± 5%) at ref. conditions |
| Tone Detection | 270 Hz, 330 Hz, 1 kHz, 2 kHz |
General Specifications:
| Data storage | 1000 results |
| Data download capability | USB-C for PC transfer |
| Dry batteries | 2x Mignon (AA) Alkaline 1.5 V |
| Rechargeable batteries | 2x Mignon (AA) NiMH 1.2 V |
| AC operation | via USB-C and Universal Power Adapter |
| Operating time | 45 hrs. (OLP-35V2/-35SC/-38V2 and OLP-37XV2), 15 hrs. (OLP-39 versions) and 25 hrs. (OLS) with the dry batteries |
| Operating temperature | -10 to +55°C (14 to 131°F) |
| Storage temperature | -20 to +70°C (-4 to +158°F) |
