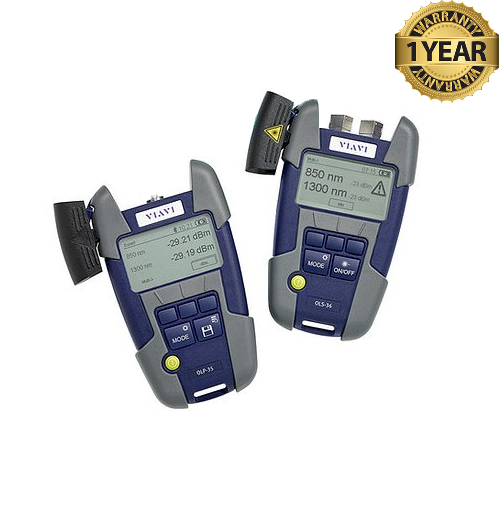

Viavi SmartPocket V2 OMK-36V2 Single-Mode Fiber Optic Test Kit
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- Viavi SmartPocket V2 OMK-36V2 Single-Mode Fiber Optic Test Kit (BC# -L/T*)
- Viavi OLS-36V2 SM Source (BC# -L/T*)
- 1310nm
- 1550nm
- LC Connector For Source
- Viavi OLP-35V2 SM Fiber Power Meter (BC# -L/T*)
- Power Meter:
- 850nm
- 1300nm
- 1310nm
- 1550nm
- 1625nm
- 2.5mm Connector For Power Meter
- Power Meter:
- Carrying Case (G)
Viavi SmartPocket V2 OMK-36V2 Single-Mode Fiber Optic Test Kit
The OMK-36V2 is a quad SM/MM kit with an OLS-36V2 and an OLP-35V2 for Enterprise LAN / WAN applications.
The VIAVI OMK-36V2 optical test kits are a range of pocket-sized and rugged instruments for installing and maintaining single mode (SM) and multimode (MM) fiber optic networks. All test kits are equipped with an optical power meter and a dual or quad-wavelength optical light source for power level, insertion loss measurements, and continuity checks.
The VIAVI OLS-36V2 SmartPocket Quad Light Source has 2 ports: A (Laser) for single mode and B (LED) for multimode fiber. It provides quick and accurate field testing for insertion loss and continuity at 850/1300/1310/1550nm wavelengths. The tester is equipped with Auto-λ and Multi-λ functions compatible with any SmartPocket V2 power meter. The unit has an Instant On feature, high-visibility graphical display with backlight and exceptionally long battery life (over 25 hours of continuous operation). Modulation frequencies: CW, 270 Hz, 330 Hz, 1 kHz, and 2 kHz.
Features:
OLS-36V2 Features:
- Quad-wavelength solution covers both single-mode (1310/1550 nm) and multi-mode (850/1300 nm) wavelengths
- One-button operation provides quick, simple, and error-free testing
- Performs fiber tracing by generating light source tones
- USB-C interface for powering, connection to PC, and firmware updates
- Ultra-reliable construction for rugged, outdoor use
- Exceptionally long battery life with over 50 hours continuous operation
- High-visibility backlit graphical display with context-sensitive softkey
- Equipped with Auto-λ and Multi-λ functions that are compatible with any SmartPocket V2 power meter (sold separately)
- Supplied with two mounted SC adapters
OLP-35V2 Features:
- Universal optical interface with UPP adapter supports all 2.5mm with option for 1.25mm connectors
- 1nm incremental wavelength settings
- Performs fiber tracing by detecting optical light source tones
- Storage for more than 1000 test results
- USB-C interface for powering, offload of results, and connection to PC
- Bluetooth low energy connectivity to VIAVI Mobile Tech App
- Ultra-reliable construction for rugged, outdoor use
- Exceptionally long battery life with over 70 hours continuous operation
- High-visibility backlit graphical display with context-sensitive softkey
- Convenient OptiChek measurement mode does not require wavelength configuration
- Auto-λ, Multi-λ mode delivers lightning-fast, error-free testing
- Automatic upload of results via VIAVI Mobile Tech application
- Calibrated at 850nm, 980nm, 1310nm, 1490nm, 1550nm, 1577nm, 1625nm and 1650nm
- Display range: -65 to +10 dBm
Viavi OMK-36V2 Specifications:
| Data storage | 1000 results |
| Data download capability | USB-C for PC transfer |
| Dry batteries | 2x Mignon (AA) Alkaline 1.5 V |
| Rechargeable batteries | 2x Mignon (AA) NiMH 1.2 V |
| AC operation | via USB-C and Universal Power Adapter |
| Operating time | 45 hrs. (OLP) and 25 hrs. (OLS) with the dry batteries |
| Operating temperature | -10 to +55°C (14 to 131°F) |
| Storage temperature | -20 to +70°C (-4 to +158°F) |
Viavi OLS-36V2 Specifications:
| Light Source Wavelengths | 850, 1300, 1310, 1550 nm |
| Wavelength Accuracy | -20 / + 40 nm (850, 1300nm) ± 20 nm (1310, 1550 nm) |
| FWHM Spectral Width | < 170 nm (850,1300nm) < 5 nm (1310, 1550 nm) |
| Output Level | Typ. -20 dBm (850,1300nm) Typ. -3 dBm (1310, 1550 nm) |
| Short Term Stability | ± 0.02 dB within 15 min |
| Long Term Stability | ± 0.05 dB within 8 hrs |
Viavi OLP-35V2 Specifications:
| Wavelength Range | 780 to 1650 nm |
| Spectral Range | Broadband (800...1650 nm) |
| Resolution | 0.01 dB, 0.001 µW |
| Measurement Range for Power Level | -65…+10 dBm |
| Max. Input Power Level | +16 dBm |
| Measurement Uncertainty | ± 0.2 dB (± 5%) at ref. conditions |
| Tone Detection | 270 Hz, 330 Hz, 1 kHz, 2 kHz |
| Data storage | 100 results |
| Data download capability | Micro USB interface for PC transfer |
| Dry batteries | 2x Mignon (AA) 1.5 V |
| Battery life | ≥200 hr Automatic power off after 20 minutes |
| Operating temperature | -10 to +55°C (+14 to +131°F) |
| Storage temperature | -40 to +70°C (–40 to +158°F) |
