Viavi SmartPocket V2 OMK-38V2 Single-Mode Fiber Optic Test Kit

Viavi SmartPocket V2 OMK-38V2 Single-Mode Fiber Optic Test Kit

The VIAVI SmartPocket V2 OMK-38V2 Single-Mode Fiber Optic Test Kit is a portable set of instruments for checking the performance of single-mode fiber links. It gives technicians the tools to measure optical power and insertion loss during installation, service activation, maintenance, and troubleshooting. The kit is particularly useful when a fiber route needs to be tested from end to end and its results documented.

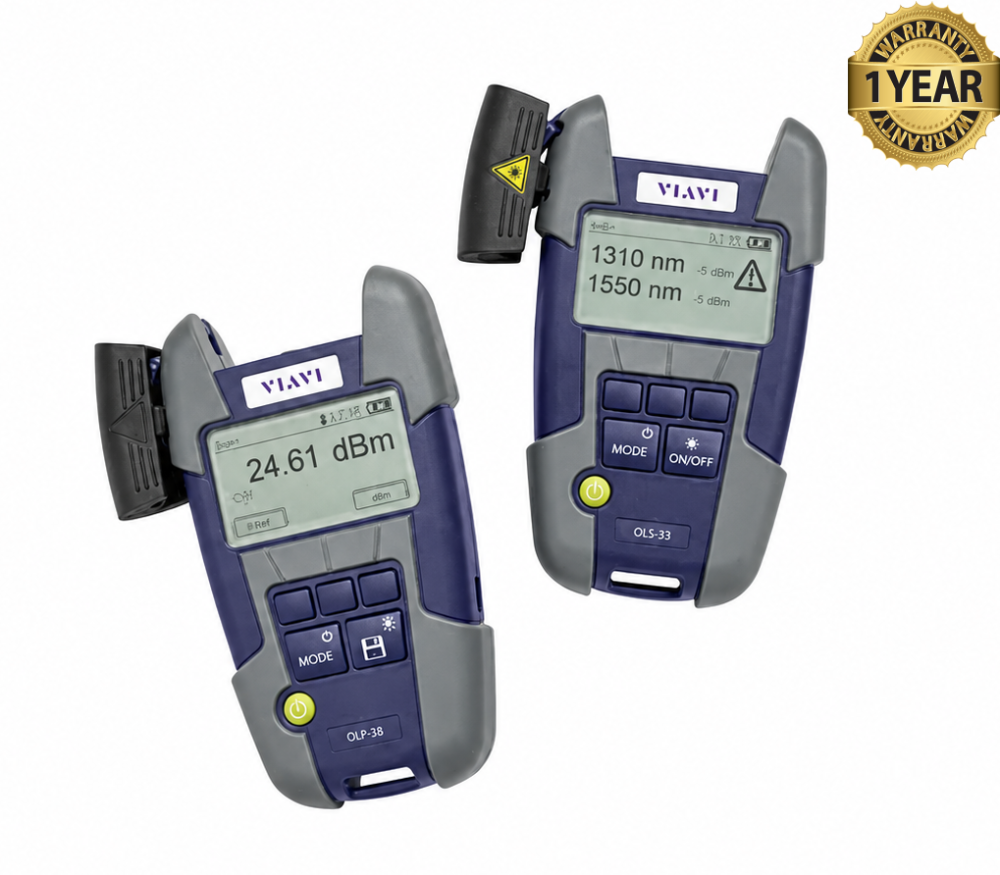

At the heart of the kit are two handheld instruments. The OLS-35V2 optical light source sends a test signal through the fiber at 1310 nm or 1550 nm. At the other end, the OLP-38V2 optical power meter measures the light that arrives. By comparing the transmitted and received levels, a technician can determine how much signal the link loses and assess whether its performance meets the required limits.

The OLP-38V2 is a high-power meter with a measurement range extending up to +26 dBm. This makes the OMK-38V2 suitable for single-mode telecom work as well as higher-power applications, including CATV and amplified DWDM networks. The instruments also support quick power checks, continuity checks, and test modes intended to simplify measurements across multiple wavelengths.

Both SmartPocket V2 instruments are compact and designed for field use. Their backlit displays make readings easier to see in changing light, and test results can be saved for later reporting. The OMK-38V2 brings the light source and power meter together in one kit, giving fiber technicians a practical way to verify signal levels and link loss before handing a connection over for service.

Features:

• Two-instrument kit: Includes an OLS-35V2 light source and an OLP-38V2 optical power meter.
• Single-mode fiber testing: Measures optical power, link insertion loss, and continuity.
• Two test wavelengths: The light source operates at 1310 nm and 1550 nm.
• High-power measurement: The power meter measures from −50 to +26 dBm, useful for CATV and amplified DWDM applications.
• Quick test modes: Auto-λ and Multi-λ help speed up measurements; OptiChek provides a quick power check.
• Saved results: Stores more than 1,000 results, with USB-C and Bluetooth transfer options.
• Portable field design: Pocket-sized instruments with backlit displays, instant startup, and AA battery or USB power options.
