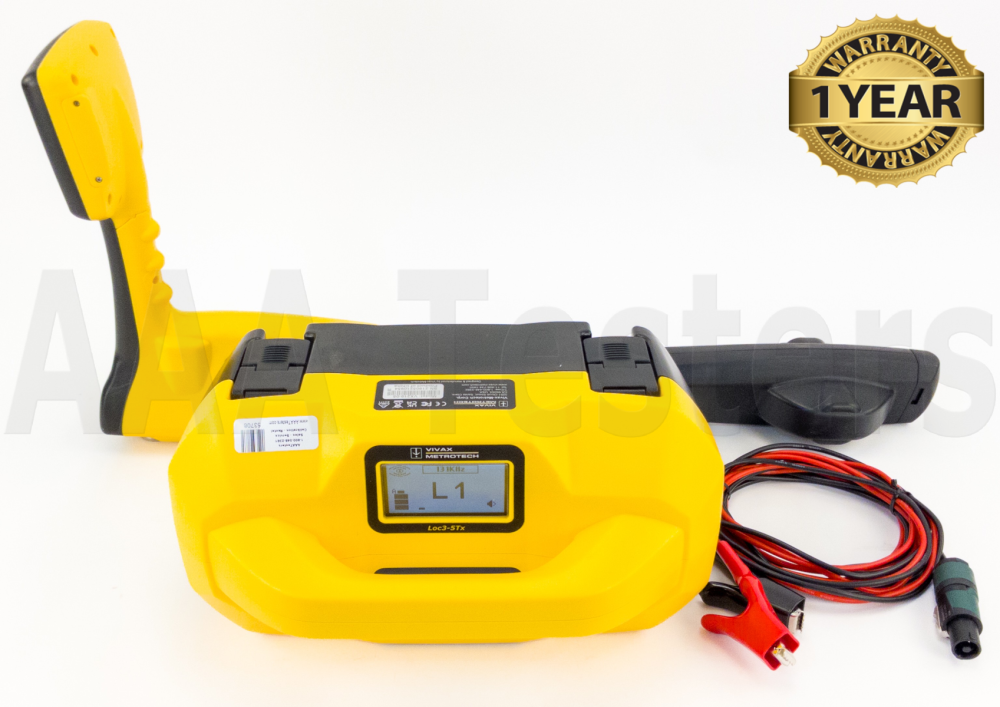

Vivax Metrotech VLoc3-5000 Utility Locator Receiver w/ Loc3-5Tx 5 Watt Transmitter

• Vivax Metrotech VLoc3-5000 Locator Receiver (BC# -L/T*)
• Vivax Metrotech Loc3-5Tx 5-Watt Transmitter (BC# -L/T*)

Vivax Metrotech vLoc3-5000 Locator & Loc3-5TX 5-Watt Transmitter

The vLoc3-5000 utility locating system brings an innovative element of real time distortion alerts, positive line identification, data collection and cloud-based data warehousing to utility locating.

Leading the way with breakthrough technologies that make your job easier, the vLoc3-5000 utility locating system is loaded with industry firsts. As a multi-frequency system, it builds on our long-term record of providing technological solutions that are easy-to-use. The Signal Select™ positive line ID and data logging features greatly improve productivity and open new avenues of data management from a hand-held pipe and cable locating system. The super-comfortable receiver boasts a 4.3”/10cm high visibility transmissive 16-bit color display and wireless communications link that can store and reuse data from the field. And because it's from Vivax-Metrotech, the vLoc3-5000 utility locating system delivers the high level of performance you need, plus the ease of use you count on.

The vLoc3-5000 Receiver: Breakthrough technology that's easy to grasp

The ergonomically designed vLoc3-5000 receiver is lightweight and balanced for all day use. Its clear color display the first ever on a locating instrument is intuitive and easy-to-read in all lighting conditions. The Bluetooth wireless communication technology links the receiver with other Bluetooth-enabled devices. Store virtually all display information as well as GPS date and time in our web-based data warehouses, VMMap or MyLocator3. This archived data is useful for work order ticket details, training, asset management and operation control.

This multi-frequency receiver has a built-in frequency range from 16Hz to 200kHz, passive power and radio modes, signal direction and signal select, giving you more choices than other systems on the market. Productivity is improved with the Signal Select™ and the Distortion Alerts features, reducing the subjective elements of a locate due to field distortion caused by bleed off and bleed over. From water to power to telephone to cable, one device can do it all to speed your team through more locates in a day.


* Internal GPS – To easily add GPS coordinates to the locate logs.
* Optional Tx-Link – To remotely control all transmitter functions from the receiver.
* Signal Select and Signal Direction – For positive line identification in congested areas.
* Magnetic field distortion Alerts – Color coded in active locate modes.
* Smart accessory detection – Allows the receiver to determine what type of accessory (clamp, antenna) has been plugged in and automatically acquires the calibration information from the accessory.
* Self-test mode – The self-test feature confirms that the equipment is fit for use and the calibration has not drifted from its expected settings.

Loc3 Series 5-Watt Broadband Transmitter

Key Features:
* Lightweight – Only 7.15 lbs. / 3.24 kg with Li-ion battery
* SD mode for positive location in congested areas
* AC/DC external power source
* Built-in AVO meter

The 5-Watt broadband transmitter has selectable induction and direct connection frequencies from 98Hz to 200kHz, SD mode (Signal Direction), fault find and true resistance measurement up to 1 Mohm. The two inch by one-inch dot matrix display with LED backlight shows output current, connection type, volts, resistance, frequency, volume, battery condition and high voltage warnings.

The optional Transmitter Link (Tx-Link) installed in the receiver and transmitter, remote operation of the transmitter from the receiver is possible. The range of the radio transmitter link depends on having a clear “line of sight” between receiver and transmitter but is typically around 300m /985 ft. Signal Direction (SD) mode feature verifies if the line being located is the target that the transmitter is connected to.

When a transmitter is connected to a target line, the signal travels along it and finds the easiest way to travel back, usually via the ground and ground stake. However, very often the signal will travel back along adjacent utilities which offer an easier route. As a result, there can be multiple signals radiating from utilities in the area making it difficult to identify the target line. These return signals are typically traveling in the opposite direction than the applied signal. The Signal Direction feature identifies which direction the signal is flowing and hence the target line.

Packaged in a lightweight, rugged, ergonomic IP54 housing, the transmitter provides consistent current output in direct connect, clamp or induction modes and protection against inadvertent connection to incoming voltages up to 240V.
