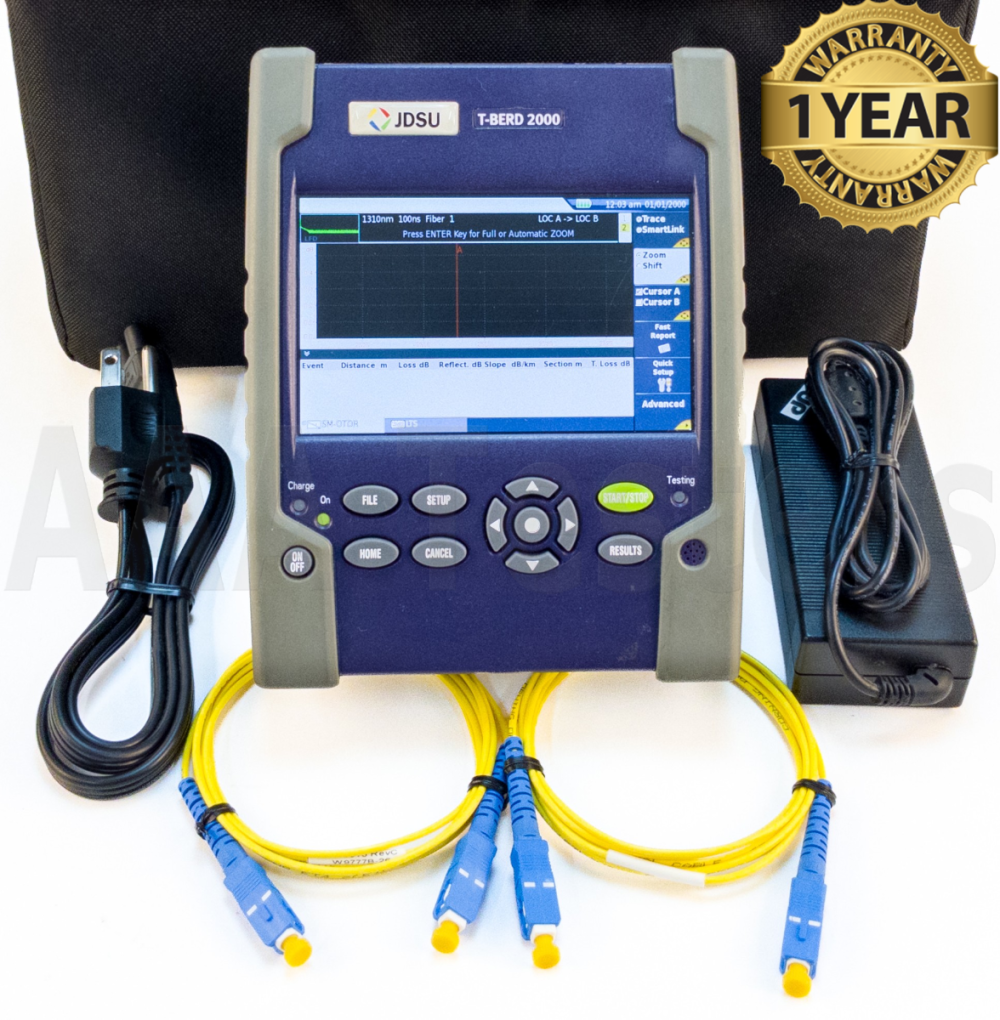

JDSU T-BERD 2000 4126 MA SM Long Haul OTDR

 JDSU T-BERD 2000 Modular Test Set
Costs, workflow, quality, network performance, and customer experience are critical for the success of todayﾒs fiber optic networks. Selecting the right test tools has become key toward meeting these needs.

The JDSU T-BERD 2000 is a handheld multi-test platform that provides field technicians with a single handheld unit to install, turn-up and maintain these networks to the highest standards.

Its innovative design ensures that all essential fiber test tools are close at hand, whatever the job or location. A large color screen with graphical user interface drives simple operation and optimal workflow in the field.

Test capabilities include a range of OTDR modules for multimode and single-mode testing, as well as a range of FiberCompleteTM modules for automated Insertion Loss/Optical Return Loss (IL/ORL), and fault finding. Both OTDR and FiberComplete modules are passive optical network (PON) optimized. The unit is also ready for conector end face pass/fail analysis to IEC standards with a digital analysis microscope.

Widest Range of Applications for Maximum Flexibility
The T-BERD 2000 provides the largest range of test capabilities offered in one handheld unit. The modular design allows service providers the maximum flexibility to scale their investment and evolve with the growth of their network.
The instrument supports the whole range of essential fiber analysis tools including connection inspection, connection check, source, ORL, OTDR, a power meter, a PON selective power meter, and CWDM optical spectrum analyzer.

Application modules used with the T-BERD 2000 can also be used with the T-BERD 4000 and the two products are interoperable.

Boosted Productivity with Seamless Data Workflow
The T-BERD 2000 integrates various communication capabilities allowing remote control, data and setup uploads/downloads, and report transfer. The unit has one high-speed 1G Ethernet port and three USB ports.

Features:

• Large 5-inch touch-screen display
• Field-installable modules
• Wide range of OTDR modules including Quad and PON
• FiberComplete automated IL/ORL, PON power meter, and CWDM analyzer
• Automated fiber inspection and IEC pass/fail analysis
• New-generation lithium polymer (LiPo) battery for 8-hour operation
• Cross-compatible with T-BERD 4000

Specifications:

General (typical at 25°C)
Display	5-inch TFT color touch screen (12.5 cm)  Resolution 800 x 480 WVGA
Interfaces	Two USB 2.0 ports  One mini-USB 2.0 port  RJ-45 LAN 10/100/1000 Mbps
Internal memory	1 GB (128 MB for storage)
Battery	Rechargeable lithium-polymer battery  8-hour operation as per Telcordia GR-196-CORE
Power supply	AC/DC adapter, input 100-250 VAC,  50-60 Hz; 2.5A max, output 12 VDC, 25W Electrical safety: EN60950-compliant
Size with module (H x W x D)	175 x 138 x 80mm  (6.9 x 5.4 x 3.2 in)
Weight with battery with battery and LM OTDR	0.864 kg (1.89 lbs) 1.21 kg (2.67 lbs)
Temperature	Operating: -20 to +50°C (-4 to 122°F)  Storage: -20 to +60°C (-4 to 140°F)
Relative humidity	0% to 95% non-condensing
Built-In Power Meter Specifications
Calibrated wavelengths	850/1310/1490/1550/ 1625/1650
Wavelength range	800 to 1650 nm in 1 nm steps
Accuracy	±0.2 dB
Measurement range	+5 to -50 dBm
Maximum resolution	0.01 dB/0.01nW
Connector type	Universal push pull (UPP)




 JDSU 4126MA SM OTDR Module



Central Wavelength	1310 ±20 nm 1550 ±20 nm
RMS Dynamic Range	40 dB 38 dB
Event Dead Zone	0.9 m
Attenuation Dead Zone	4 m
Network Type	FTTH/access/metro
Applications	Short/medium-haul qualification FTTH test up to 1x32 splitter
General (typical at 25°C)
Weight	0.35 kg (0.77 lb)
Dimensions (w x h x d)	128 x 134 x 40 mm (5 x 5.28 x 1.58 in)
Optical Interfaces
Interchangeable optical connectors	FC, SC, DIN, LC (PC or APC) and ST (PC)
Technical Characteristics
Laser safety class (21CFR)	Class 1
Distance units	Kilometers, feet, and miles
Group index range	1.30000 to 1.70000 in 0.00001 steps
Number of data points	Up to 128,000 or 256,000 data points
Distance measurement
Mode	Automatic or dual cursor
Display range	0.5 up to 260 km
Cursor resolution	1cm
Sampling resolution	4cm
Accuracy	±1 m ±sampling resolution ±1.10-5 x distance (excluding group index uncertainties)
Attenuation Measurement
Mode	Automatic, manual, 2-point, 5-point, and LSA
Display range	1.25 to 55 dB
Display resolution	0.001 dB
Cursor resolution	0.001 dB
Linearity	±0.03 dB/dB/±0.05 for LA
Threshold	0.01 to 5.99 dB in 0.01 dB steps
Reflectance/ORL Measurements
Reflectance accuracy	±2 dB
Display resolution	0.01 dB
Theshold	-11 to -99 dB in 1 dB steps
