AEMC PEL 103 Power & Energy Logger

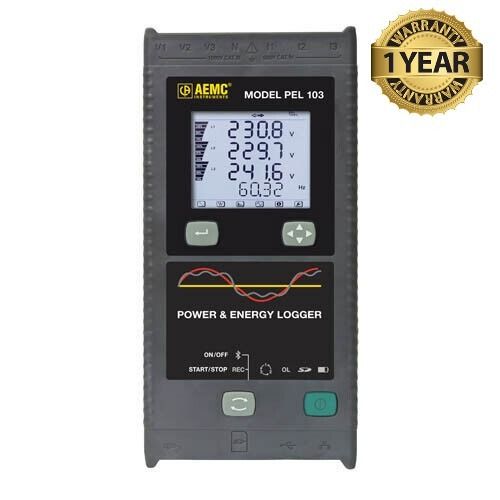

The PEL 100 series is a low cost, simple to use, single-, dual- (split-phase) and three-phase power/energy data logger. There are two models available; Model PEL 102 (no display) and Model PEL 103 (with a backlit digital display).

This product is ideal for electricians, engineers and contractors doing work in the area of building and system monitoring and upgrades, as well as residential and overall energy audits. All vital energy data is easily measured, recorded, and analyzed. Reports can be generated with confidence with minimal configuration time and effort (Standard and Customizable Reports supplied).

The PEL 100 series has many up-to-date features demanded by the present market conditions for energy and power consumption information needs. The instrument’s design enables it to be installed inside a load center panel (including the current sensors) and still allow the door to close on most panels. The PEL 100 series offers all the essential functions for logging power/ energy data from most electrical power networks in use today across the world (17 network set-ups provided). The PEL 100 series energy loggers measure and record three voltage inputs and current inputs, Watts, VARS, VA and Energy (kWh and kVA). Power Factor (PF), Displacement Power Factor (DPF), Crest Factor, Frequency and THD are calculated and recorded, as well. Individual harmonic % information from 1 to the 50th harmonic are recorded at the operator’s choice. All variables are recorded and stored at a one second interval and on user selectable demand intervals from 1 to 60 minutes. Energy costs can be calculated and displayed quickly and easily by simply inputting the unit cost for a kilowatt hour into the software. Data is stored on a removable SD card. Data can be retrieved using a USB cable, Bluetooth and/or the Ethernet (local or internet) connection or by transporting the SD card back to a PC. The comprehensive DataView software (included) provides the ability to view data from several hundred PEL 100 series instruments on a local network or over the internet, allowing the user to evaluate energy usage in a department or facility basis, a remote site, or even in a city, anywhere in the world. DataView allows measurements to be viewed in real-time on a PC and stored data to be downloaded for analysis and report generation.

Configuration of the PEL 100 series instruments is accomplished through DataView software either locally or remotely. Most of the configured parameters are pre-set in the instrument, keeping the user interface very simple and straightforward. Current probes are automatically detected and scaled to a pre-defined or user specified configuration when connected to the instrument. User selections include network type, demand interval, recording length, voltage and current ratios (where necessary), recording duration (defined either by time and/or date) and communication method. Password protection can be configured for Bluetooth and network communication to guard against unauthorized access and protection of data integrity.

The DataView software provides the ability to view power, harmonic (for AC measurements) and RMS, as well as DC data in real-time and download recorded sessions for more extensive analysis and report generation. One second trend data, demand interval trend graphs and tabular listings can be displayed and printed. Energy costs can be calculated from the downloaded session. Source and load graphs can be plotted. Individual phase and the sum of all phases can be evaluated. Once data is downloaded and displayed, the user has access to a variety of tools to analyze individual data points or sections of the recorded data without the frustration of having to deal with layers of button pushing to get to the information they need. This simple to use yet comprehensive power and energy logger will be an invaluable asset to your power and energy monitoring and analysis needs.

Features:

• Simple to use, single-, dual- (split-phase) and three-phase (Y, ') power & energy loggers
• Provides all the necessary functions for Power/Energy data logging for 50Hz, 60Hz, 400Hz and DC distribution systems
• Current measurements from 100mA up to 10,000A using flexible current sensors
• Power measurements: VA, W and var
• Energy measurements VAh, Wh (source/load indication) and varh (including quadrant indication)
• Record cost of energy usage
• Power Factor (PF), Cos (M), Tan ()) and DPF
• Crest Factor
• Total Harmonic Distortion (THD) for voltages and currents
• Harmonics up to the 50th order for 50/60Hz voltages and currents and 7th order for 400Hz
• Frequency measurements
• Simultaneous RMS measurements of each phase @ 128 samples/cycle and DC
• Bright blue three line LCD on the Model PEL 103 (3 phases shown simultaneously)
• Storage of measured and calculated values on a SD-Card or SDHC-Card
• Automatic recognition of the connected current sensors/probes
• Configuration of current and voltage ratios to external PT and CT ratios
• 17 types of hook-ups for supported electrical distribution systems
• USB, LAN, and Bluetooth communication
• Includes DataView software for data storage, real-time display, analysis and report generation with pre-defined or custom templates
