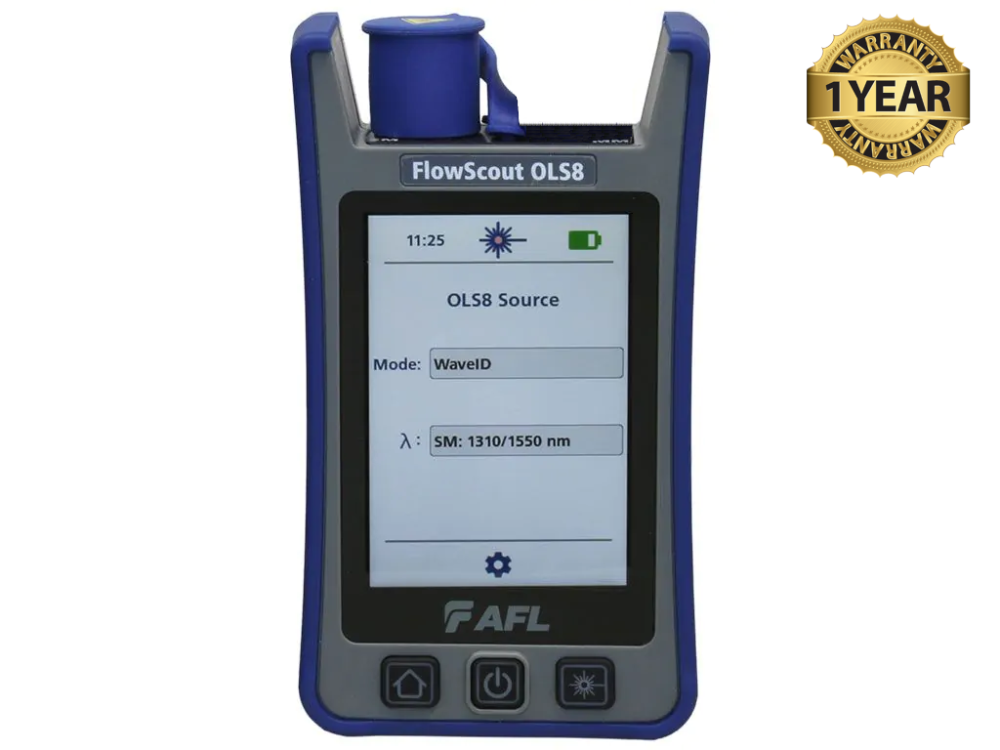

AFL FlowScout OLS8-SM XGS PON Single Mode Fiber Optic Light Source
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- AFL FlowScout OLS8-XLGS Single Mode Fiber Optic Light Source (BC#: -L/T*)
- SM Source:
- 1310nm
- 1490nm
- 1550nm
- SM Source:
- USB PC Interface Cable
- Carrying Case
AFL FlowScout OLS8-XGS Single Mode Fiber Optic Light Source
AFL’s FlowScout OLS8 optical light source represents the next generation of smart optical light sources. Built on the legacy of AFL/Noyes OLS series optical light sources, the FlowScout OLS8 provides a stable and accurate light source for use in enterprise LAN, data center, PON, and broadband networks.
Intuitive operation: With a simple-to-use color touchscreen interface, fiber technicians can quickly set-up, test, validate, and document installed fiber plant, as well as perform troubleshooting as needed.
Wave ID for reduced test time and errors: In the Wave ID mode, the OLS8 encodes each wavelength with a unique Wave ID code. When used with a Wave ID capable power meter, such as OPM8, the pair can test up to three wavelengths simultaneously reducing test time and eliminating wavelength-setting errors. The light source also offers CW mode (continuous output - no encoding) and supports test Tone generation (270 Hz, 330 Hz, 1 kHz, 2 kHz) to assist in troubleshooting.
Flexible reporting: When used in conjunction with AFL’s FlowScout OPM8 power meter, test results may be transferred to a PC running FlexReports PC software. Illuminate your network and report in real-time using AFL’s FlowScout OLS8!
Features:
- Large color touchscreen with icon-driven user interface
- Rugged & dependable
- Wave ID generation for reduced test time and user errors
- Field-replaceable connector adapters for maximum flexibility
- AFL’s FlexReporter™ Test Results Manager integration (via OPM8)
Specifications:
| Wavelength | 1310 ±20 nm 1490 ±20 nm 1550 ±20 nm |
| Spectral Width | 5 nm (max) |
| Emitter Type | Laser |
| Safety Class | Class I FDA 21 CFR 1040.10 and 1040.11, IEC 60825-1: 2007-03 |
| Output Power | -1 dBm, 9 μm single-mode |
| Output Stability | ±0.05 dB over 1 hour (after 15 minutes warm-up) ±0.1 dB over 8 hours (after 15 minutes warm-up) |
| Tone Output | 270 Hz, 330 Hz, 1 kHz, 2 kHz |
| Wave ID | Automatically detects and measures power & loss at one or more wavelengths using any AFL Wave ID source |
| GENERAL | |
| Available Adapters | SC FC, ST, LC |
| Power | 120/240 VAC input; 5VDC @2A output to USB-C |
| Battery | User replaceable Li-Pol; IEC 62133-2:2017 and UN38.3 certified |
| Operating Time | 10 hours continuous use |
| Recharge Time | ≤3 hours |
| Data Interfaces | USB-C |
| Operating Temperature | -10 °C to +50 °C, 95% RH (non-condensing) |
| Storage Temperature | -30 °C to +60 °C, 95% RH (non-condensing) |
| IP Rating | IP54 |
| Shock & Vibration | Withstands 1 m drop test on all 6 sides |
| Data Storage | Non-volatile memory for field-updateable software and results storage |
| Display | 3.5 in. color backlit LCD; capacitive touchscreen; 320 X 480 pixels |
| Size (H x W x D) | 14.0 x 8.1 x 3.3 cm (5.5 x 3.2 x 1.3 in) |
| Weight | ≤290 g (≤0.65 lb) |
| Calibration | N.I.S.T. traceable;≥ 3 years between required re-calibration |
