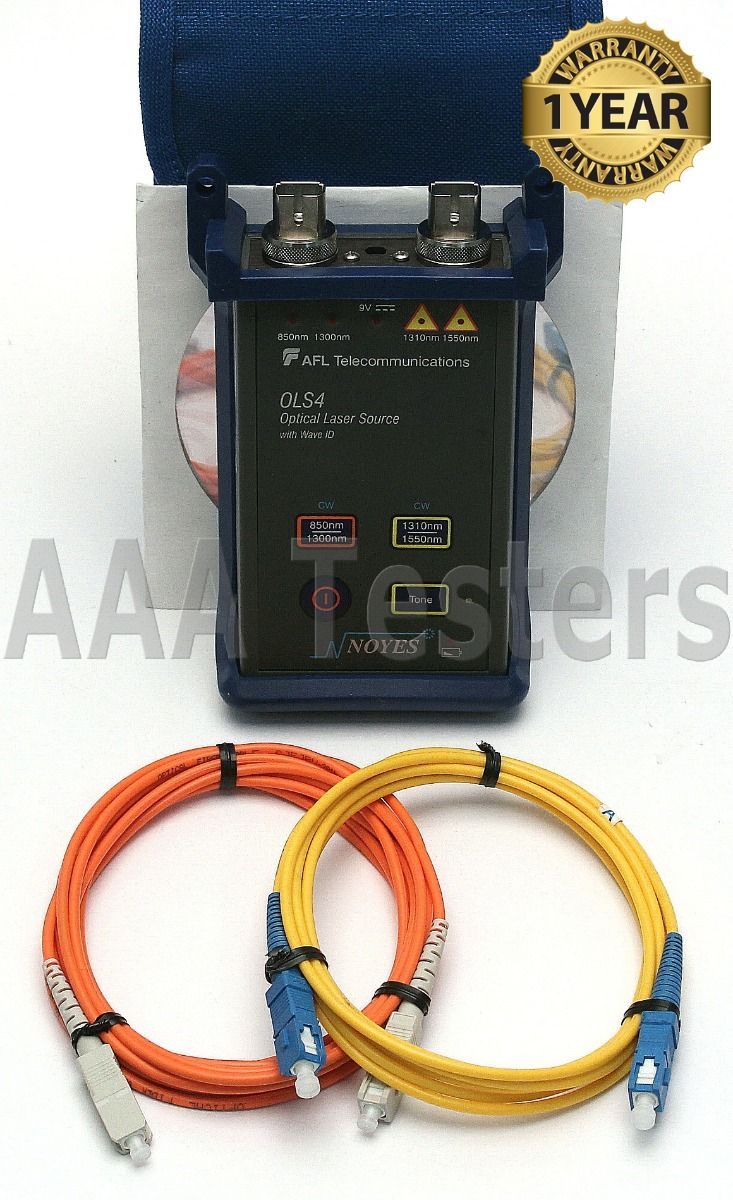

AFL OLS4-EF SM MM Encircled Flux Compliant Fiber Optic Light Source
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- Noyes OLS 4-EF Encircled Flux SingleMode MultiMode Quad Fiber Light Source (BC# -L/T*)
- SM Source:
- 1310nm
- 1550nm
- MM Source:
- 850nm
- 1300nm
- SM Source:
- Carrying Case (G)
AFL OLS4-EF SM MM Encircled Flux Compliant Fiber Optic Light Source
Designed for use in outside plant environments
AFL OLTS are extremely rugged and withstand one-meter drops, have
splash resistant controls that are easy to use with gloves on, and the
field-swappable connector adapters provide flexibility and access for cleaning
optical ports at time of test.
Test faster with fewer errors
AFL’s Wave ID increases test speed by performing simultaneous multi-wavelength
testing that cuts loss measurement time in half or more. AFL’s automatic
wavelength identification eliminates setup errors and simplifies coordination
between users at opposite ends of fibre.
Features:
- EF Complaint light sources and test kits per TIA 526-14-B and IEC 61280-4-1 Ed. 2.0
- EF Compliant by design – no additional equipment required
- Wave ID for error free testing of multiple wavelengths simultaneously
Applications:
- MMF and SMF testing requiring EF Compliant equipment
- Passive Optical Network (PON) testing
- Certify multimode and single-mode links to TIA/EIA standards
Specifications:
| Wavelength | 850 ±30 nm 1300 +30/-20 nm 1310 ±20 nm 1550 ±20 nm |
| Spectral Width | 45 nm (typ) 120 nm (typ) 5 nm (max) 5 nm (max) |
| Emitter Type | MM: LED SM: Laser |
| Safety Class | Class I FDA 21 CFR 1040.10 and 1040.11, IEC 60825-1: 2007-03 |
| Output Power | ≥ -24 dBm, 50 μm multimode 0 dBm, 9 μm single-mode |
| Output Stability | ±0.1 dB over 8 hours ±0.05 dB over 1 hour (after 15 minutes warm-up) ±0.1 dB over 8 hours (after 15 minutes warm-up) |
| Tone Output | MM: N/A SM: 2 kHz |
| Power | 2 AA Batteries |
| Operating temperature | -10 °C to 50 °C, 90 % RH (non-condensing) |
| Storage temperature | -30 °C to 60 °C, 90 % RH (non-condensing) |
| Size | 14.0 x 8.1 x 3.8 cm (5.5 x 3.2 x 1.5 in) |
| Weight | 0.29 kg (0.65 lb) |
